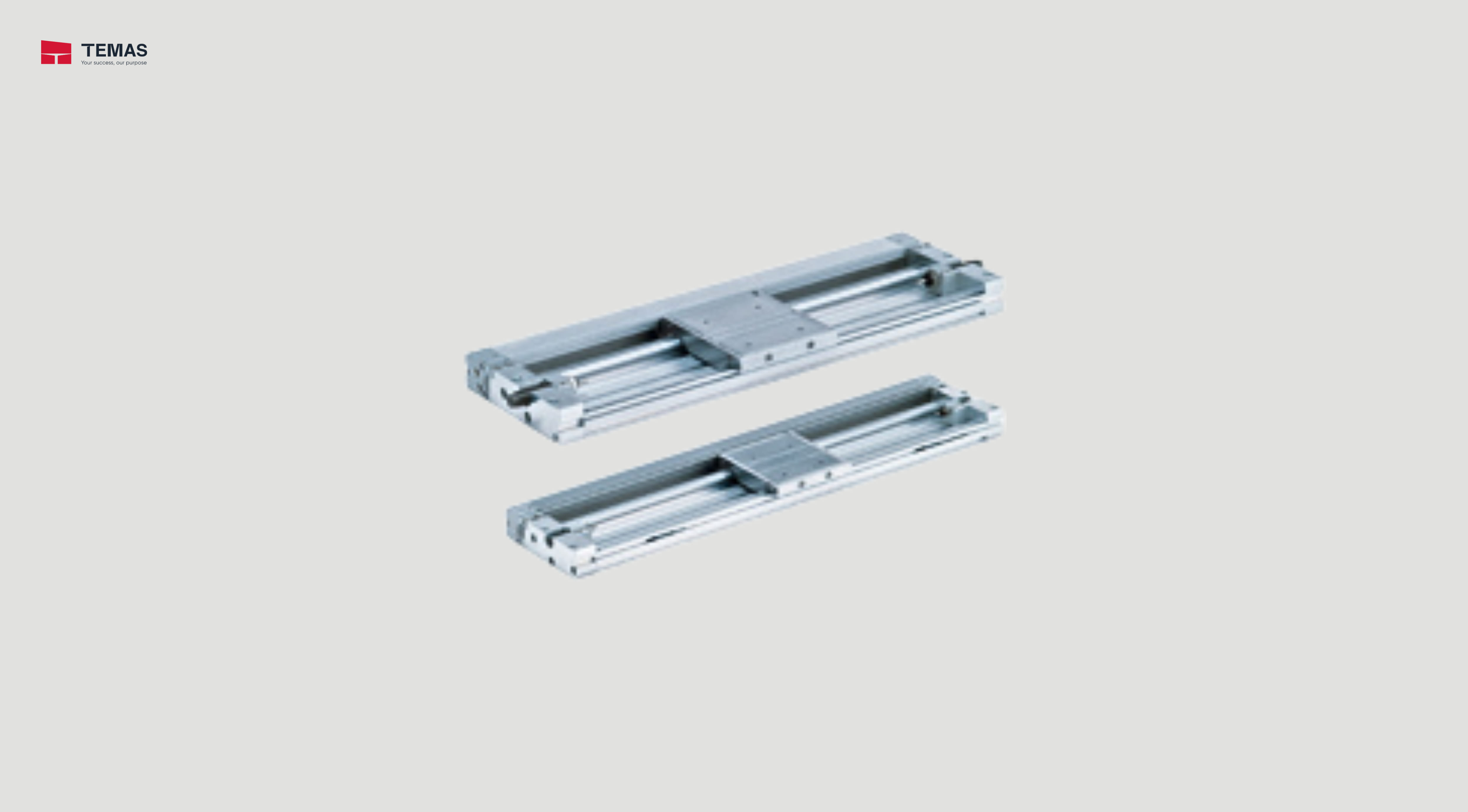

MECHANICALLY JOINTED RODLESS CYLINDER SMC MY2

Mechanically Jointed Rodless Cylinder Cam Follower Guide Type MY2 Series Bore size ø16, ø25, ø40

Technical Information

Type Series Action Bore size (mm)
Cam follower guide MY2C Double acting 16，25，40
Linear guide MY2H Double acting 16，25，40
Linear guide MY2HT Double acting 16，25，40
Specifications MY2
Bore size (mm) 16 25 40
Fluid Air
Action Double acting
Operating pressure range 0.15 to 0.8 MPa 0.1 to 0.8 MPa
Proof pressure 1.2 MPa
Ambient and fluid temperature 5 to 60°C
Cushion Air cushion, Shock absorber
Lubrication Not required (Non-lube)
Stroke length tolerance

1000 or less +1.8 mm

1001 to 3000 +2.8 mm

 2700 or less +1.8 mm, 2701 to 5000 +2.8 mm
Port size M5 x 0.8 Rc 1/8 Rc 1/4
