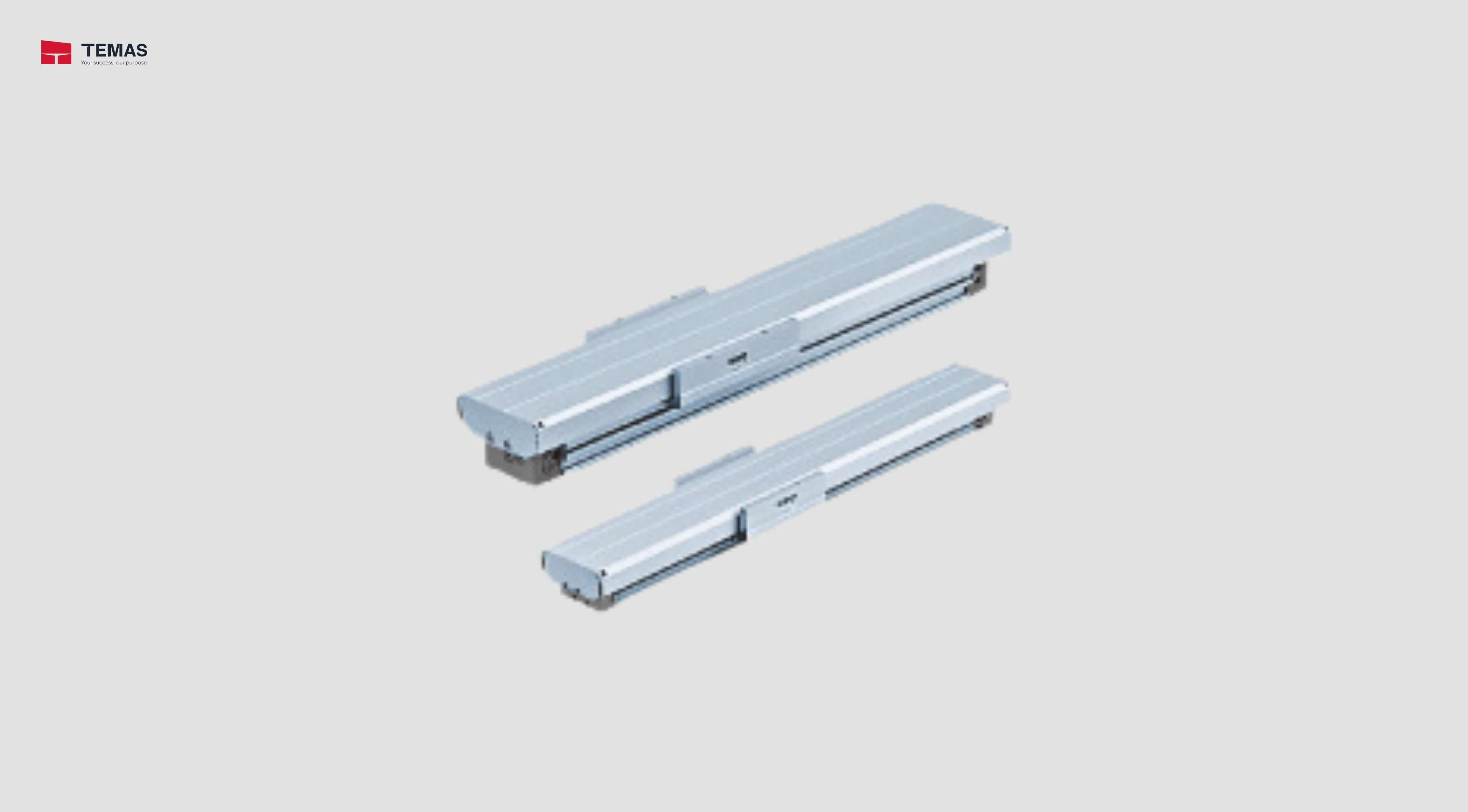

Mechanically Jointed Rodless Cylinder with Protective Cover Slide Bearing Guide Type, Cam Follower Guide Type MY1-W Series Bore size: ø16, ø20, ø25, ø32, ø40, ø50, ø63

MECHANICALLY JOINTED RODLESS CYLINDER WITH COVER SMC MY1W

Dustproof and water resistant features are improved for using in locations where the cylinder is exposed to powder dust and water drop or splash.
Side seals provide greater lateral dustproof and water resistance.
The cover in no way interferes with the installation of base cylinder option.
Cover units and side seal units can be installed on the already current MY1M/MY1C series.
Protective cover only minimally adds to overall length.
Water-resistant solid state switches can be mounted.

download Request a quotation

Technical Information

Type	Series	Action	Bore size (mm)
Slide bearing	MY1MW	Double acting	16，20，25，32，40，50，63
Cam follower guide	MY1CW	Double acting	16，20，25，32，40，50，63

Specifications		MY1W
Bore size [mm]		16	20	25	32	40	50	63
Fluid		Air
Action		Double acting
Operating pressure range	MY1MW	0.2 to 0.8 MPa		0.15 to 0.8 MPa
Operating pressure range	MY1CW	0.15 to 0.8 MPa		0.1 to 0.8 MPa
Proof pressure		1.2 MPa
Ambient and fluid temperatures		5 to 60°C
Cushion		Air cushion
Lubrication		Non-lube
Stroke length tolerance		1000 or less +1.8 mm 1001 to 3000 +2.8 mm	2700 or less +1.8 mm, 2701 to 3000 +2.8 mm
Piping port size	Front/Side port	M5 x 0.8		Rc 1/8		Rc 1/4	Rc 3/8
Piping port size	Bottom port	ø4		ø6		ø8	ø10
