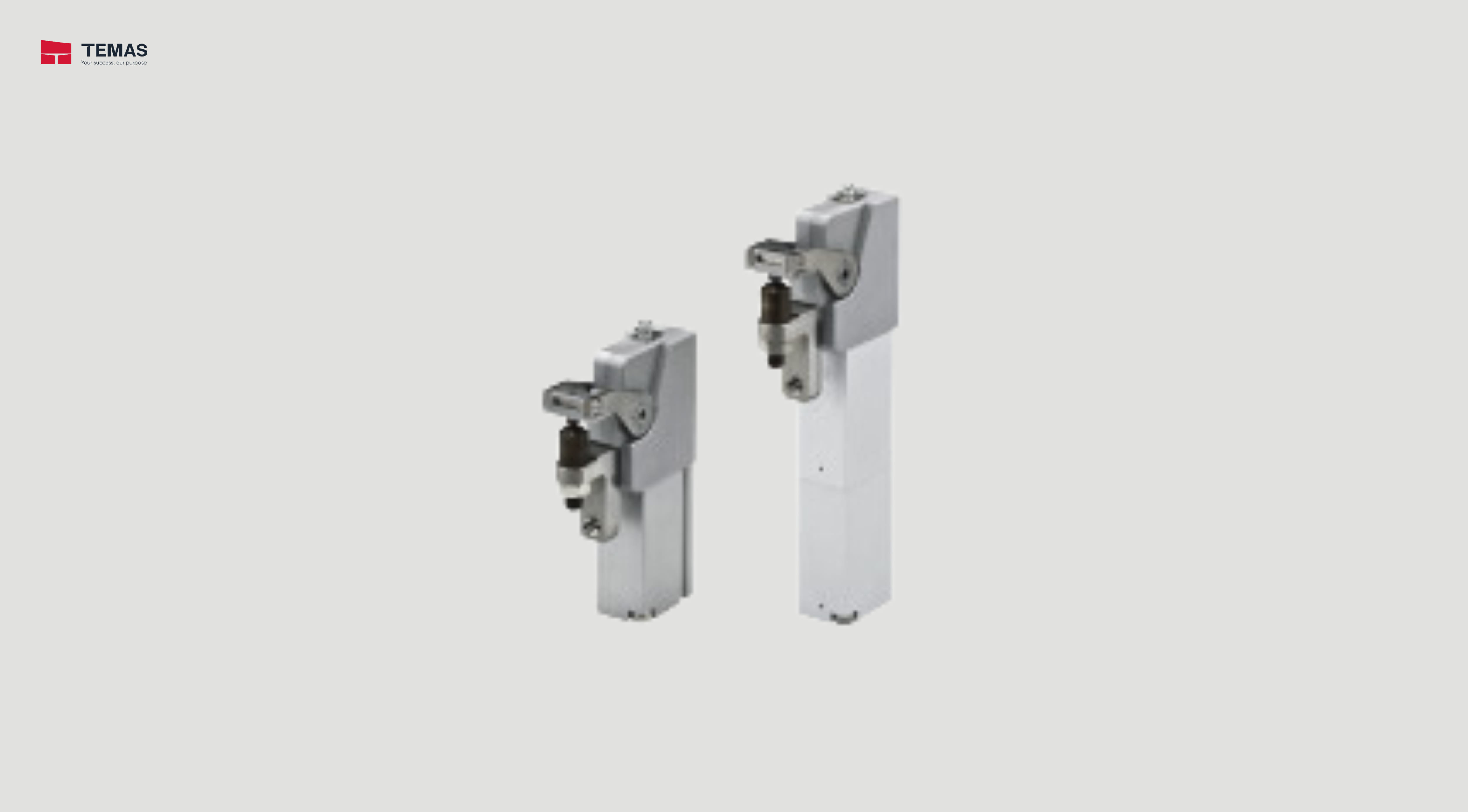

MICRO CLAMP CYLINDER CKZM16-X2800, X2900

Pin Plate Cylinder Base Type and Tandem Type SMC C(L)KU32-X2359A

Technical Information

Type Series Action Arm opening angle Bore size (mm)
Base type CKZM16-X2800 Double acting 68º 16
Tandem type CKZM16-X2900 Double acting 68º 16
Type  Base type (-X2800)  Tandem type (-X2900)
Operating pressure  0.2 to 0.6 MPa
Appropriate workpiece thickness range  3.5 mm or less
Maximum holding force*1  300 N
Cylinder bore size  16 mm
Cylinder stroke  27 mm  25 mm x 2
Arm length  25 mm
Arm opening angle  68 degrees
Clamping force  Refer to page 9.
Appropriate workpiece insert length  8 mm (Refer to page 10.)  8 mm (Refer to page 11.)
Weight  250 g  330 g
