MINIATURE GUIDE ROD CYLINDER SMC MGJ

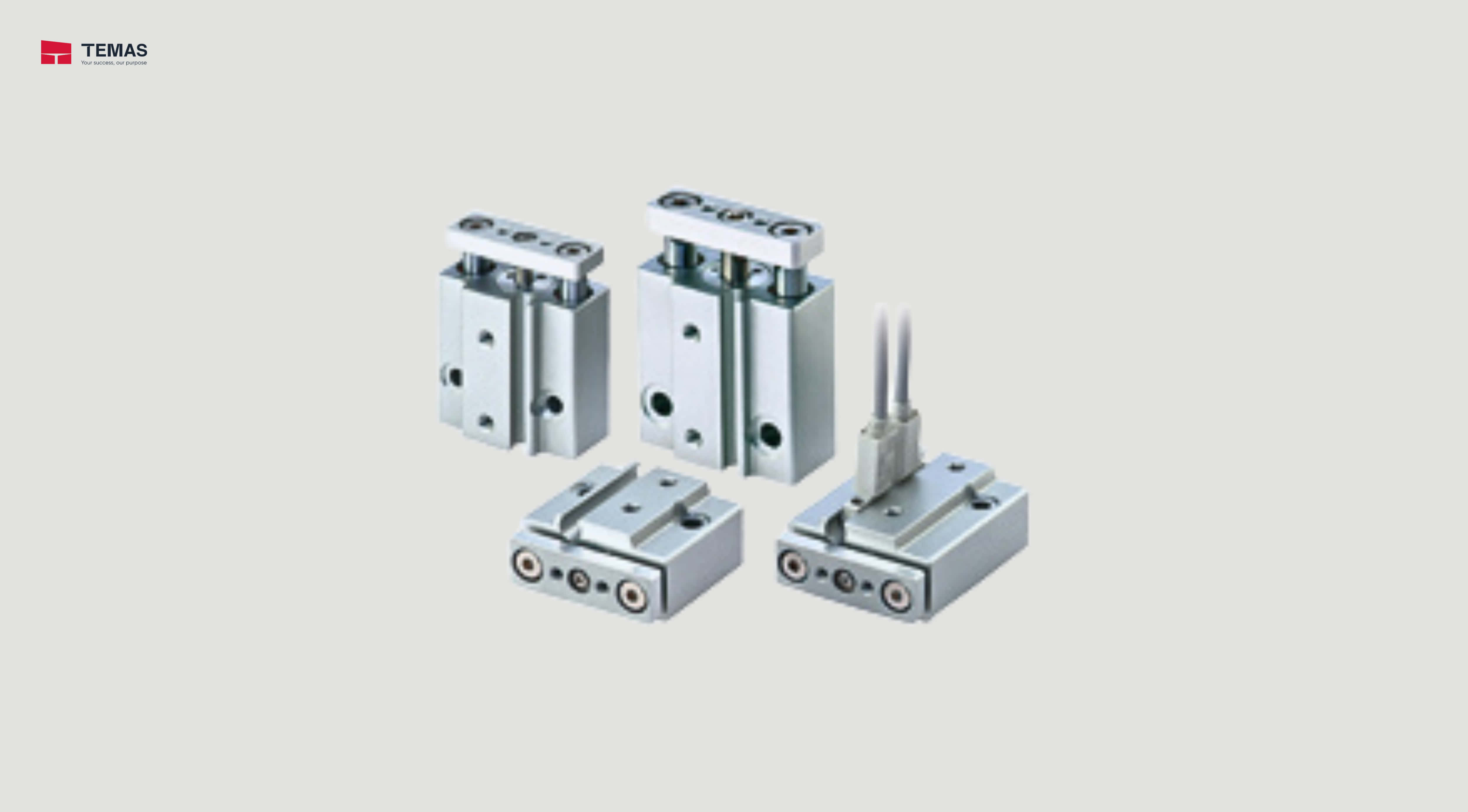

Miniature Guide Rod Cylinder MGJ Series Bore size: ø6, ø10

Technical Information

Specifications MGJ
Bore size (mm) 6 10
Action Double acting
Fluid Air
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.15 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Cushion Rubber bumper at both ends
Lubrication Non-lube
Piston speed 50 to 500 mm/s
Stroke length tolerance +1 mm
Port size M3 x 0.5
Guide size ø5 ø6
