| Model | TM-NAMEPLATE-01 | |
| Technical Information | Laser technology | Fiber |
| Laser power | 20W /30W /50W | |
| Operating temperature | 10°C to 40°C (50 to 104 F) | |
| Storage temperature | 5°C to 45°C (41 to 113 F) | |
| Input Voltage | 100-240 VAC / 50-60Hz | |
| Marking Information | Nameplate Size |
65 mm (2.56 in) x 65 mm (2.56 in) |
| Speed | 10 000 mm/s | |
| Font |
60 standard traceability fonts Other custom fonts |
|
| Barcode |
Code 39 / Code 128 / Code 93 / Code 11 Codabar / 2 of 5 / EAN13 / EANB |
|
| 2D code |
DataMatrix ECC200 QR code Micro QR code UID |
|
| Logo |
LO3 Format - Converted via Logo Editor Max software (BMP, DXF, EPS, IGES, JPEG, PNG, TIFF, etc) |
|
| Variable (date, time, counter) | Build as required | |
| Materials | Sheet metal or nonmetal | |
| Thickness | From 0.1 mm | |
| Production mode | Continuous - Intermittent - Repeat | |
| Connect | PC or HMI | Yes |
| Other | Vision manager | Yes |
| Fume extractor | Yes | |
| ERP system integration | Yes | |
| Extensive connection (Ethernet, IP, Profinet) | Yes |

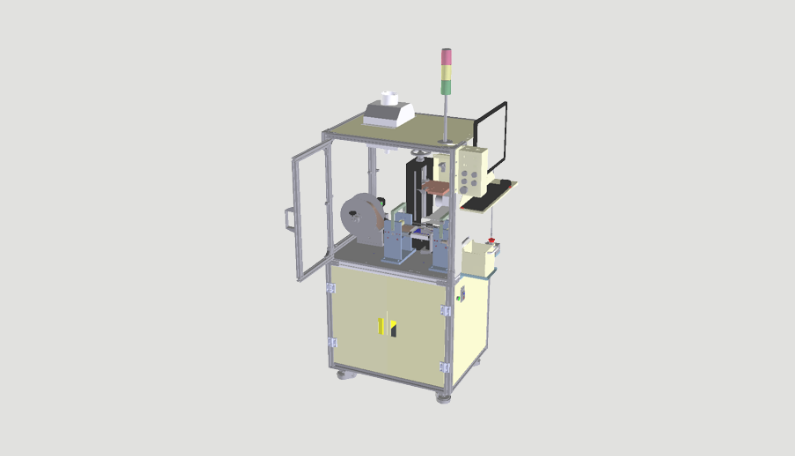

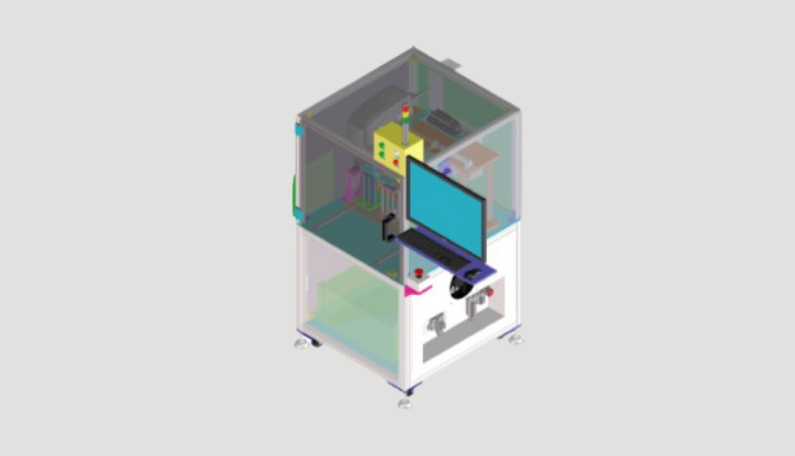

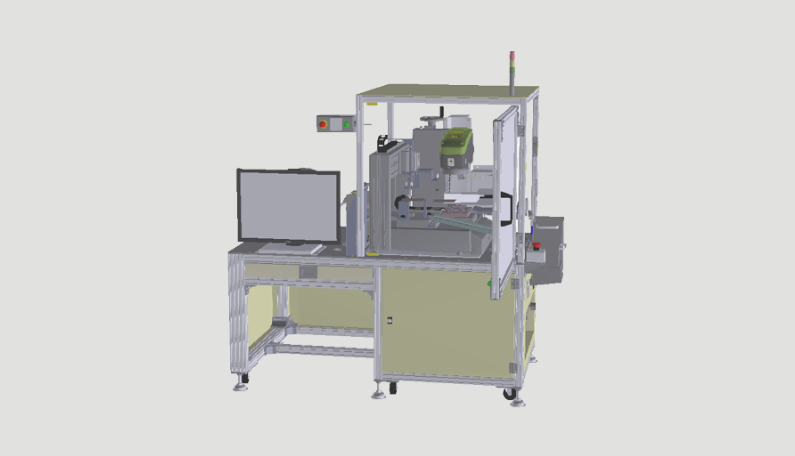

Models
| Model | TM-NAMEPLATE-01 | TM-NAMEPLATE-02 | TM-NAMEPLATE-03 |
| Size |
1.650 (H) x 750 (W) x 880 (D) mm |
1.550 (H) x 750 (W) x 1.650 (D) mm | 1.650 (H) x 750 (W) x 880 (D) mm |
| Product | Sheet workpiece | Sheet and coiled workpieces | Coiled workpiece |
