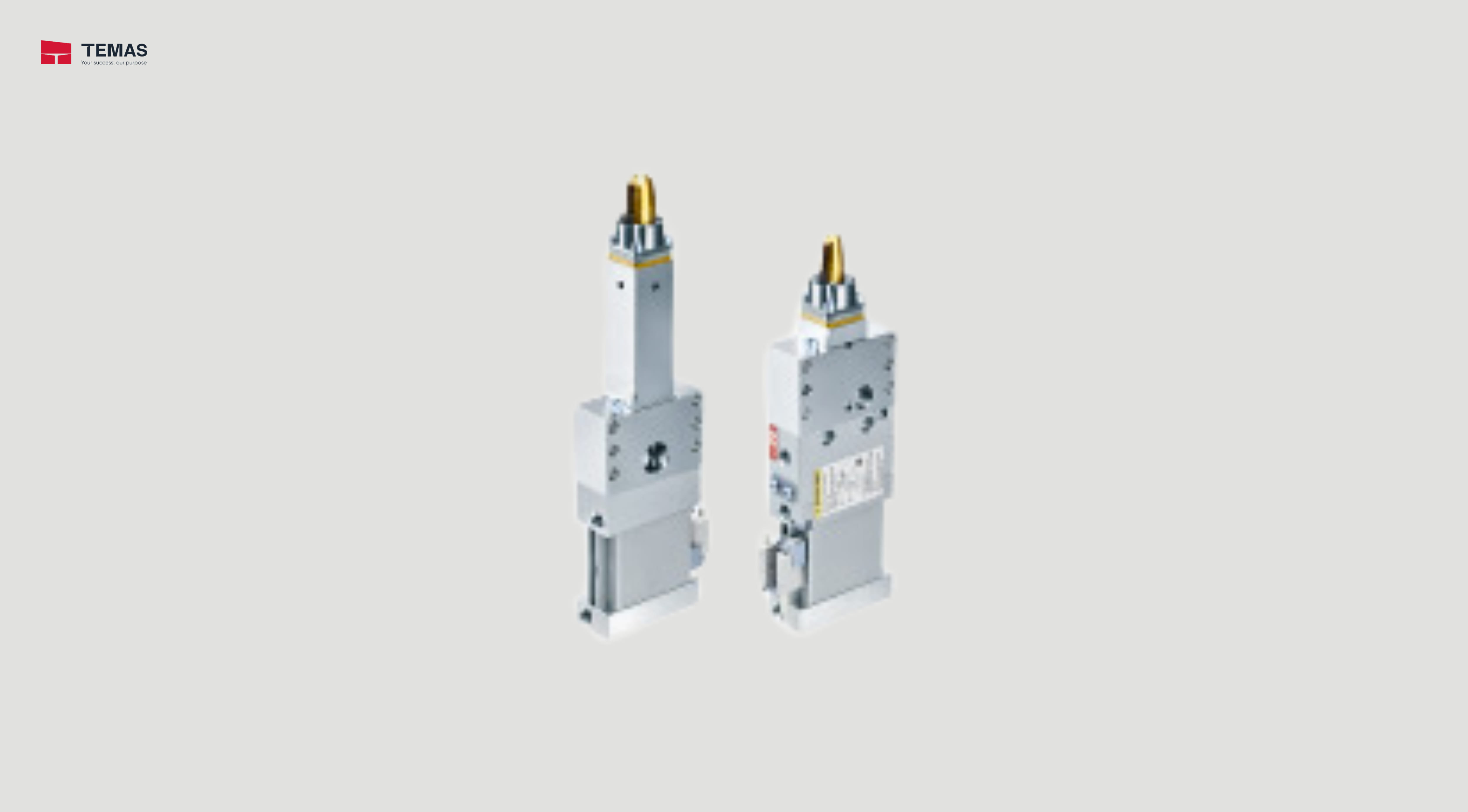

KQG32, C(L)KU32/Temas-SMC-CLKU32-1.jpg)
| Type | Series | Guide pin shape | Bore size (mm) |
|---|---|---|---|
| Compact cylinder Magnetic field resistant auto switch mounting type |
CKQG32-X2081/X2082 | Round Diamond |
32 |
| Compact cylinder with lock Magnetic field resistant auto switch mounting type |
CLKQG32-X2081/X2082 | Round Diamond |
32 |
| Plate cylinder Magnetic field resistant auto switch mounting type |
CKU32-X2091/X2092 | Round Diamond |
32 |
| Plate cylinder with lock Magnetic field resistant auto switch mounting type |
CLKU32-X2091/X2092 | Round Diamond |
32 |
| Plate cylinder Magnetic field resistant auto switch Small auto switch mounting type |
CKU32-X2321/X2322 | Round Diamond |
32 |
| Plate cylinder with lock Magnetic field resistant auto switch Small auto switch mounting type |
CLKU32-X2321/X2322 | Round Diamond |
32 |
| Model | C(L)KQG32, C(L)KU32 | |
|---|---|---|
| Action | Double acting | |
| Bore size (mm) | 32 equivalent | |
| Cylinder stroke/Clamp stroke (mm) | 12.5 (Without workpiece)/10 | |
| Fluid | Air | |
| Minimum operating pressure | CKQ: 0.1 MPa | CLKQ: 0.15 MPa |
| Maximum operating pressure | 0.7 MPa | |
| Ambient and fluid temperatures | −10 to 60°C (No freezing) | |
| Cushion | None | |
| Lubrication | Non-lube | |
| Piston speed (Clamp speed) | 50 to 150 mm/sec | |
| Port size (Cylinder port) | Rc1/8 | |
