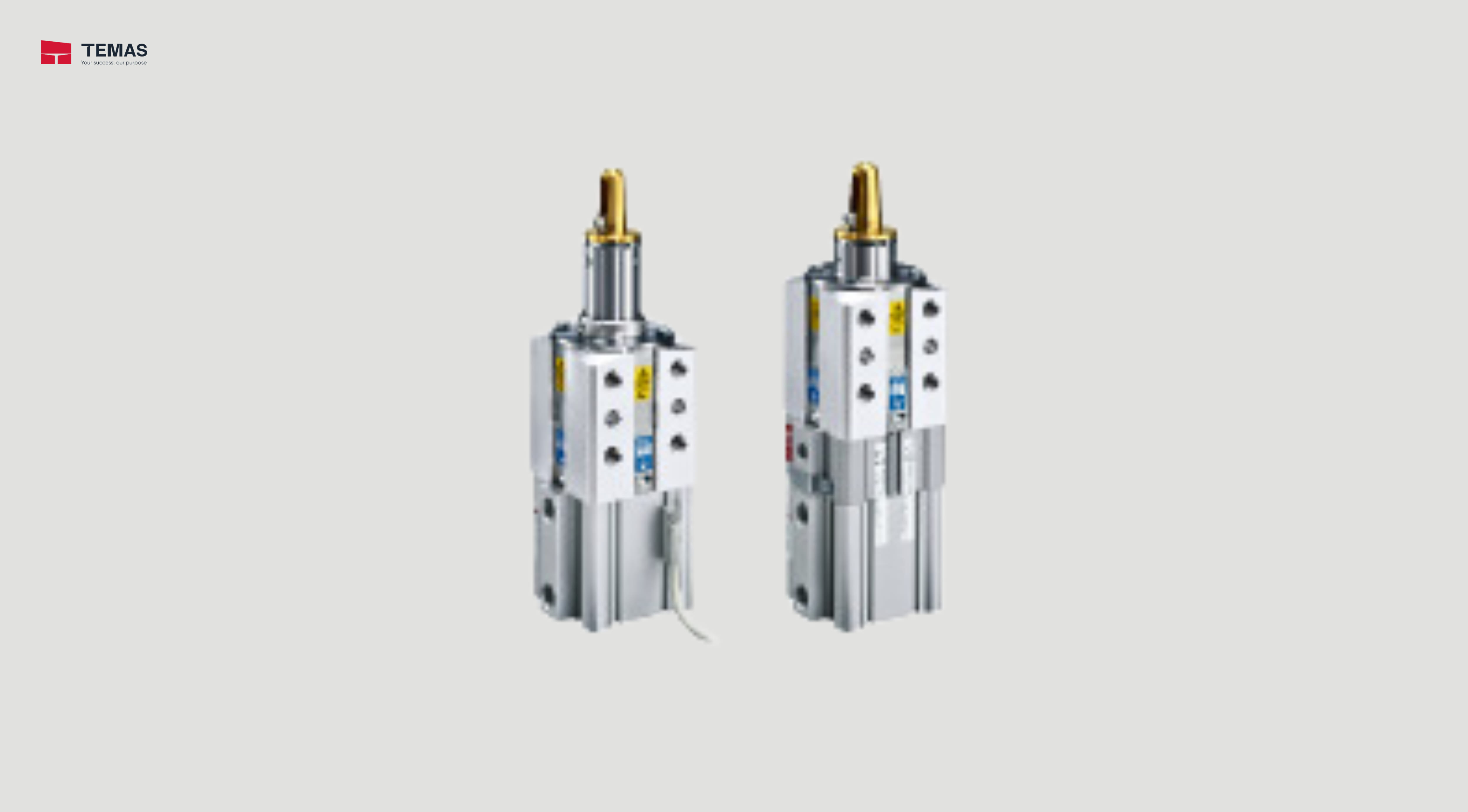

| Type | Series | Guide pin shape | Bore size (mm) |
|---|---|---|---|
| Standard (Built-in standard magnet) |
CKQG | Round Diamond |
50 |
| Standard (Built-in strong magnet) |
CKQP | Round Diamond |
50 |
| With lock (Built-in standard magnet) |
CLKQG | Round Diamond |
50 |
| With lock (Built-in strong magnet) |
CLKQP | Round Diamond |
50 |
| Model | C(L)KQG/C(L)KQP | |||
|---|---|---|---|---|
| Action | Double acting | |||
| Bore size [mm] | 50 mm | |||
| Fluid | Air | |||
| Minimum operating pressure | CKQ: 0.1 MPa | CLKQ: 0.15 MPa | ||
| Maximum operating pressure |
Guide pin diameter [mm] |
ø12.5 to ø13.0 | 0.7 MPa | |
| ø14.5 to ø30.0 | 1.0 MPa | |||
| Proof pressure |
Guide pin diameter |
ø12.5 to ø13.0 | 1.0 MPa | |
| ø14.5 to ø30.0 | 1.5 MPa | |||
| Ambient and fluid temperatures | −10 to 60°C (No freezing) | |||
| Cushion | None | |||
| Lubrication | Non-lube | |||
| Piston speed (Clamp speed) | 50 to 150 mm/s | |||
| Port size (Cylinder port) | 1/4 (Rc, NPT, G) | |||
