PLATE CYLINDER SMC MU, MDU

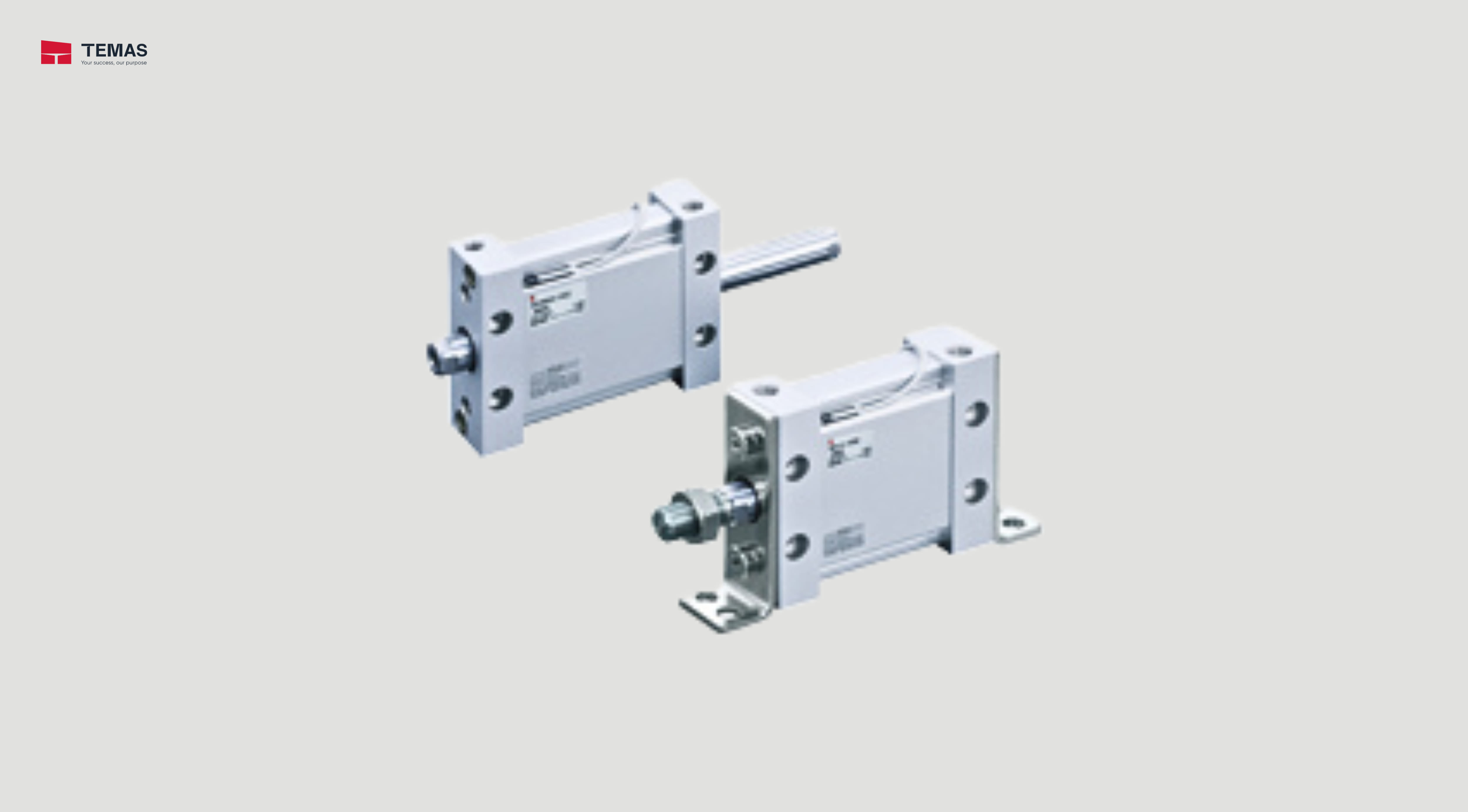

Plate Cylinder: Double Acting, Single Rod ø25, ø32, ø40, ø50, ø63 MU Series

Technical Information

Type Series Action Bore size (mm)
Standard MU-Z Double acting, Single rod 25，32，40，50，63
Standard MU-Z Single acting (Spring return/extend) 25，32，40，50，63
Standard MUW-Z Double acting, Double rod 25，32，40，50，63
Specifications MU, MDU
Bore size (mm) 25 32 40 50 63
Action Double acting, Single rod
Fluid Air
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.05 MPa
Ambient and fluid temperature –10 to 60°C
Lubrication Not required (Non-lube)
Piston speed 50 to 500 mm/s
Stroke length tolerance +1.4
Cushion Rubber bumper
Mounting Foot, Rod flange, Head flange, Single clevis, Double clevis
Rod end configuration Rod end male thread, Rod end female thread
Allowable rotational torque 0.25 N·m  0.55 N·m 1.25 N·m  2.0 N·m
Rod non-rotating accuracy ±1°  ±0.8° ±0.5°
