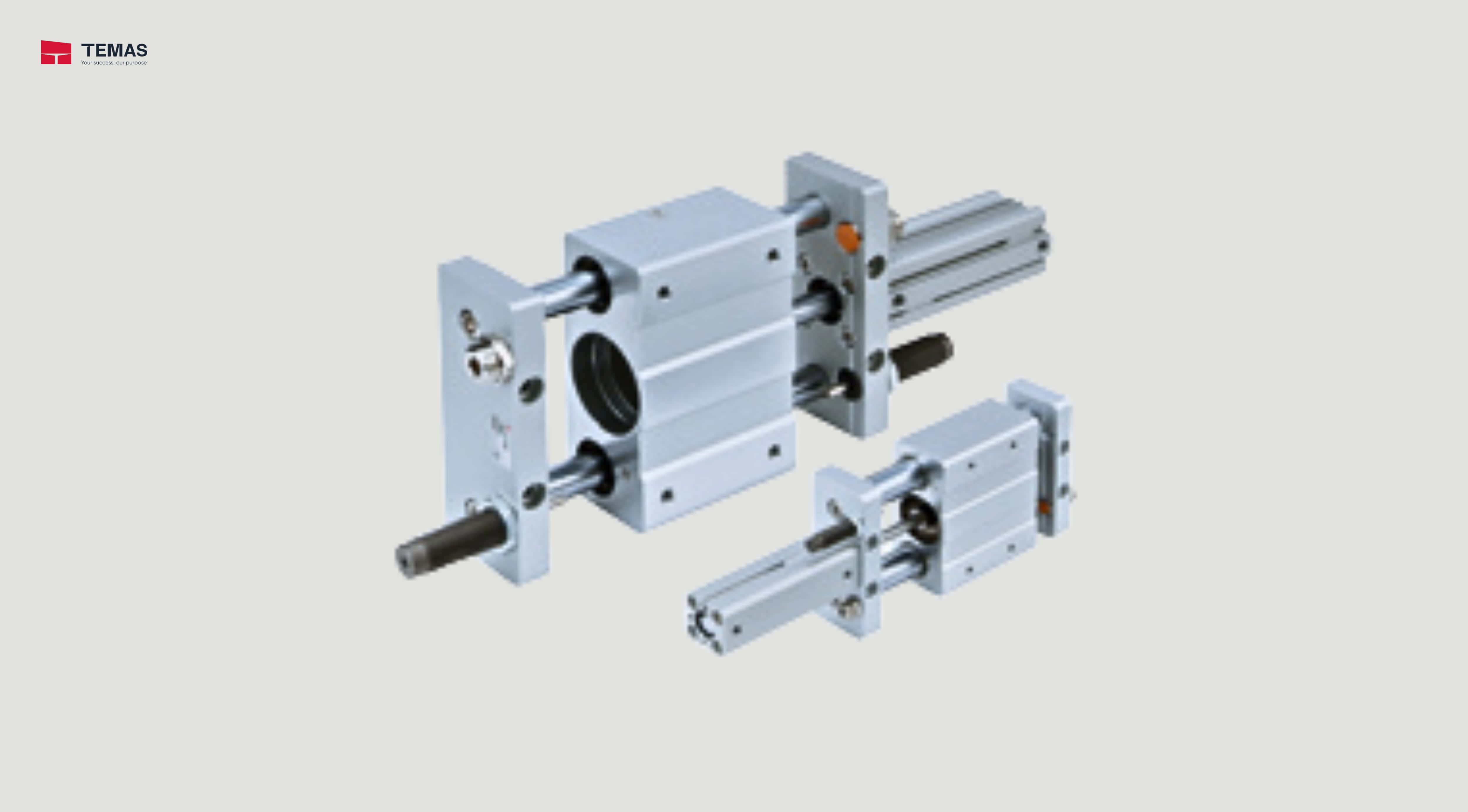

PLATFORM CYLINDER SMC CXT

Platform Cylinder CXT Series Bore size: ø12, ø16, ø20, ø25, ø32, ø40

Technical Information

Type Bearing Series Action Bore size (mm)
Standard Slide bearing CXTM Double acting 12，16，20，25，32，40
Standard Ball bushing bearing CXTL Double acting 12，16，20，25，32，40
Specifications CXT
Bore size [mm] 12 16 20 25 32
 40
Fluid Air
Action Double acting
Proof pressure 1.5 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.15 MPa
Ambient and fluid temperature

-10 to 60°C (No freezing)
Piston speed
50 to 500 mm/s
Cushion Bumper (Both ends/Standard), Shock absorber (Option)
Lubrication Not required (Non-lube)
Stroke adjusting range –10 mm (Extension end, Retraction end: –5 mm each)
