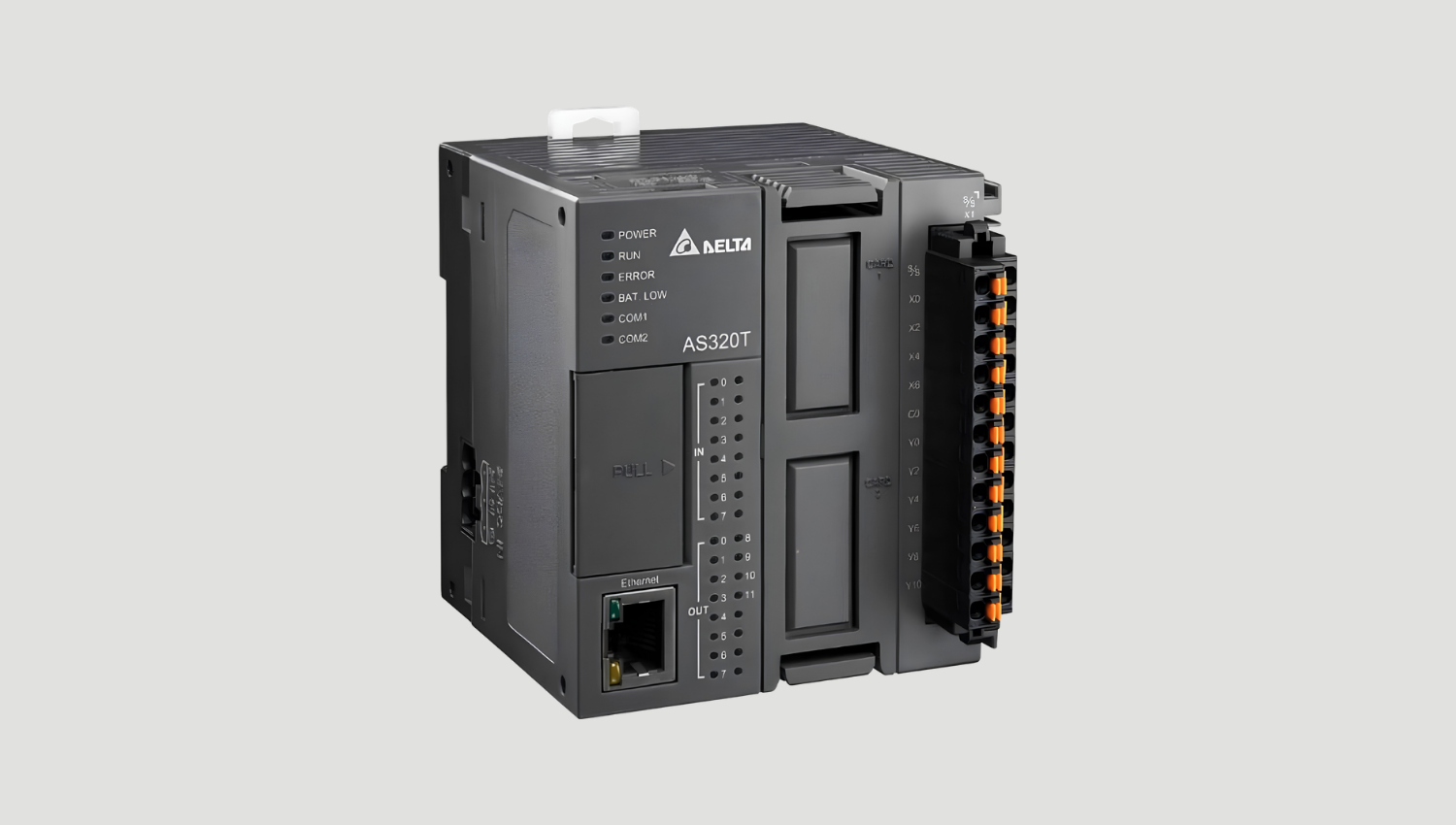

PLC DELTA AS320T-B

PLC DELTA AS320T-B features a Delta-developed 32-bit SoC CPU

Built-in I/O: 8 Digital Inputs (DI) and 12 Transistor Outputs (DO).
High-Speed Pulse Outputs: Supports up to 6-axis motion control with pulse output frequencies of up to 200 kHz.
High-Speed Inputs: Supports 4 High-Speed Counter (HSC) channels with frequencies of up to 200 kHz.
CPU: Delta-developed 32-bit SoC CPU with an execution speed of up to 40K steps/ms.
Expansion Capacity: Supports up to 32 expansion modules or a maximum of 1,024 I/O points.
Motion Control: Supports up to 8-axis positioning control via the CANopen motion network or up to 6-axis pulse control at 200 kHz, fully compatible with Delta AC Servo systems.

Technical Information

Model	PLC DELTA AS320T-B
Power Supply	24VDC
Digital Inputs	8 digital input trong đó High-speed counter : 4 CHs, 200kHz
Digital Outputs	12 Transistor output trong đó : 6 Axes, 200kHz(12 CHs, 200kHz)
CPU	32-bit SoC CPUs for enhanced execution speed
Maximum I/O Capacity	1024 points
Program Memory	128K Steps
Data Registers	60k words
Communication Interfaces	Tích hợp USB/RS-485×2/EtherNet
