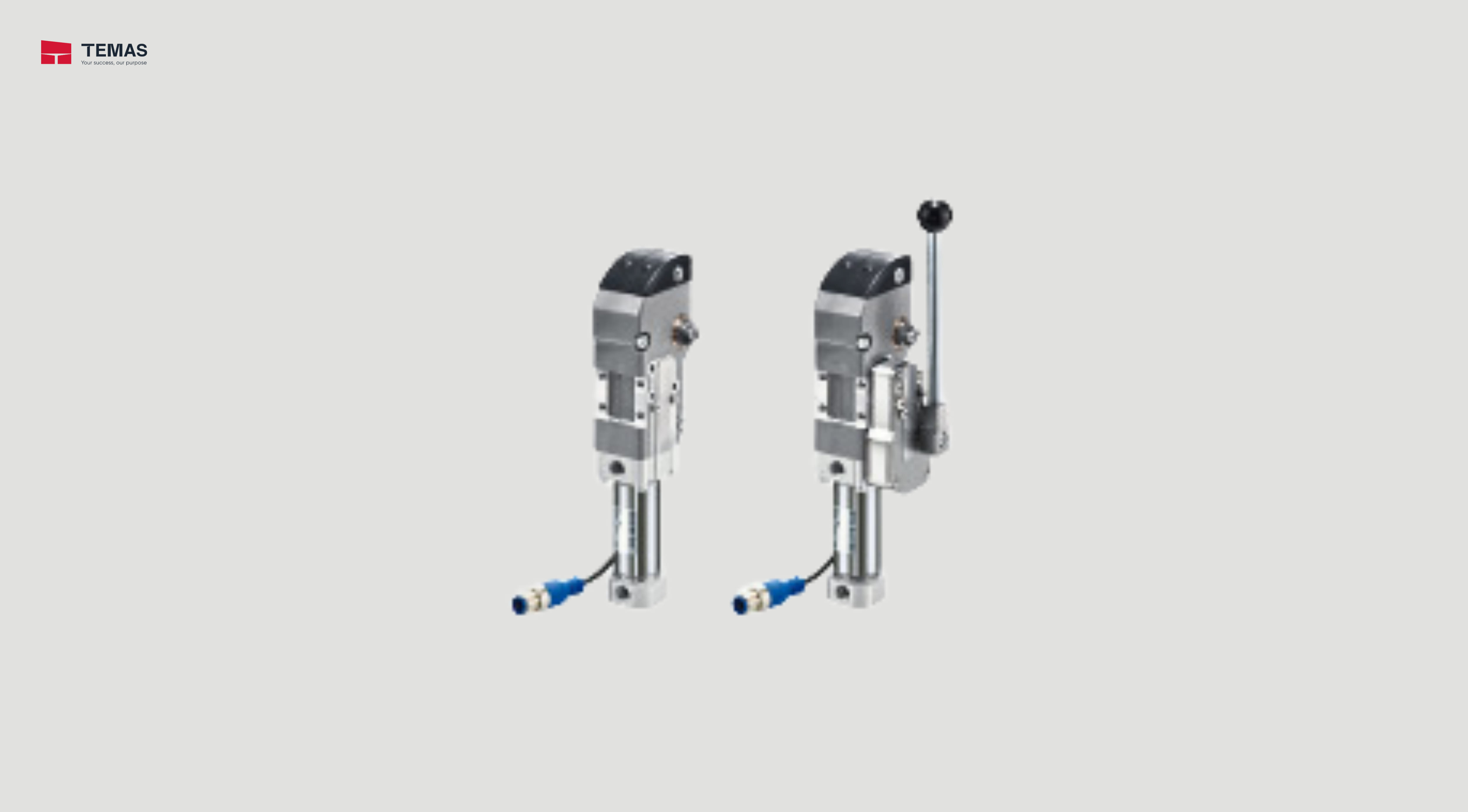

Power Clamp Cylinder Compact Type SMC CKZT-X2797 Bore size: ø25, ø32

Lightweight Weight : 580 g (ø25, Rubber cover)
Compact Width : 34 mm, Height : 192.4 mm (ø25, Arm opening angle: 90°, Rubber cover)
Clamping force : 1100 N (ø32, Arm length : 50 mm, 0.5 MPa pressure)
Force amplification with a toggle mechanism and lock function
Spatter-proof construction
Equipped with a proximity switch that can be used in welding magnetic fields
A model with a manually operated handle (lock specification) is available.
Selectable rubber or metal cover

Series	Arm opening angle	Switch	Bore size (mm)
CKZT-X2797 (Rubber cover) CKZT-X3064 (Metal cover) Base type	90º，105º	SENSTRONIC	25, 32
CKZT-X2798 (Rubber cover) CKZT-X3174 (Metal cover) With manually operated handle	90º，105º	SENSTRONIC	25, 32

Specifications	CKZT-X2797
Bore size	25	32
Action	Double acting
Fluid	Air
Proof pressure	1.2 MPa
Max. operating pressure	0.8 MPa	0.5 MPa
Min. operating pressure	0.3 MPa
Ambient and fluid temperatures	-10 to 60°C (No freezing)
Cushion	Clamping side: None Unclamping side: Rubber bumper
Operating time	Clamping: 1 sec. or more, Unclamping: 1 sec. or more
Max. allowable holding moment*1	75 N·m
