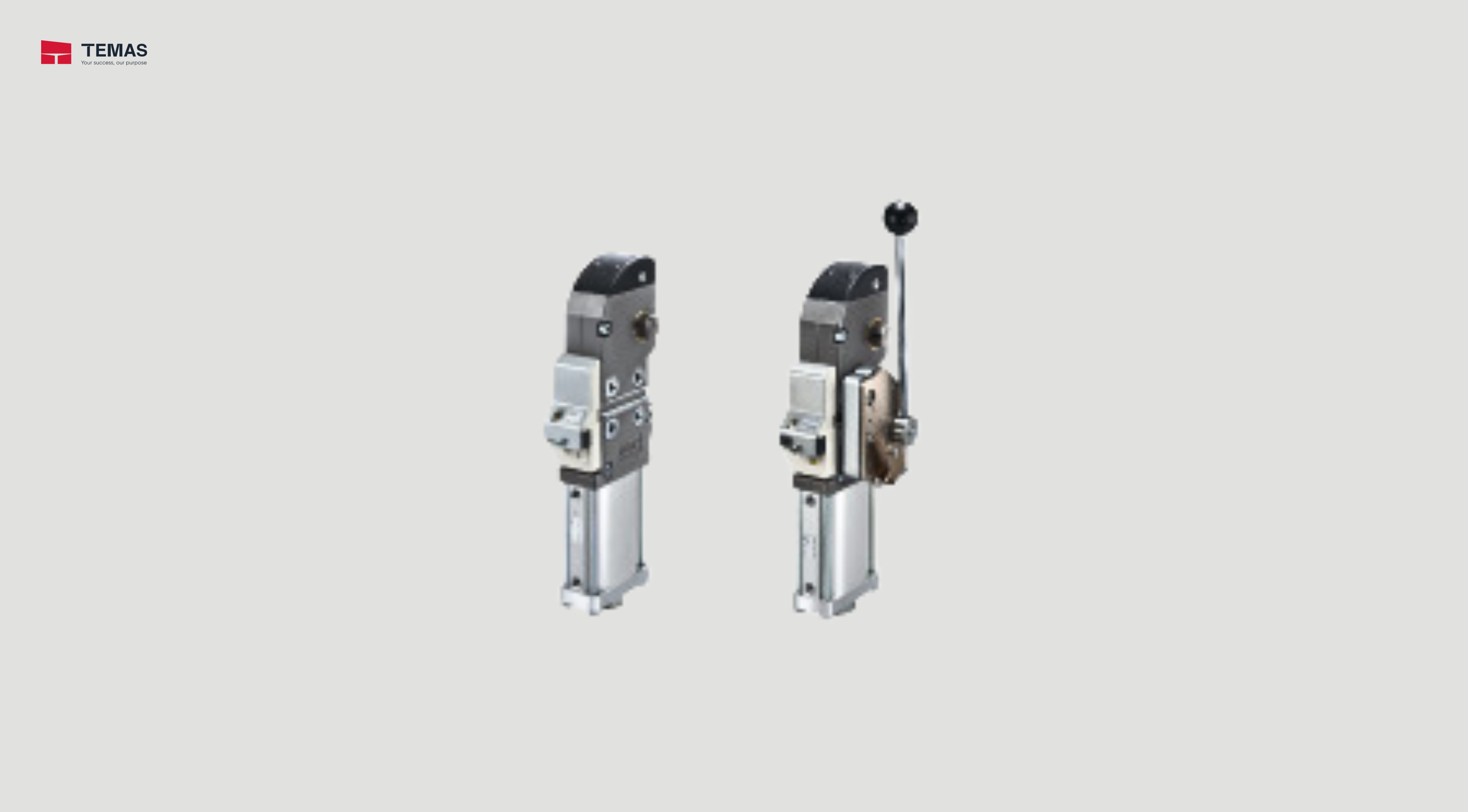

POWER CLAMP CYLINDER SMC CKZ3T-X2734, CKZ3T-X2568

Power Clamp Cylinder CKZ3T-X2734, CKZ3T-X2568 bore size: ø50, ø63

Technical Information

Series Arm opening angle Switch Bore size (mm)
CKZ3T-X2734 15º, 30º, 45º, 60º, 75º, 90º, 105º, 120º, 135º TURCK/P&F 50，63
CKZ3T-X25688m
(With manually operated handle)		 15º，30º，45º， 60º，75º，90º，105º，120º TURCK/P&F 50，63
Specifications CKZ5T
Bore size  50 63
Action  Double acting
Fluid  Air
Proof pressure  1.2 MPa
Max. operating pressure  0.8 MPa
Min. operating pressure  0.3 MPa
Ambient and fluid temperatures  -10 to 60°C (No freezing)
Cushion Clamping side: None
Unclamping side: Rubber bumper
Operating time  Clamping: 1 s or more, Unclamping: 1 s or more
Max. allowable holding moment*1  800 N·m  1500 N·m
