POWER CLAMP CYLINDER SMC CKZ5T

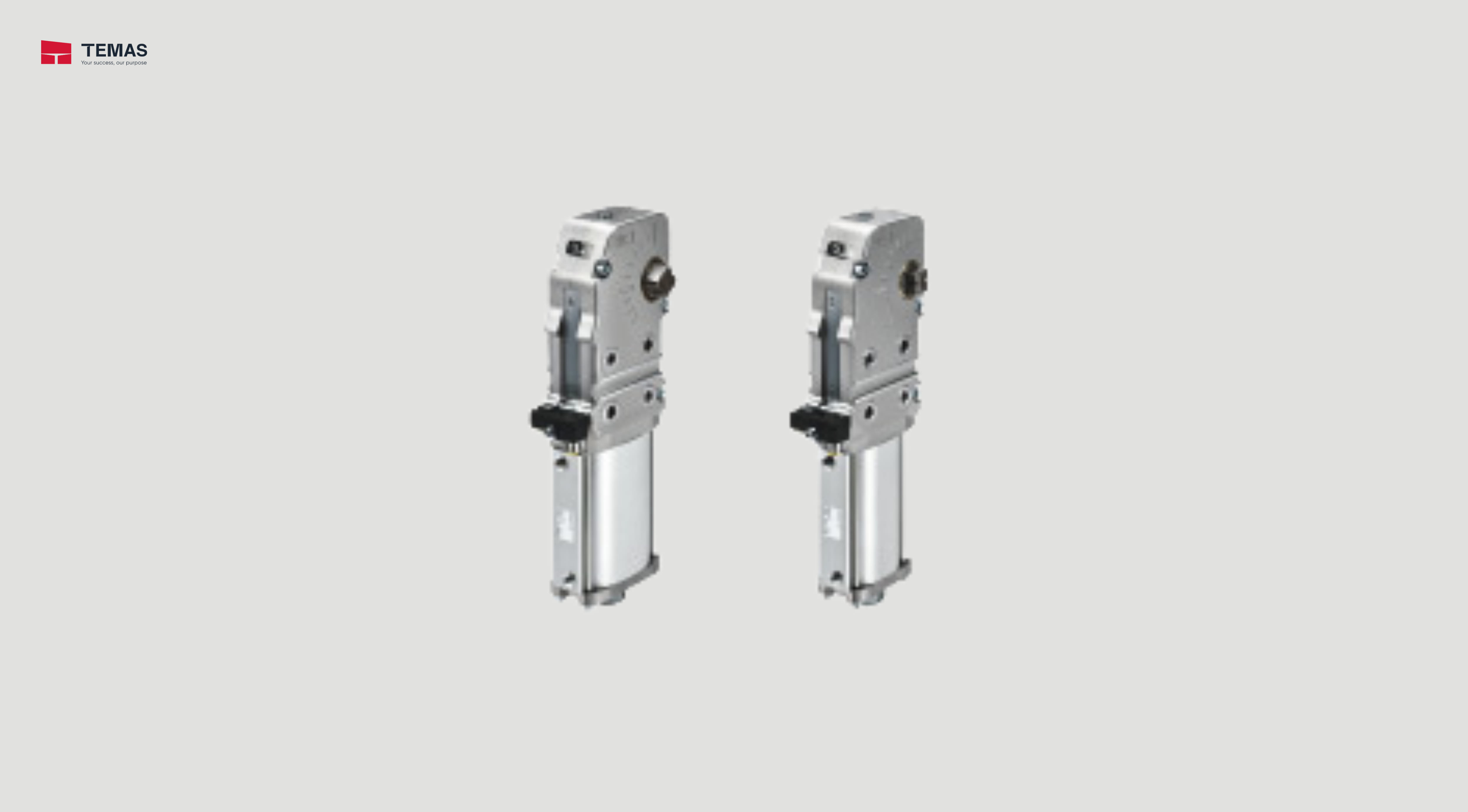

Power Clamp Cylinder SCM CKZ5T Bore size ø50, ø63


Technical Information

Series Arm opening angle Switch Bore size (mm)
CKZ5T 15º，30º，45º，60º，75º，90º，105º，120º，135º TURCK/P&F 50，63
Specifications CKZ5T
Bore size  50 63
Action  Double acting
Fluid  Air
Proof pressure  0.9 MPa
Max. operating pressure  0.6 MPa
Min. operating pressure  0.3 MPa
Ambient and fluid temperatures  -10 to 60°C (No freezing)
Cushion Clamping side: None
Unclamping side: Rubber bumper
Operating time  Clamping: 1 s or more, Unclamping: 1 s or more
Max. allowable holding moment*1  800 N·m  1500 N·m
