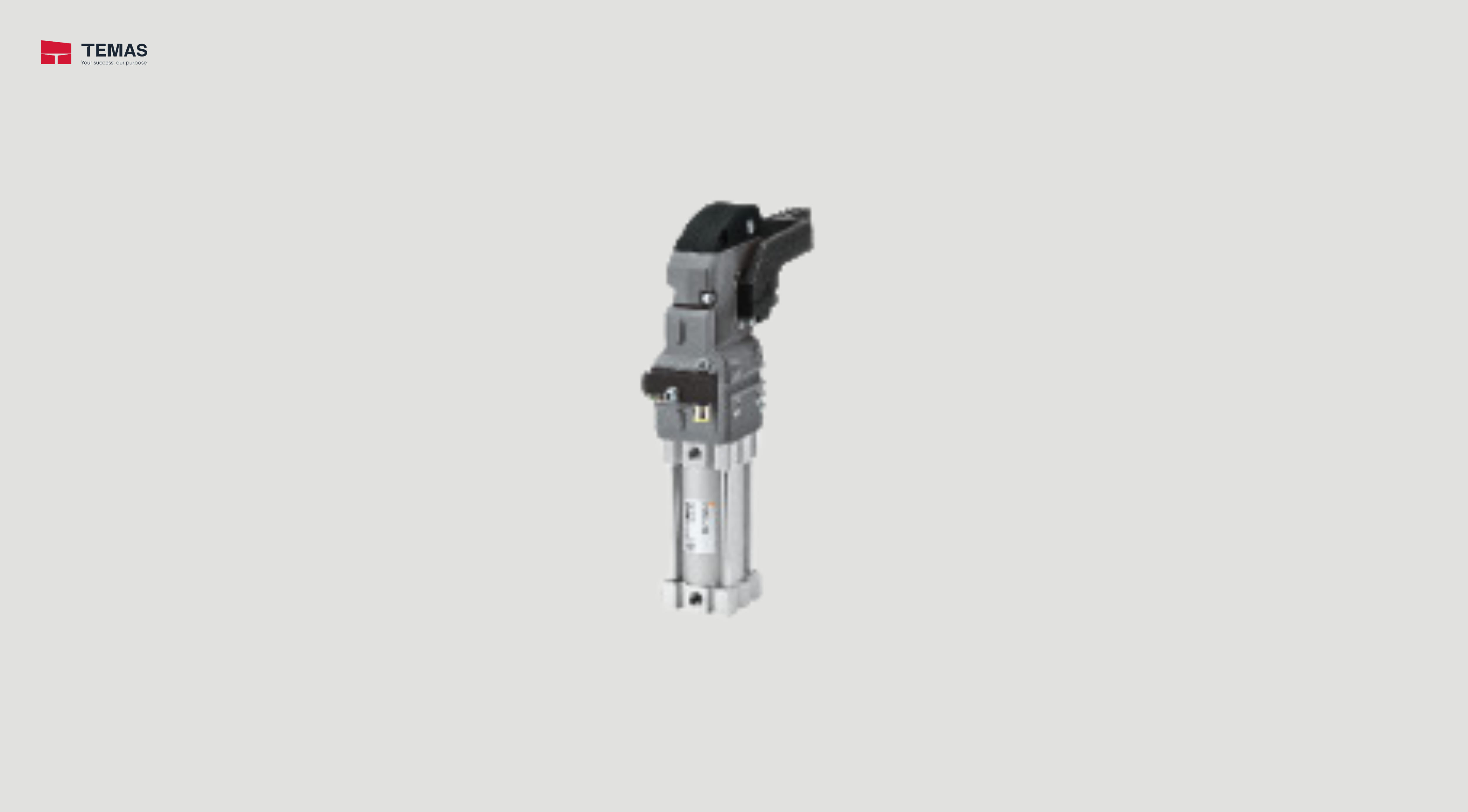

POWER CLAMP CYLINDER SMC CKZT40 SERIES

Power Clamp Cylinder SMC CKZT40 Series Bore size: ø40mm

Technical Information

Series Arm opening angle Switch Bore size (mm)
CKZT 30º, 45º, 60º, 75º, 90º
105º, 120º, 135º		 TURCK/P＆F 40
Specifications CKZT40
Bore size [mm]  40
Action  Double acting
Fluid  Air
Proof pressure  1.2 MPa
Max. operating pressure  0.8 MPa
Min. operating pressure  0.3 MPa
Ambient and fluid temperatures  -10 to 60°C
Cushion Clamping side: None
Unclamping side: Rubber bum
Operating time  Clamping: 1 s or more, Unclamping: 1 s o
Max. allowable holding moment*1  380 N·m
