Technical Information

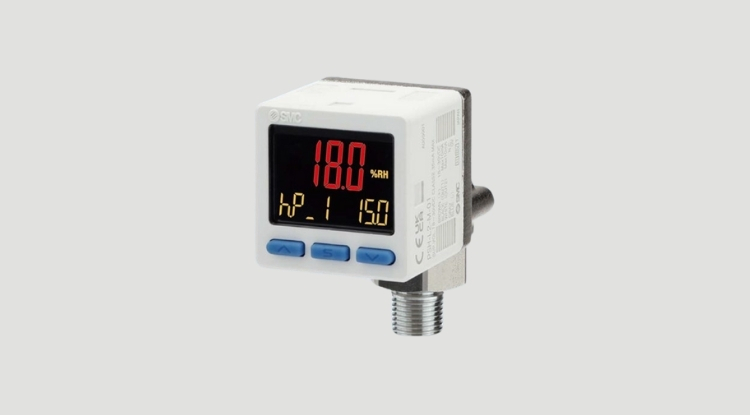

Model PSH
Applicable fluid  Air, Non-corrosive gas
Temperature Rated temperature range  0 to 50°C
Display and Set temperature range −5 to 55°C
Operating pressure range 0.1 to 1 MPa
Power
supply
Power supply voltage 18 to 30 VDC (Including ripple)
Current consumption 35 mA or less
Accuracy Temperature display accuracy ±3°C
Relative humidity display accuracy ±5% R.H.
Relative humidity analog output accuracy ±5.5% R.H.
Switch Output type NPN or PNP open collector output.
Output mode Hysteresis mode, Window comparator mode, Error output
Display Display type LCD
Number of screens 3-screen display (Main screen, Sub screen x 2)

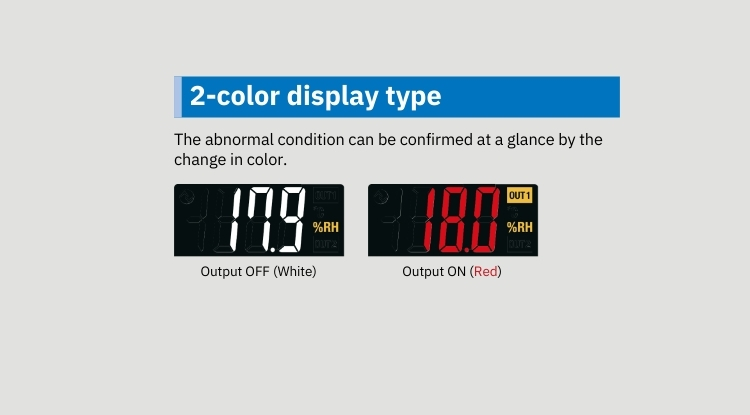

Display color Main screen: White/Red, Sub screen: Orange
Environmental resistance IP65
Standards CE/UKCA (EMC and RoHS directive), UL/CSA (E508758)
Length of lead wire with connector 2m
