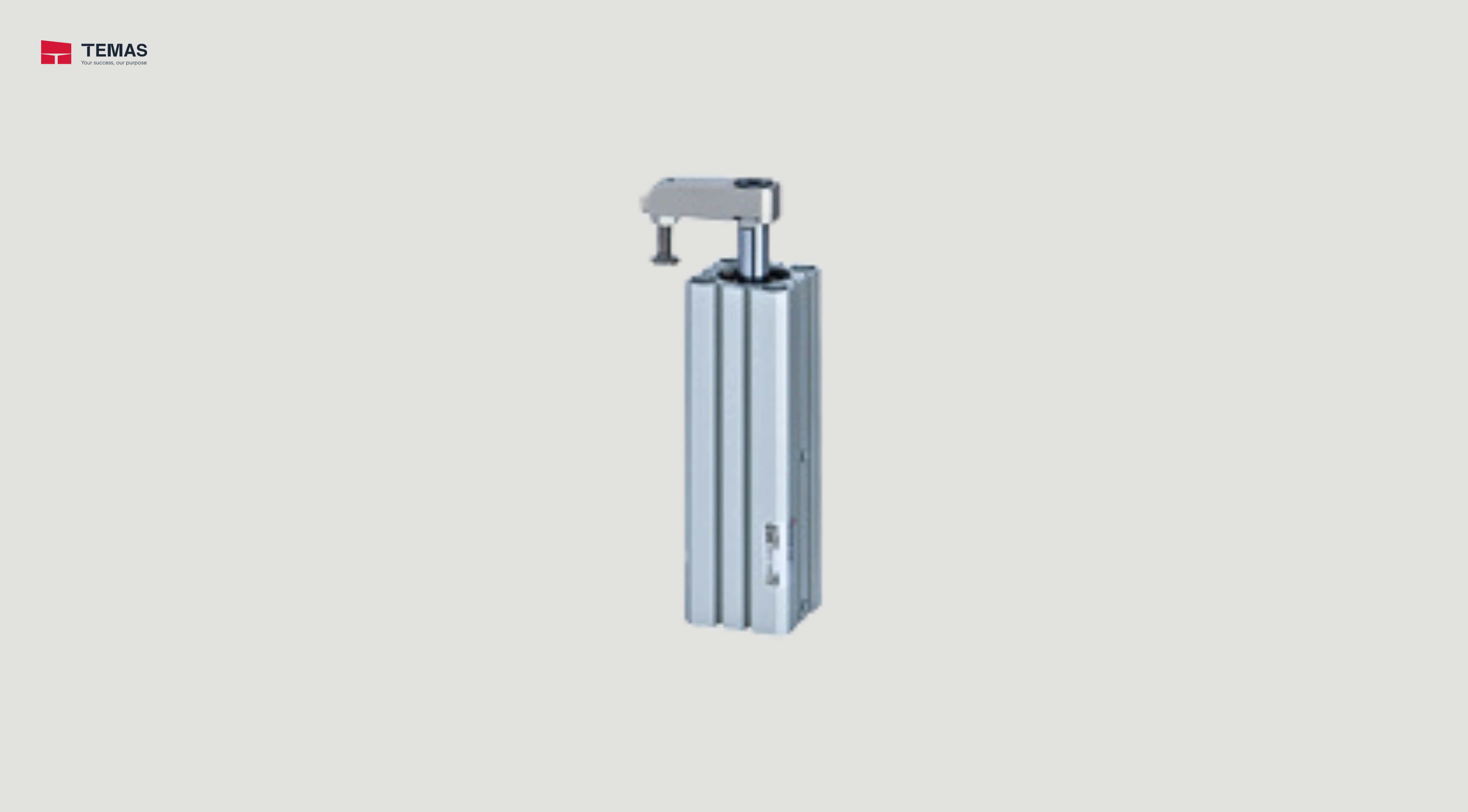

ROTARY CLAMP CYLINDER SMC MK2T

Rotary Clamp Cylinder SMC MK2T bore size ø20, ø25, ø32, ø40, ø50, ø63

Technical Information

Specifications MK2T
 Bore size (mm)
 		20 25 32 40 50 63
Action Double acting
Rotary angle Note 1) 90° ±5°
Rotary direction Note 2) Clockwise, Counterclockwise
Rotary stroke (mm) 19 29 33
Clamp stroke (mm) 10, 20
 20, 50
Theoretical clamp force (N) Note 3) 100 185 300 525 825 1300
Fluid Air
Proof pressure 1.5 MPa
Operating pressure range 0.1 to 1 MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piping port size M5 x 0.8 Rc1/8, NPT1/8
G1/8		 Rc1/4, NPT1/4
G1/4
Mounting Through-hole/Both ends tapped common, Head flange
Cushion Rubber bumper
Stroke length tolerance +1.0 mm
Piston speed 50 to 200 mm/s
Non-rotating accuracy (Clamp part) ±1.0° ±0.5°
