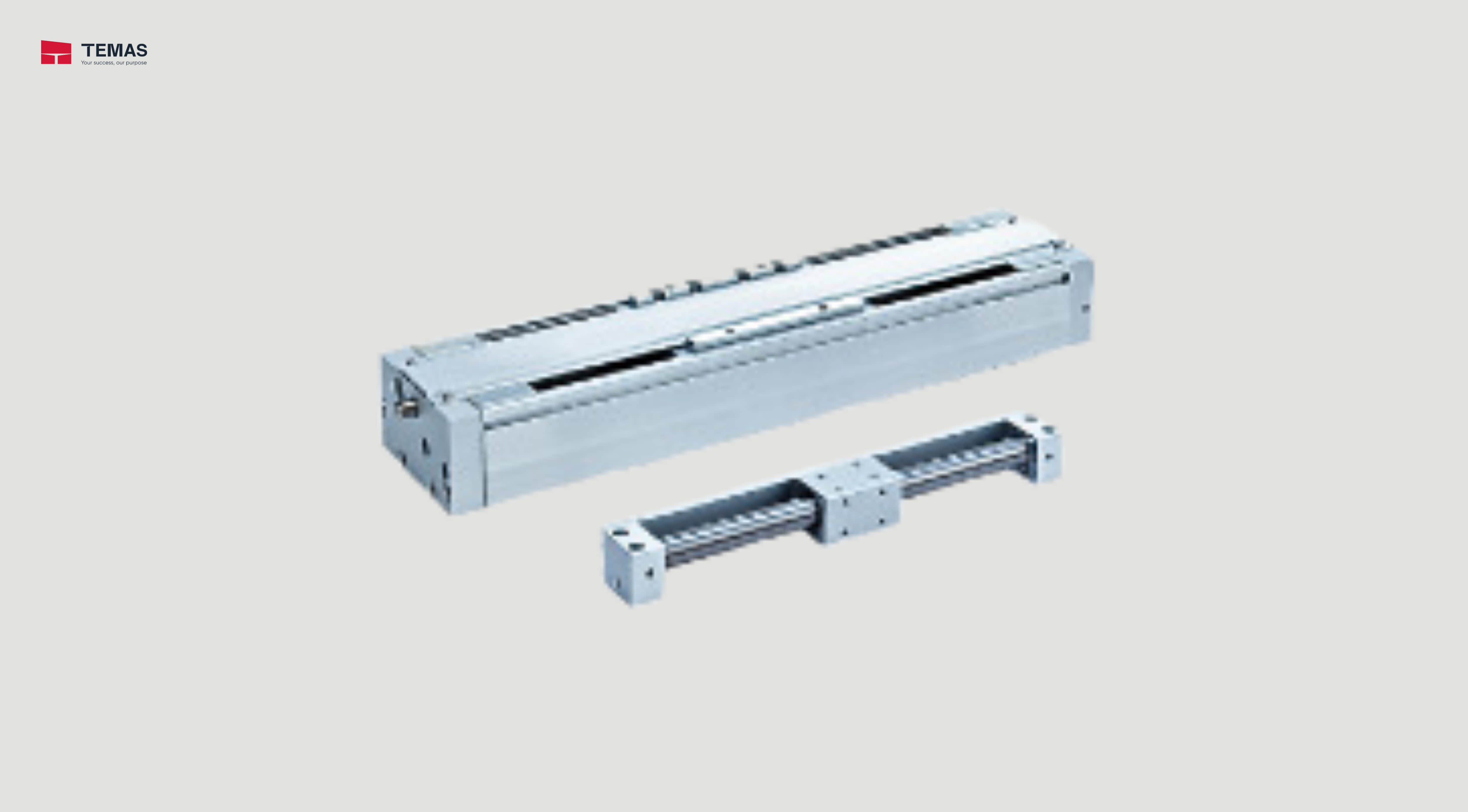

SINE RODLESS CYLINDER DIRECT MOUNT TYPE SMC REB SERIES

Sine Rodless Cylinder Direct Mount Type SMC REB Series bore size: ø15, ø25, ø32

Technical Information

Type Series Action Bore size (mm)
Direct mount REBR Double acting 15，25，32
Linear guide (Single axis) REBH Double acting 15，25
Linear guide (Double axis) REBHT Double acting 25，32
Specifications REB
Bore size (mm)  15 25 32
Fluid Air
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.18 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed (Max.) 50 to 600 mm/s
Lubrication Not required (Non-lube)
Stroke length tolerance (mm) 0 to 250 st: 1.0 mm, 251 to 1000 st: 1.4 mm, 1001 st and up to: +1.0 0 +118 mm
Holding force (N) 137 363 588
