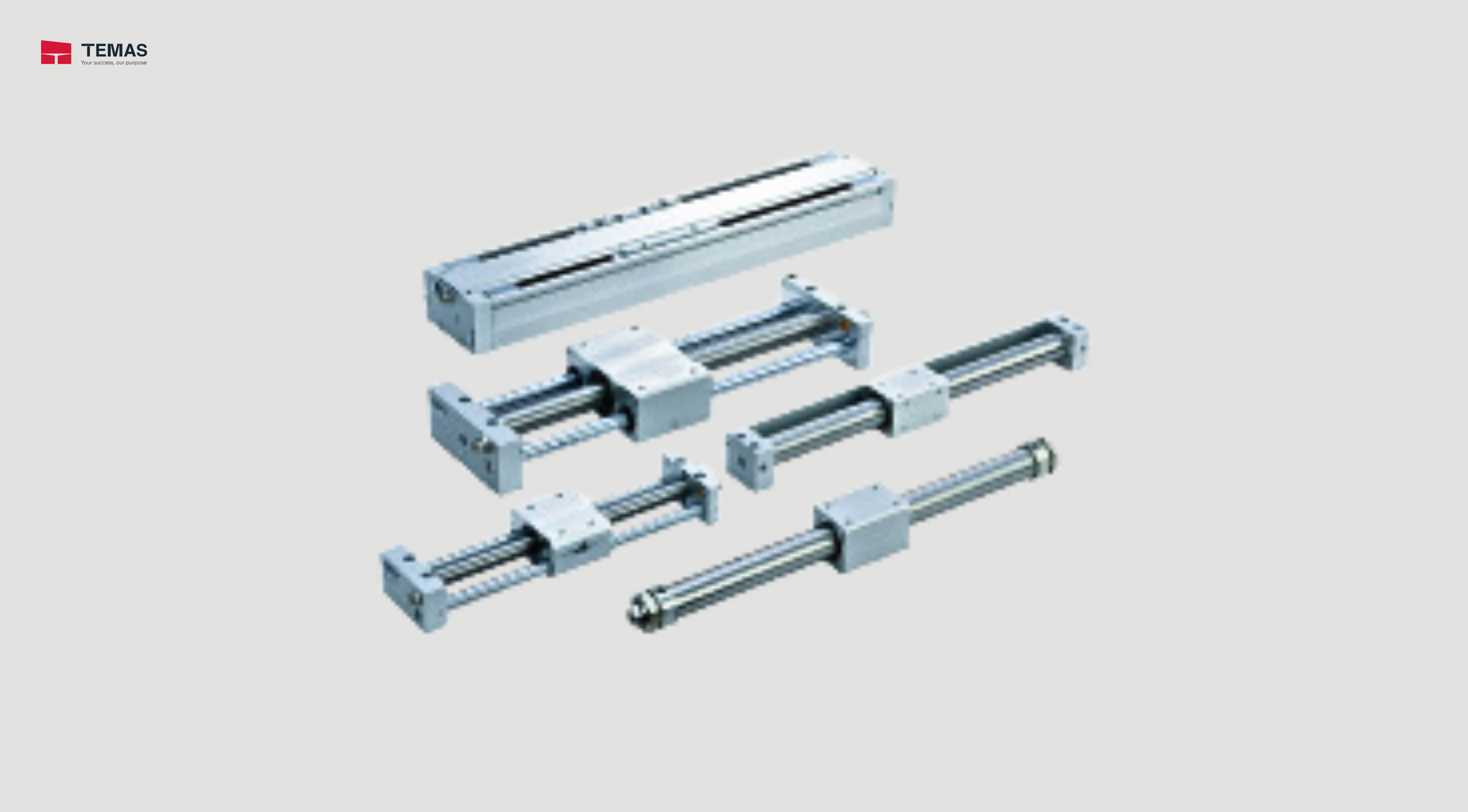

SINE RODLESS CYLINDER SMC REA

Sine Rodless Cylinder SMC REA bore size:  ø25, ø32, ø40, ø50, ø63

Technical Information

Type Series Action Bore size (mm)
Basic REA Double acting 25，32，40，50，63
Direct mount REAR Double acting 10，15，20，25，32，40
Slider
(Slide bearing)		 REAS Double acting 10，15，20，25，32，40
Slider
(Ball bushing bearing)		 REAL Double acting 10，15，20，25，32，40
Linear guide (Single axis) REAH Double acting 10，15，20，25
Linear guide (Double axis) REAHT Double acting 25，32
Specifications REA
Bore size (mm) 25 32 40 50 63
Fluid Air
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.18 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed (Max.) Note) 50 to 300 mm/s
Lubrication Not required (Non-lube)
Stroke length tolerance (mm) 0 to 250 st: +1, 251 to 100 st: +1.4,1001 st or longer:+1.8
Holding force (N) 363 588 922 1,470 2,260
