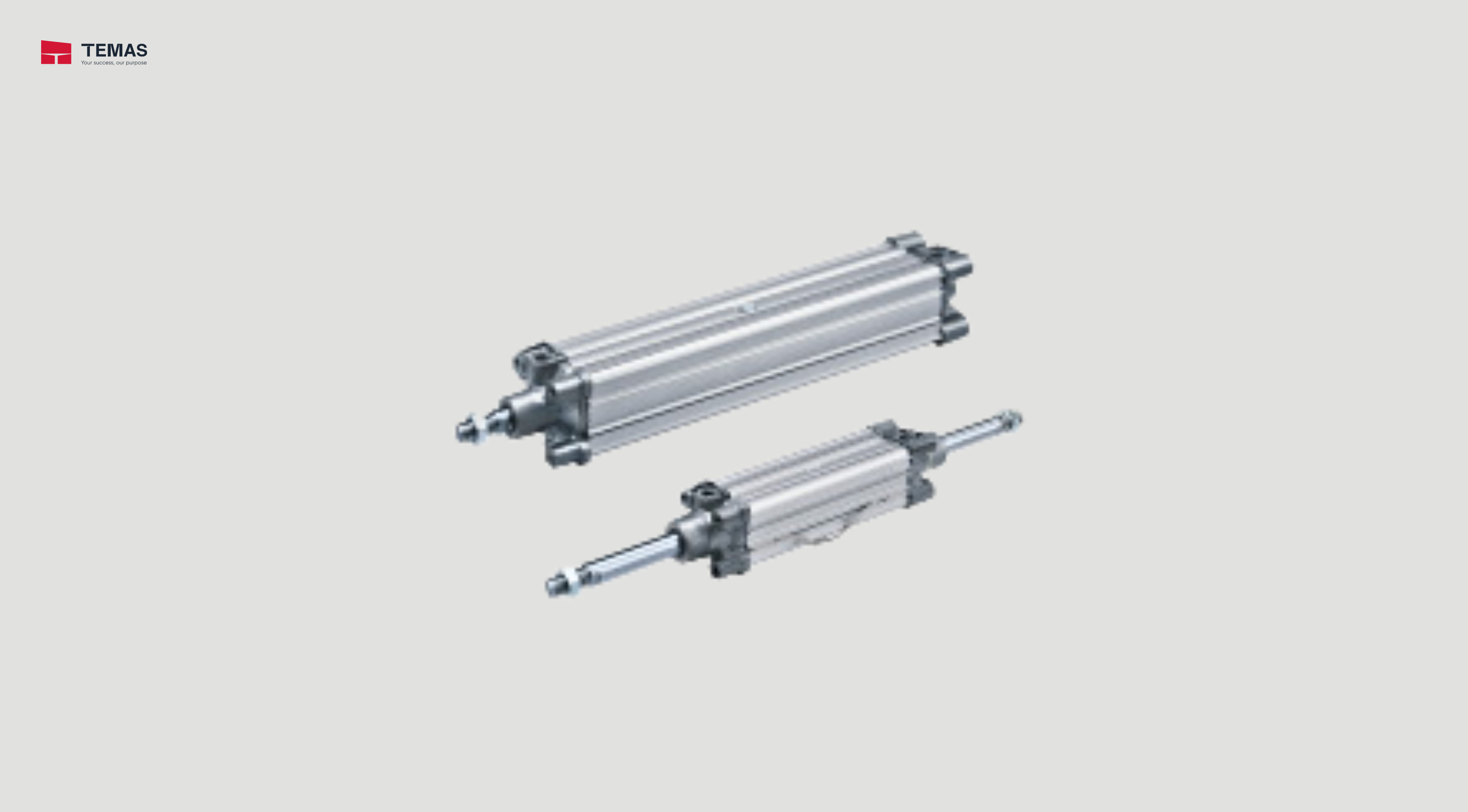

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CP96 | Double acting, Single rod Double acting, Double rod |
32，40，50，63，80，100，125 |
| Non-rotating rod | CP96K | Double acting, Single rod Double acting, Double rod |
32，40，50，63，80，100 |
| Specifications |
CP96, CP96SD | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Bore size [mm] | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||
| Action | Double acting | ||||||||
| Fluid |
Air | ||||||||
| Proof pressure | 1.5 MPa | ||||||||
| Max. operating pressure | 1.0 MPa | ||||||||
| Min. operating pressure | 0.05 MPa | ||||||||
| Ambient and fluid temperatures |
Without auto switch: –20 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
||||||||
| Lubrication |
Not required (Non-lube) |
||||||||
| Operating piston speed | 50 to 1000 mm/s | 50 to 700 mm/s | |||||||
Allowable stroke tolerance |
Up to 500 | +2 | +1 |
||||||
| 501 to 1000 | +2.4 | +1.4 |
|||||||
| 1001 to 1500 | +2.8 | +1.8 |
|||||||
| 1501 to 2000 | +3.2 | +2.2 | |||||||
| Cushion | Air cushion on both ends + Bumper cushion | Air cushion | |||||||
| Port size |
G 1/8 | G 1/4 | G 1/4 | G 3/8 |
G 3/8 | G 1/2 |
G 1/2 | ||
| Mounting |
Basic, Axial foot, Rod flange, Head flange, Single clevis, |
||||||||
