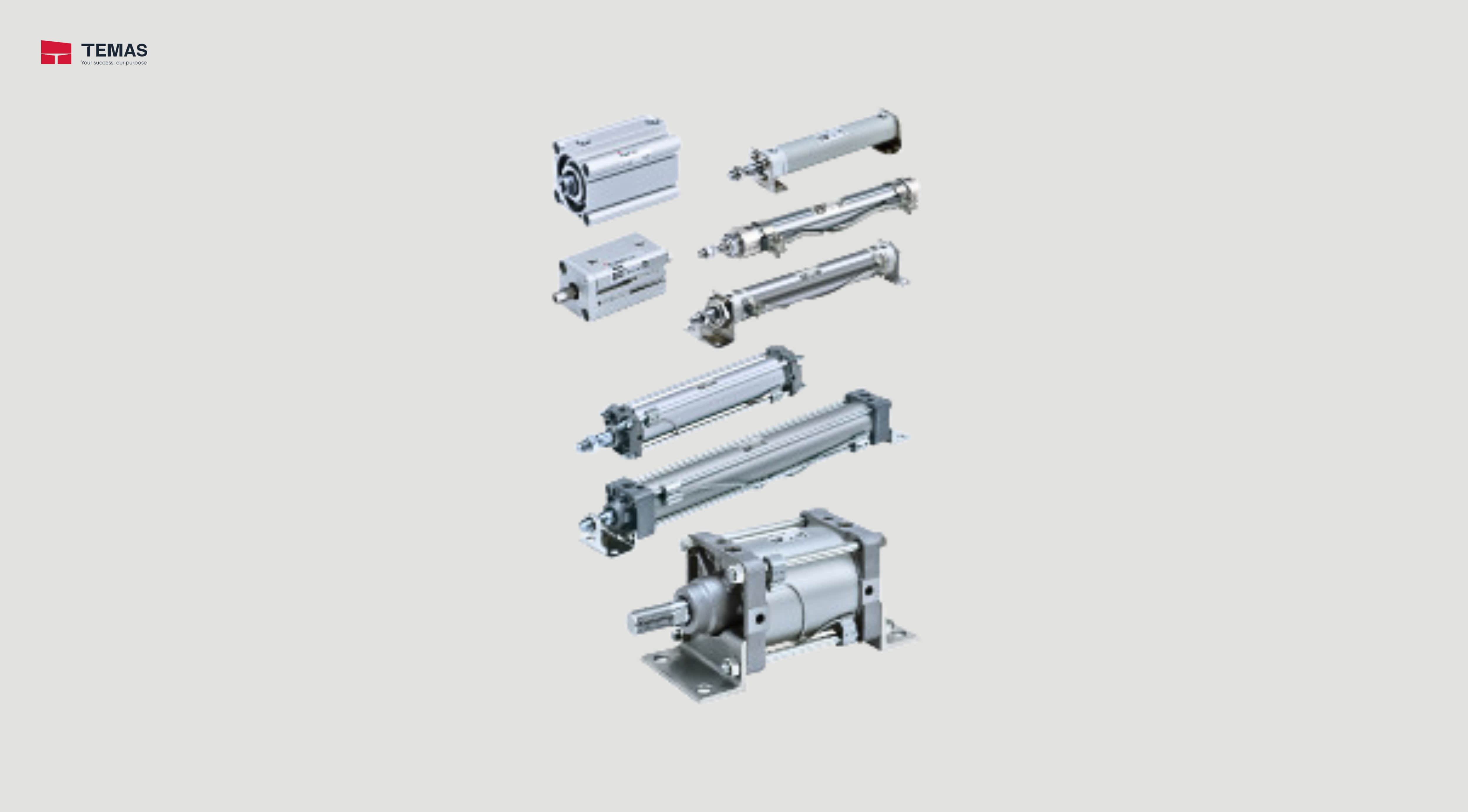

| Type | Series | Action | Bore size (mm) | Min. operating pressure (MPa) |
|---|---|---|---|---|
| Air cylinder | CJ2Y-Z | Double acting, Single rod | 10, 16 | 0.03 |
| Air cylinder | CM2Y-Z | Double acting, Single rod | 20, 25, 32, 40 | 0.02 |
| Air cylinder | CG1Y-Z | Double acting, Single rod | 20, 25, 32, 40 | 0.02 |
| Air cylinder | CG1Y-Z | Double acting, Single rod | 50, 63, 80, 100 | 0.01 |
| Air cylinder | MBY-Z | Double acting, Single rod | 32, 40 | 0.02 |
| Air cylinder | MBY-Z | Double acting, Single rod | 50, 63, 80, 100 | 0.01 |
| Air cylinder | CA2Y-Z | Double acting, Single rod | 40 | 0.02 |
| Air cylinder | CA2Y-Z | Double acting, Single rod | 50, 63, 80, 100 | 0.01 |
| Air cylinder | CS2Y | Double acting, Single rod | 125, 140, 160 | 0.005 |
| Compact cylinder | CQSY | Double acting, Single rod | 12, 16 | 0.03 |
| Compact cylinder | CQSY | Double acting, Single rod | 20, 25 | 0.02 |
| Compact cylinder | CQ2Y-Z | Double acting, Single rod | 32, 40 | 0.02 |
| Compact cylinder | CQ2Y-Z | Double acting, Single rod | 50, 63, 80, 100 | 0.01 |
| Specifications | CJ2Y | ||
|---|---|---|---|
| Bore size (mm) | 10 | 16 | |
| Action | Double acting, Single rod | ||
| Fluid | Air | ||
| Proof pressure | 1.05 MPa | ||
| Maximum operating pressure | 0.7 MPa | ||
| Ambient and fluid temperature | Without auto switch: -10°C to 70°C (No freezing) With auto switch: -10°C to 60°C |
||
| Cushion | Rubber bumper (Standard equipment) | ||
| Lubrication | Not required (Non-lube) | ||
| Stroke length tolerance | +1.0 0 | ||
| Piston speed | 5 to 500 mm/s | ||
| Allowable kinetic energy | ø10 | 0.035 J | |
| ø16 | 0.090 J | ||
