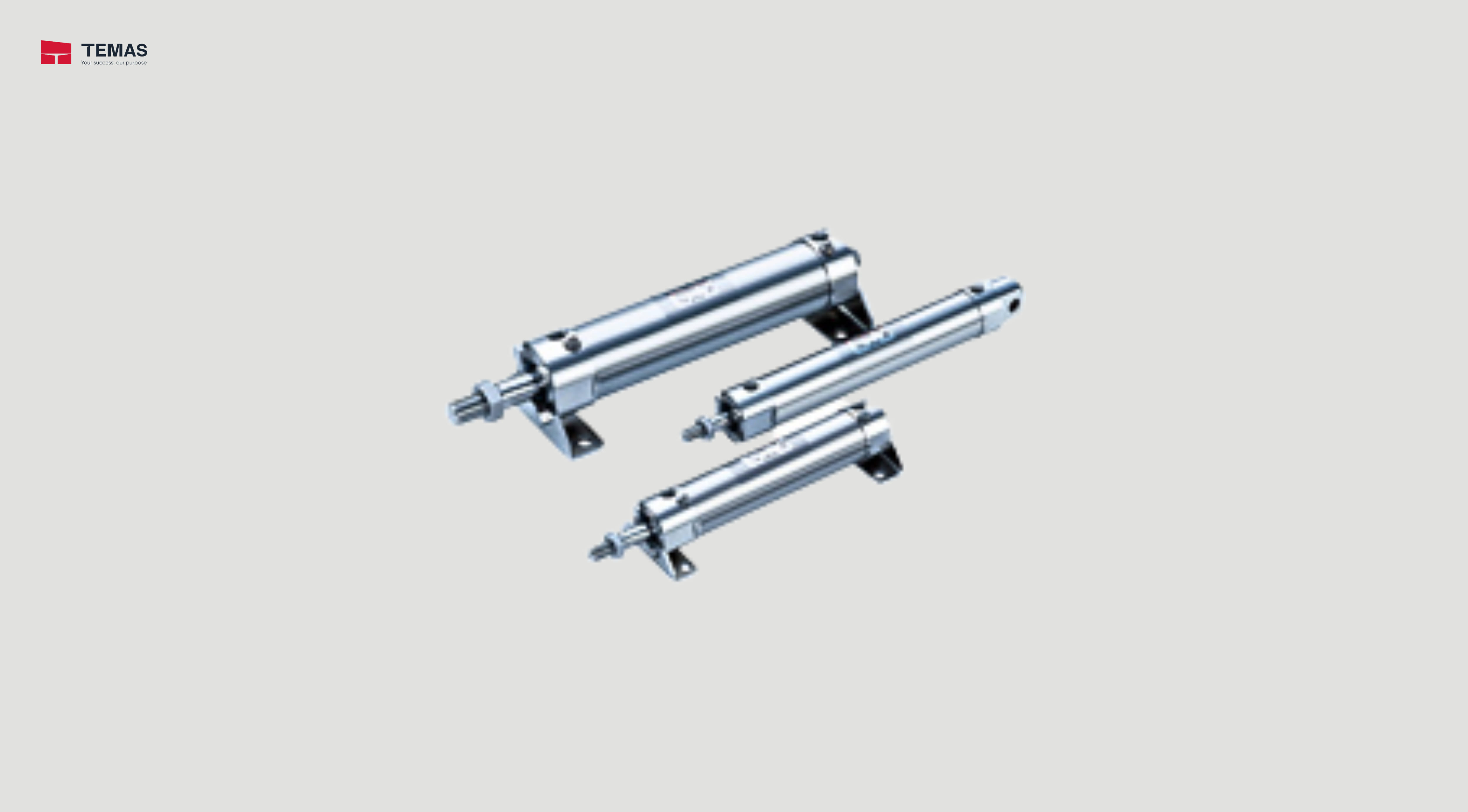

STAINLESS STEEL CYLINDER CJ5-S, CDJ5-S, CG5-S, CDG5-S

Stainless Steel Cylinder CJ5-S Series size ø10, ø16

Technical Information

Type Series Action Bore size (mm)
Standard CJ5-S Double acting, Single rod 10，16
Standard CG5-S Double acting, Single rod 20，25，32，40，50，63，80，100
Standard CG5-S Double acting, Double rod 20，25，32，40，50，63，80，100
Specifications CJ5-S, CDJ5-S, CG5-S, CDG5-S
Bore size (mm) 10 16
Action Double acting, Single rod
Fluid Air
Proof pressure 1 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.1 MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C, With auto switch: –10 to 60°C
Cushion Rubber bumper
Lubrication Not required (Non-lube)
Stroke length tolerance +1.0
Piston speed 50 to 750 mm/s
Allowable kinetic energy 0.035 J 0.090 J
Mounting type Basic type, Axial foot type, Rod side flange type, Double clevis type
