Modularized design from hardware to software, simple to setup system, and Software using drag-and-drop graphics.
Temas proactively designs the entire core technologies and system solutions, so be easy to customize close to actual applications and investment costs.
Quick battery replacement solution & built-in UPS backup power inside for ensuring continuous production.
Ensures accuracy and stability in 24/7 production operation.
Safety, obstacle avoidance, no infrastructure changes, flexibility in integration & production.
| Specification | TMR-300 | |
| General information | Navigation method | Laser SLAM |
| Weight (with battery) | 130 KG | |
| Payload capacity | 300 KG | |
| Dimensions (L*W*H) | 955*610*245 | |
| Ground clearance | 24-28 mm | |
| Performance | Position accuracy | ±20 mm |
| Angle accuracy | ±1.5° | |
| Min. Passable width | 810 mm | |
| Max. Speed | 1.5 m/s | |
| Battery & Charger | Battery type | Lithium Iron Phosphate (LiFePO4) |
| Battery capacity (V/Ah) | 48V/50Ah | |
| Active operation time | 16 - 20h | |
| Charging time | 2 - 3h | |
| Charging method | Automatic / Manual / Quick Battery Replacement | |

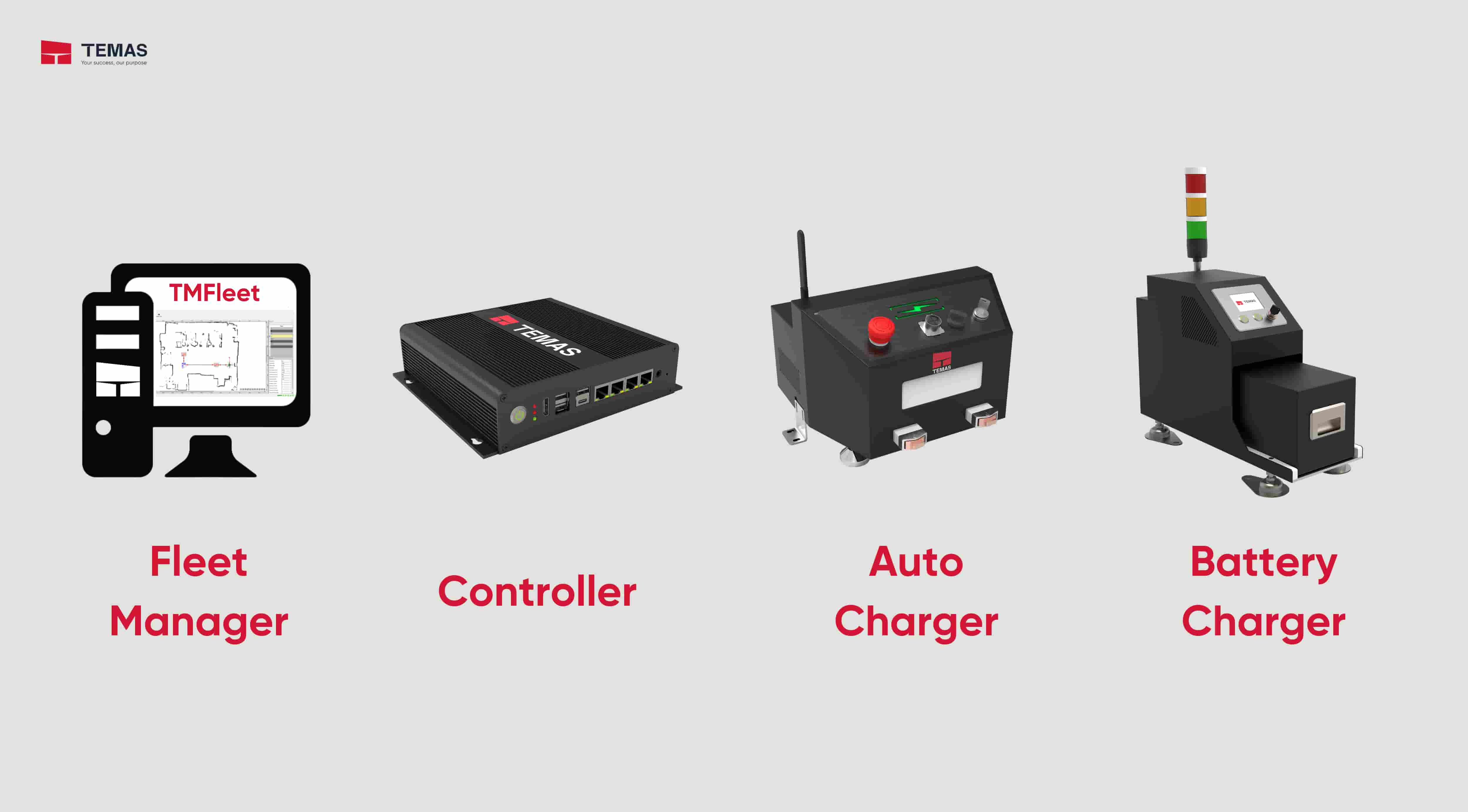

| Charging station | Auto Charger Station / Battery Charger Station | |
| Spare power supply | UPS | |

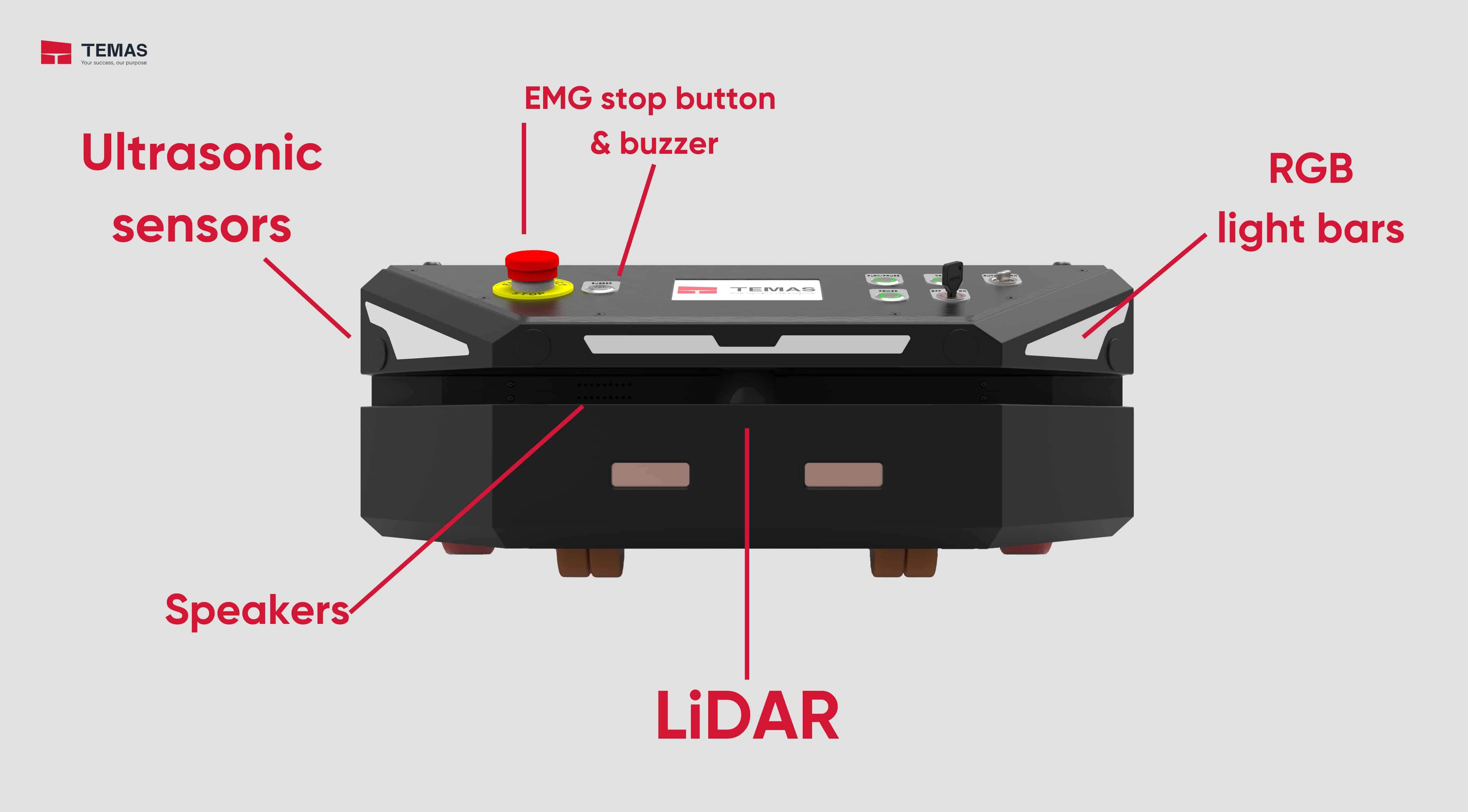

| Safety Feature | Safety laser scanners | 2 x LiDARs |
| Ultrasonic sensors | 8 pcs | |
| Indicator | RGB light bar | |
| Warning | 1 x Speaker, 1 x Buzzer | |
| Emergency stop | 2 x EMG stop buttons | |
| Communication | WiFi | Dual-band 2.4G/5G 802.11ac 2T2X |
| Bluetooth | Bluetooth 4.2 | |
| Ethernet | Gigabit Ethernet | |
| USB | USB2.0 / USB3.0 | |
| I/O connections | Digital I/O Connector / RS485 / Auxiliary Power Connector (48 VDC/24VDC) | |
| Operator Interfaces | Fleet Manager System | Temas Fleet Manager - TMFleet |
| Control Panel | Touch Screen / Buttons/ Switch keys | |
| Environment | Environment | Indoor usage only |
