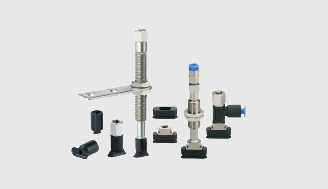

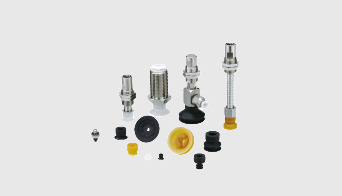

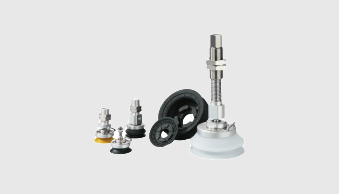

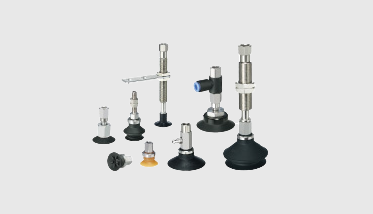

VACUUM PAD SMC ZP SERIES

SMC Vacuum Unit Stable suction position, Improved ease of disassembly (ZP, ZP2, ZP3, ZP3E, ZP3P )

Model: ZP02US/ZP02UN/ZP16UTS

Technical Information

Plate Diameter

ø10 to ø16

 ø20 to ø50
Specification No Rotation J: Rotating, K: Non-rotating
Stroke [mm]  10, 20, 30, 40, 50 10, 20, 30, 50
Connection thread M10 x 1 M14 x 1
Spring reactive force [N] At 0 stroke 1.0 2.0
Spring reactive force [N] At full stroke 3.0 5.0
