Technical Information

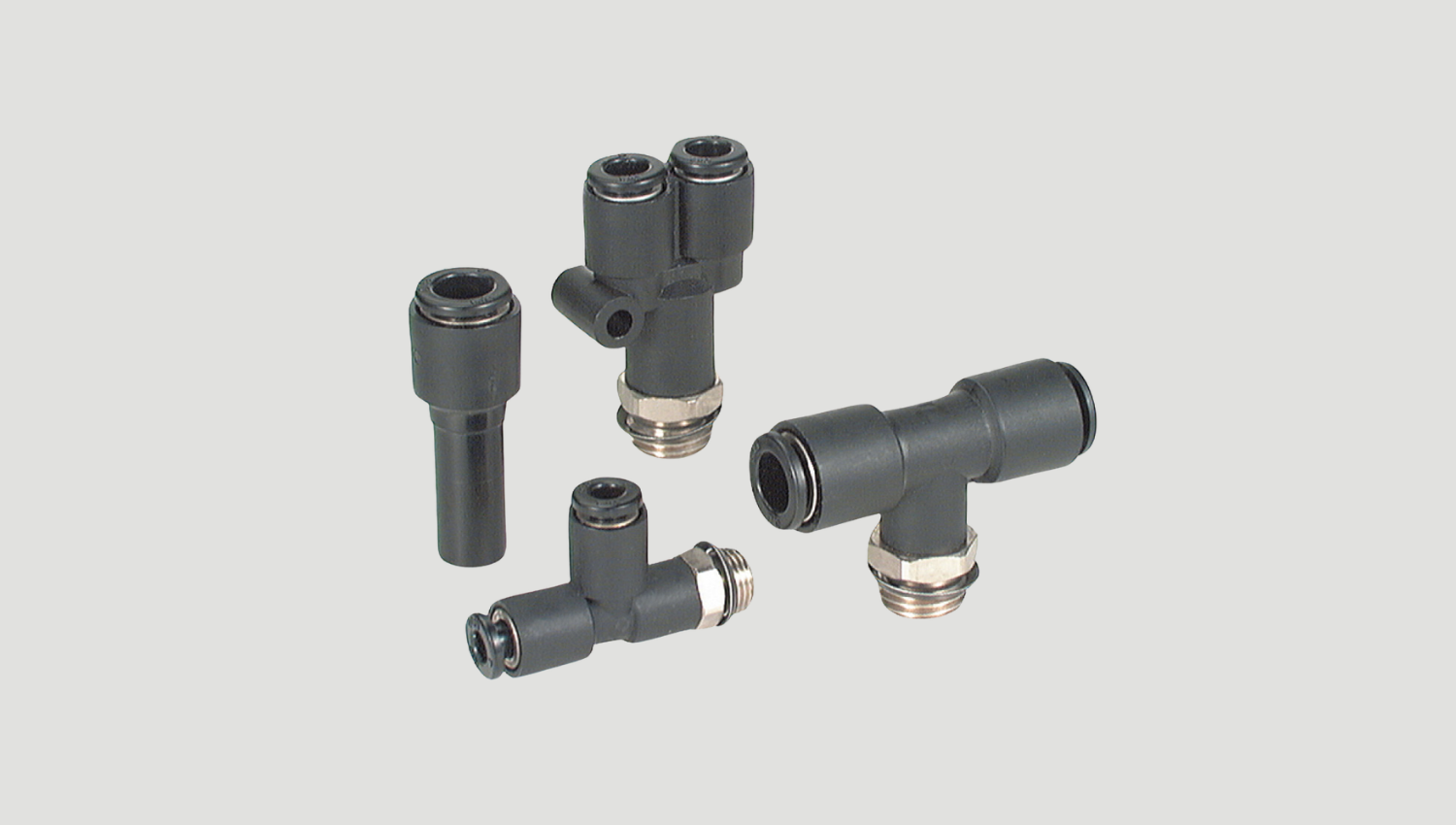

Series Applicable tubing O.D. Connection thread
KA φ3.2,φ4,φ6,φ8,φ10,φ12 M5×0.8,M6×1.0,standard UNI thread
1/8,1/4,3/8,1/2
Specifications KA
Fluid Air
Operating pressure range
-100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature 0 to 40°C
Thread
Uni thread
JIS B 0209 (Metric coarse thread)
Seal (Thread portion) Gasket
Copper-free
Brass parts are all electroless nickel plated.
Surface resistance 10¹ to 10⁹ Ω
