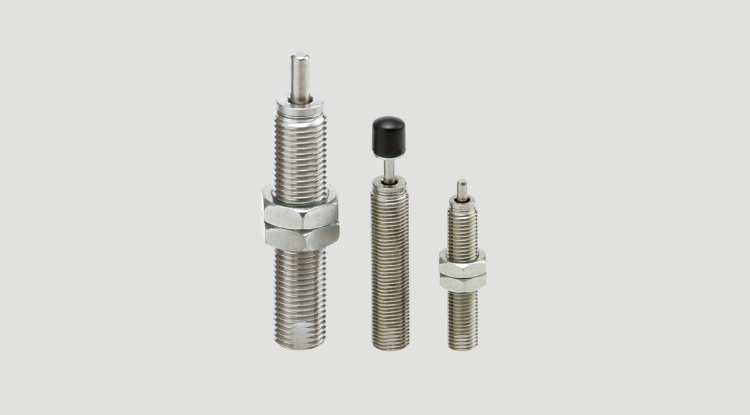

SHOCK ABSORBER SMC RJ

Shock Absorber SMC RJ Series 10 million cycles

Technical Information

Type Series Absorbed energy（J） Absorption stroke（mm） O.D. thread
Soft type RJ 0.5 to 70 4 to 25 M6 to M27
Short stroke type RJ 0.5 to 3.7 5 to 10 M8 to M14
Model Basic type RJ0805 RJ1410 RJ1006
 With cap RJ0805U RJ1410U RJ1006U
Max. absorbed energy (J) Note) 0.5 3.7 1.5
O.D. thread size (mm) 8 x 1 14 x 1.5 10 x 1
Stroke (mm) 5 10 6
Collision speed (m/s) 0.05 to 1
Max. operating frequency (cycle/min) Note) 80 45 70
Spring force (N) Extended 2.8 6.4 5.4
Compressed 4.9 14.6 8
Max. allowable thrust (N) 245 814 422
Ambient temperature (°C) −10 to 60 (No freezing)
Weight (g) Basic type 15 65 23
With cap 16 70 25
