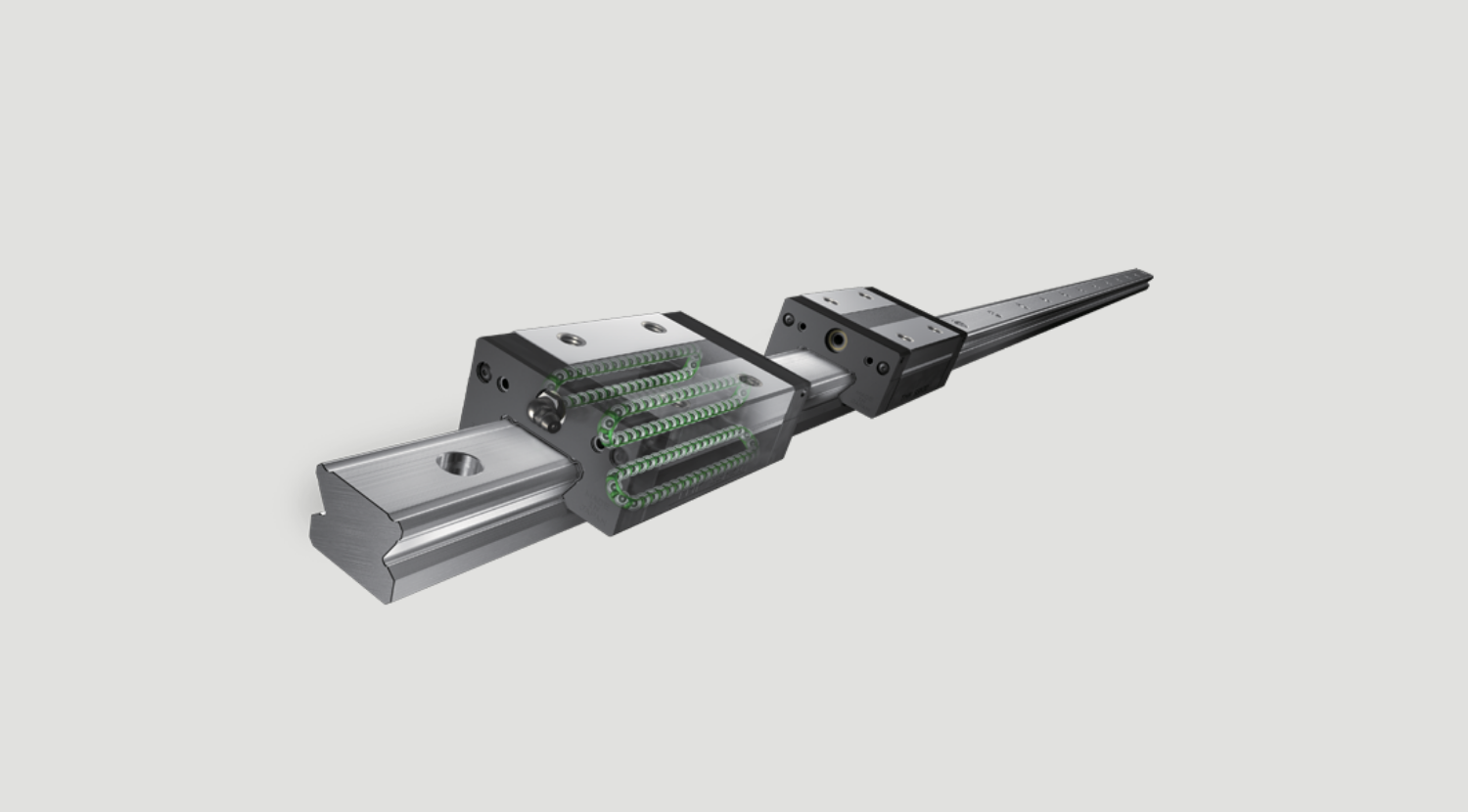

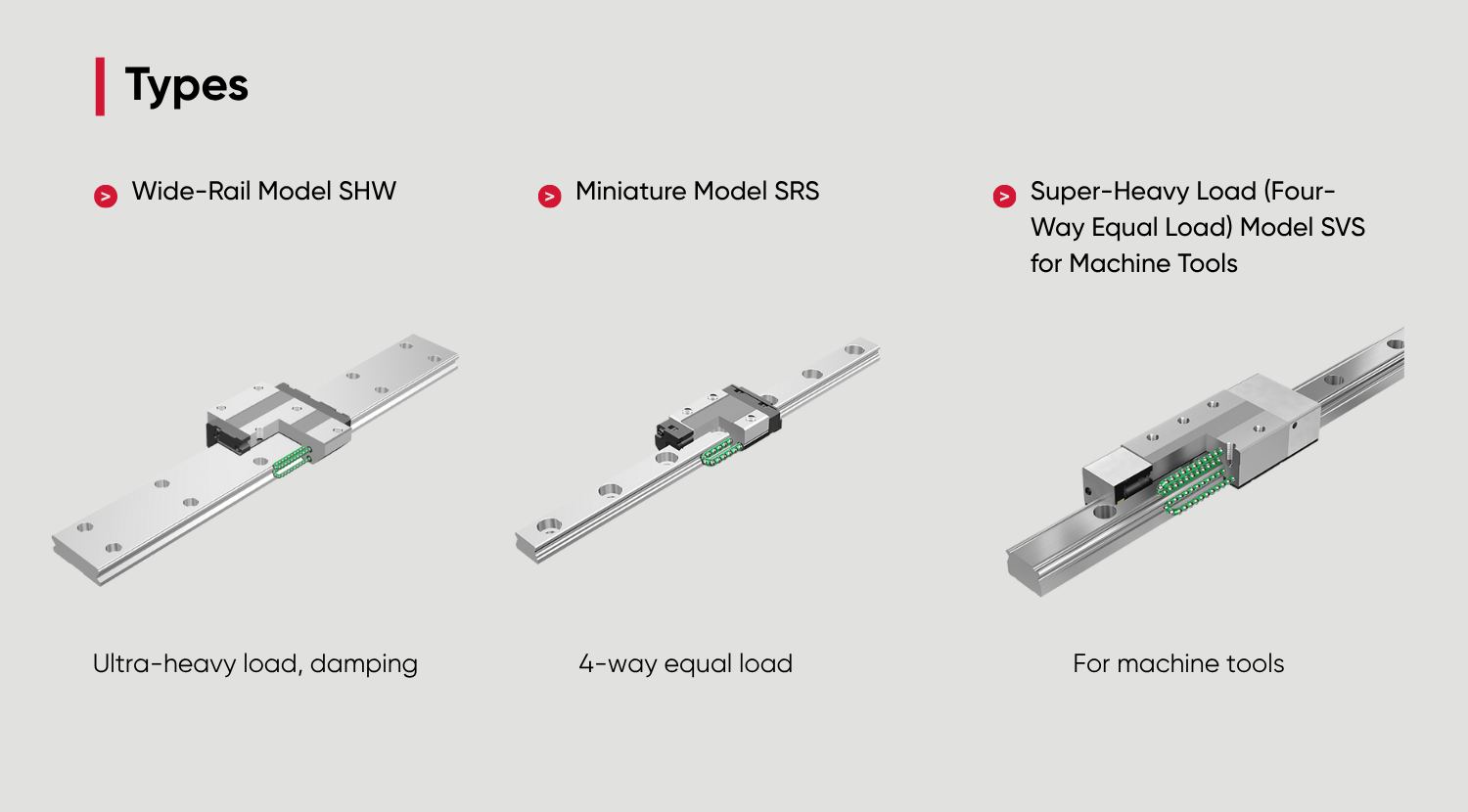

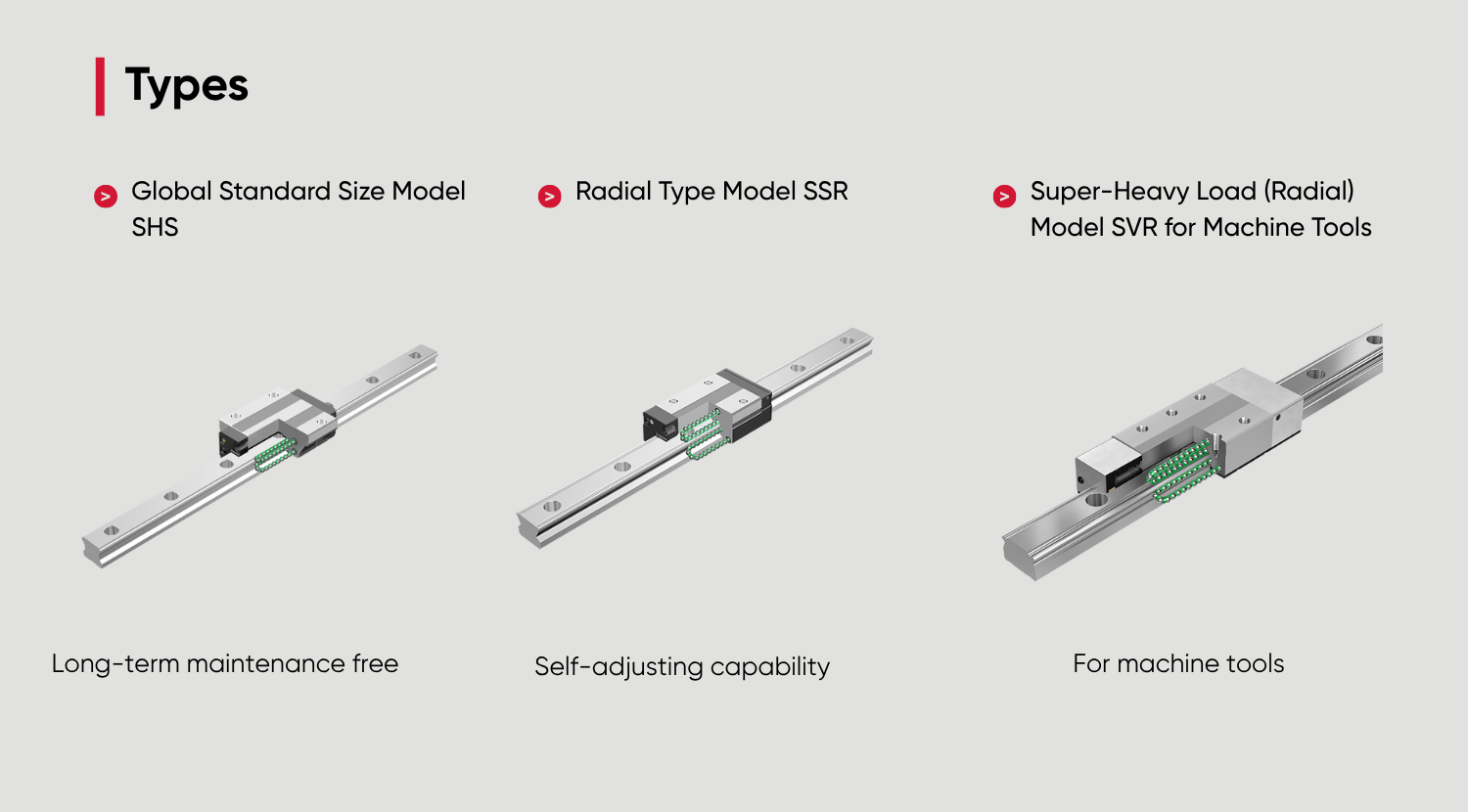

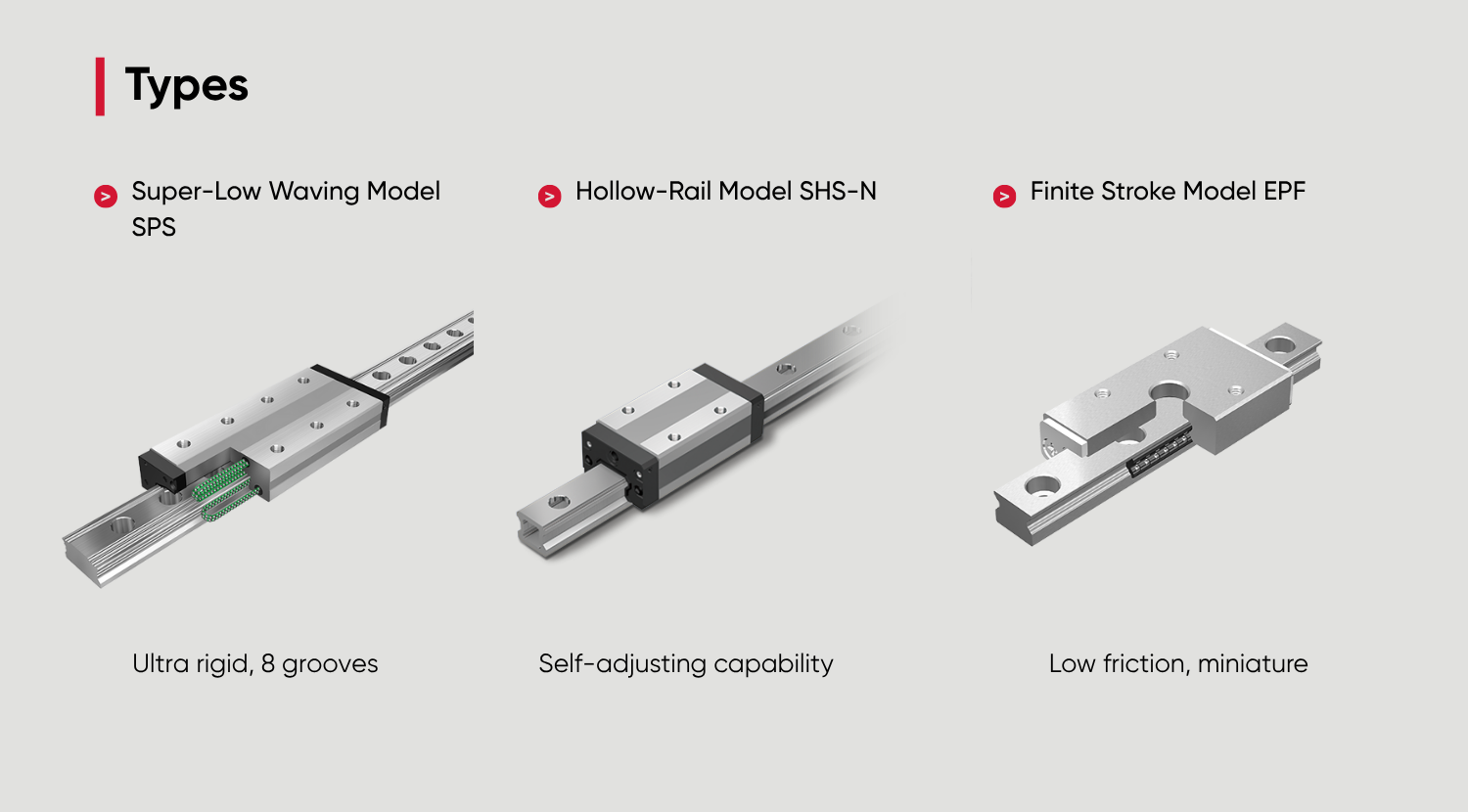

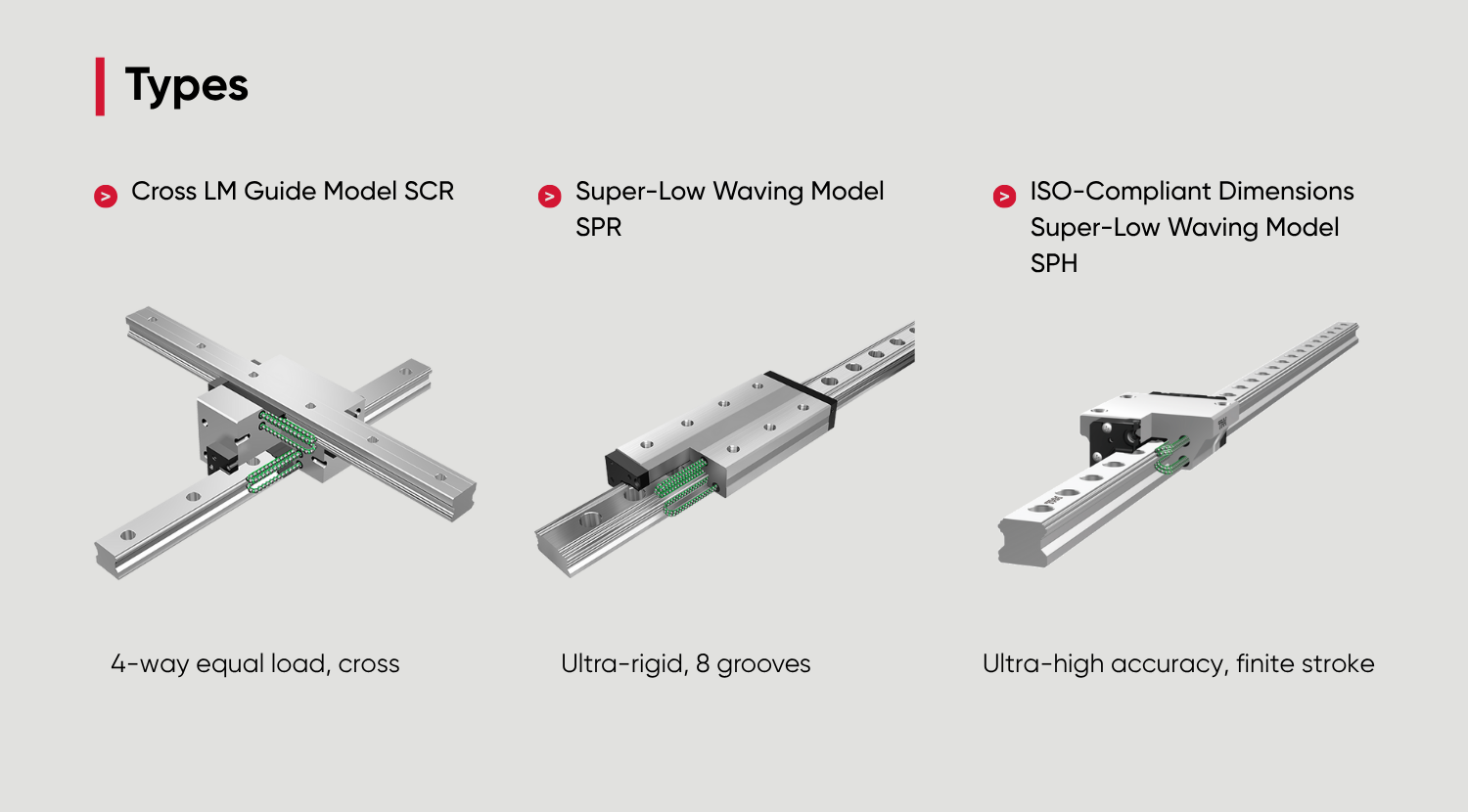

With the Caged Ball LM Guide, the use of a ball cage allows lines of evenly spaced balls to circulate, thus to eliminate friction between the balls. In addition, grease held in a space between the ball circulation path and the ball cage (grease pocket) is applied on the contact surface between each ball and the ball cage as the ball rotates, forming an oil film on the ball surface. As a result, an oil film is not easily broken.
Data on Long Service Life and Long-term Maintenance-free Operation
Condition:
Noise Level Data
Since the ball circulation path inside the LM block is made of resin, metallic noise between balls and the LM block is eliminated. In addition, use of a ball cage eliminates metallic noise of ball-to-ball collision, allowing a low noise level to be maintained even at high speed.
High-speed Durability Test Data
Since use of a ball cage eliminates friction between balls, only a low level of heat is generated and superbly high speed is achieved.
Condition:
Rolling Resistance Data
Use of a ball cage allows the balls to be uniformly aligned and prevents a line of balls from meandering as they enter the LM block. This enables smooth and stable motion to be achieved, minimizes fluctuations in rolling resistance, and ensures high accuracy, in any mounting orientation.
Low Dust Generation Data
In addition to friction between balls, metallic contact has also been eliminated by using resin for the through holes. Furthermore, the Caged Ball LM Guide has a high level of grease retention and minimizes fl y loss of grease, thus to achieve superbly low dust generation.
Contact us for detailed consultation on the model best suited to your application.
