Types

• Global Standard Model HSR
• Radial Type Model SR
• Super-Heavy Load (Radial) Models NR-X / NR for Machine Tools
• Super-Heavy Load (Radial) Models NRS-X / NRS for Machine Tools
• Wide-Rail Model HRW
• Miniature Model RSX
• High-Acceleration and Low-Resistance Miniature LM Guide Model AHR
• Miniature Model RSR
• Separate Type Model HR
• Separate Type Model GSR
• Separate Type Model GSR-R
• Cross LM Guide Model CSR
• Miniature Cross LM Guide Model MX
• Structural Beam Model JR
• Curved LM Guide Model HCR
• Straight-and-Curved LM Guide Model HMG
• Self-Aligning Model NSR-TBC
• Model HDR Suited for Single-Axis Applications

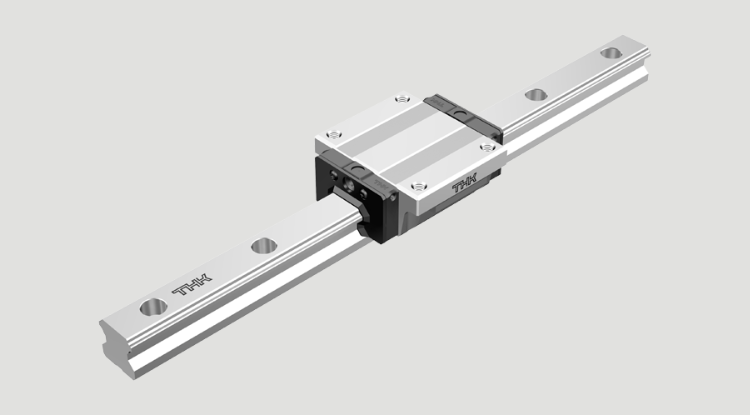

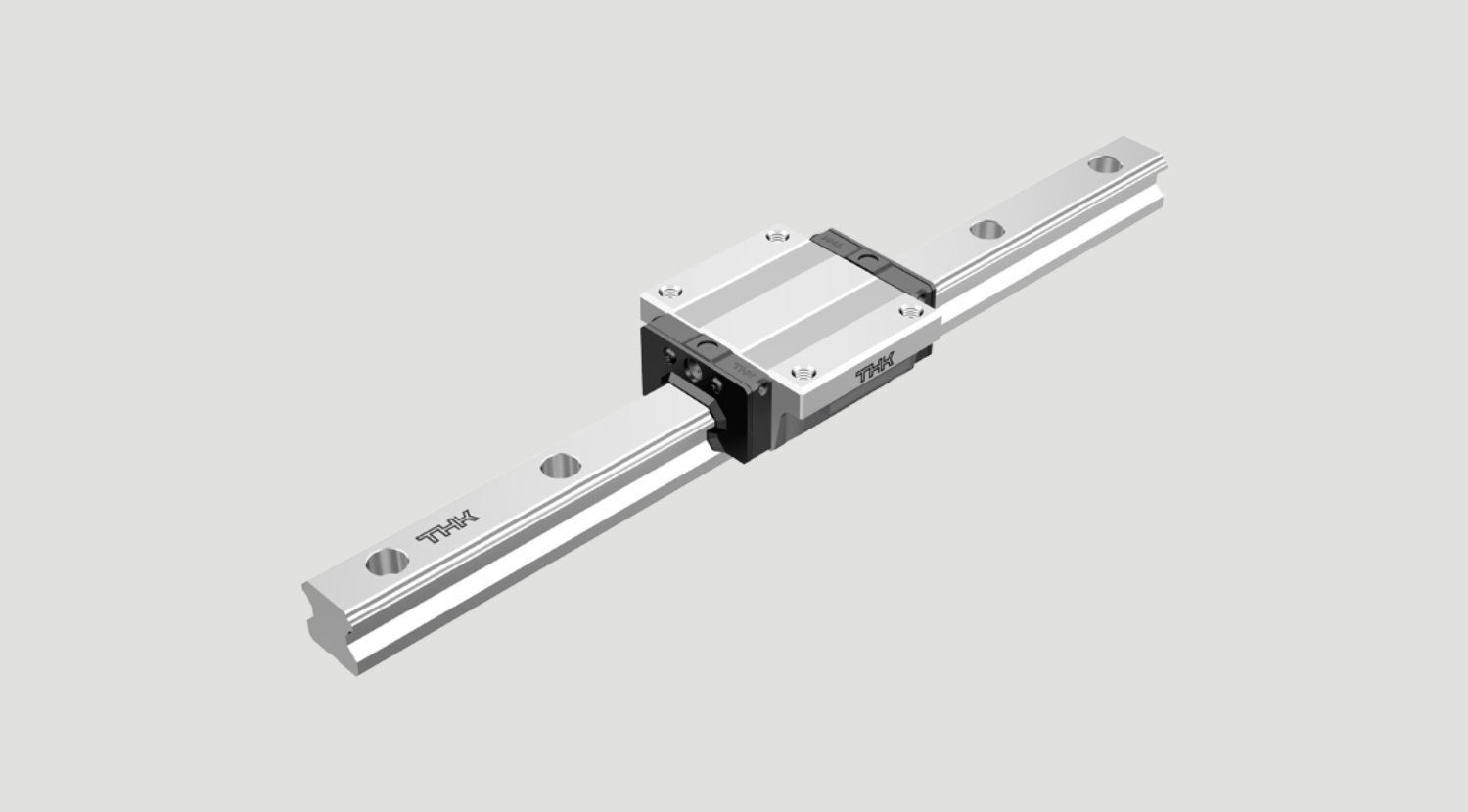

Structure and Features of the Full-Ball Type LM Guide

Structure:

• Extensive lineup including low-profile compact design, 4-way equal load, wide type, and arc and curve types
• Ideal four raceway, circular-arc groove, two-point contact structure
• Superb error-absorbing capability with the DF structure
• Accuracy averaging effect by absorbing mounting surface error
• Large permissible load and high rigidity
• Low friction coefficient
• Superb planar running accuracy
• Superior high-speed performance

Major application

• Surface grinder
• Electric discharge machine
• High-speed transfer equipment
• NC lathe
• Injection molding machine
• Woodworking machine
• Semiconductor manufacturing equipment
• Inspection equipment
• Food-related machines
• Medical equipment
