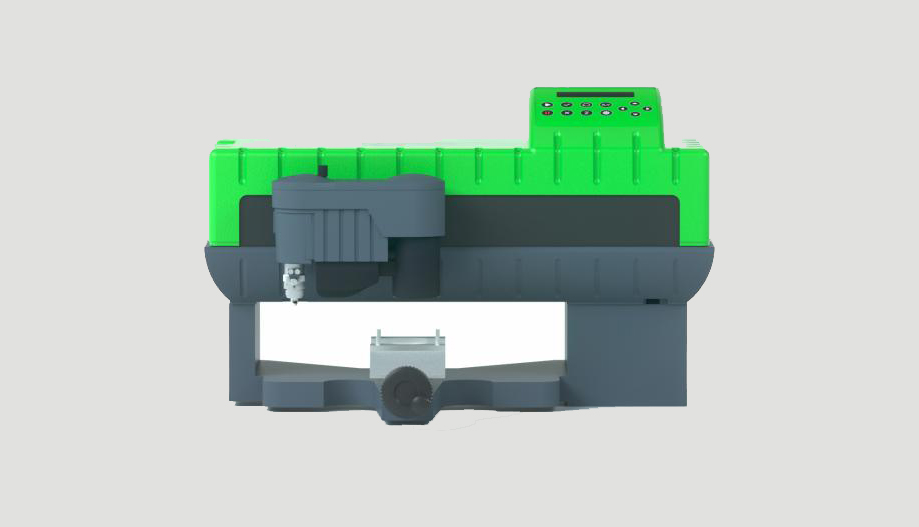

| Model | IS400 | IS400 VOLUME |
| Max. object size (L x W x H) (weight) | Unlimited x 230 mm (9,05 in) x 105 (4,13 in) mm (20Kg - 44 lbs) | Unlimited x 230 mm (9,05 in) x 400 mm (15,75 in) (20Kg - 44 lbs) |
| Dimensions (L x W x H) | 893 mm (35.157 in) x 610 mm (24.016 in) x 435 mm (17.126 in) | 900 mm (35.433 in) x 615 mm (24.213 in) x 840 mm (33.071 in) |
| Machine weight | 42Kg (92,6 lbs) | 90 Kg (148,416 lbs) |
| Automatic Z axis | No | |
| Noise level | 80 dB (A) +/- 2 | 80 dB (A) +/- 2 |

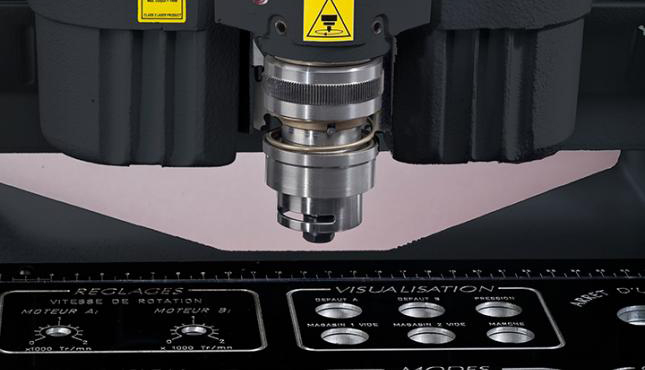

| Spindle Type | Top load spindle or collet spindle |
Top load spindle or collet spindle |
| Point & shoot | Yes | Yes |
| Operating Temperature | 5 °C (41 °F) - 40 °C (104 °F) | 5 °C (41 °F) - 40 °C (104 °F) |
| Connection to computer | USB | USB |
| Maximum speed | 25 mm/s (0,984 in/s) | 25 mm/s (0,984 in/s) |
| Z stroke (Z travel) | 40 mm (1,575 in) | 40 mm (1,575 in) |
| Rotation speed | Max 20 000 rpm | Max 20 000 rpm |
| Software | Gravostyle | Gravostyle |
| Tool diameter | 4,36 mm (0,172 in) with optional spindle : 3mm (0,118 in) to 6,36mm (0,25 in) |
4,36 mm (0,172 in) with optional spindle : 3mm (0,118 in) to 6,36mm (0,25 in) |
