Technical Information

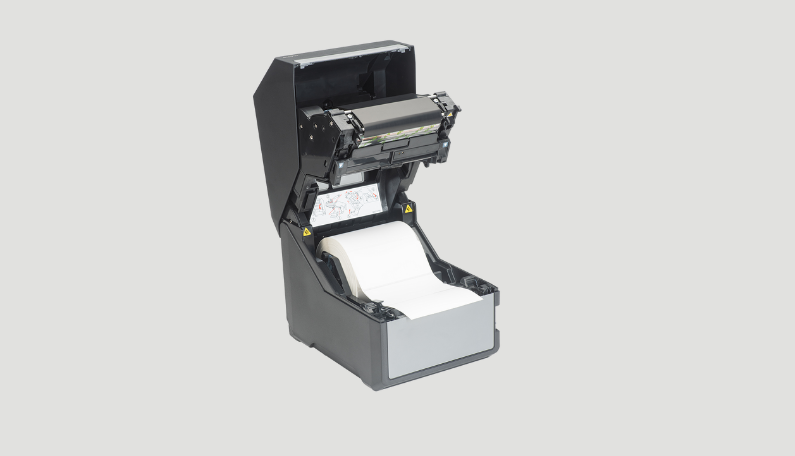

Intuitive maintenance: The thermal printhead is replaceable with just one touch. Front access ribbon unit simplify maintenance and reduce downtime which is saving time and costs.

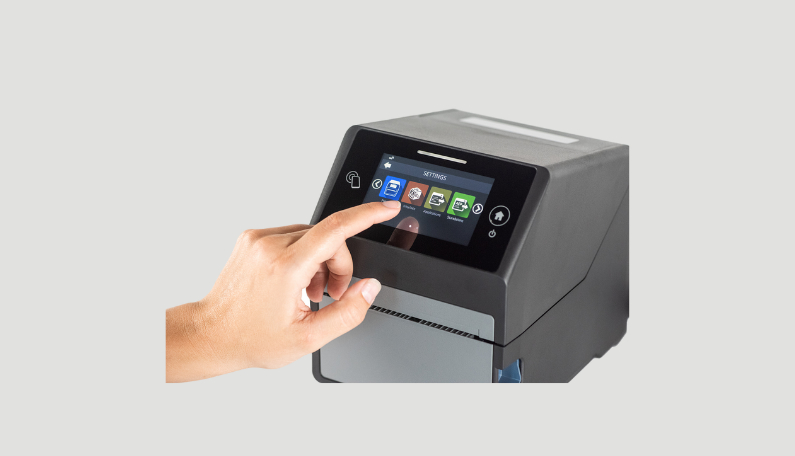

Easy customization: users can set up custom profiles right on the touch screen, no more time wasted to set up media settings from the start. Easily transfer and install data from one printer to another, especially useful when a printer breaks down or a new printer is added.

Standalone printing: The CT4-LX printer uses application printing (AEP) in the printer, users can connect the printer to peripheral devices such as barcode scanners, keyboards, etc. for PC-less printing which saves cost and space.

Support Services: CT4-LX is powered by SATO Online Service (SOS), a cloud-based IoT maintenance support service to monitor and support your printer 24/7.

Cutter, Linerless cutter, Dispenser kit, RS-232C kit, Real-time Clock (RTC), Wireless LAN kit, Bluetooth kit, UHF and HF RFID.

Printing Specification
Print Method Direct Thermal / Thermal Transfer
Print Mode Continuous, Tear-off, Cutter, Dispenser, Linerless
Print Resolution

8 dots/mm (203 dpi)

12 dots/mm (305 dpi)

Print Speed

8 ips (203 mm/sec)

6 ips (152 mm/sec)

Print Area Width (mm/inch) 104mm (4.1")
Length (mm/inch)

2500mm (98.4")

1500mm (59.1")

Processor 32 bit Processor 1GHz
Printer memory


4 GB


1 GB
