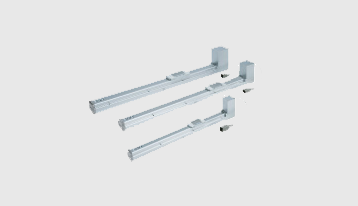

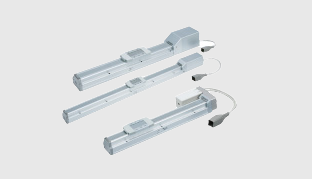

Sliding electric cylinder/ LEFS . lead screw

Model: LEFS/LEFS40RH-500-S3AN3D/LEFS32RH-500-R3AN3D/LEFS25LH-450-S3AN3D

Restart from the last stop position is possible.
Easy operation restart after recovery of the power supply
　The position information is held by the encoder even when the power supply is
　turned off.
　A return to origin operation is not necessary when the power supply is recovered.
No battery is installed. Reduced maintenance
　No battery is used to store the position information.
　There is no need to manage spare batteries or replacement maintenance.
Max. work load: 65 kg
Positioning repeatability: ±0.015 mm (High precision type)

Mode	LEFS16	LEFS16	LEFS25	LEFS25	LEFS32	LEFS32	LEFS40	LEFS40
Stroke [mm]∗1	100 to 500		100 to 600		100 to 800		100 to 1000
Work load Horizontal [kg]∗2	9	10	20		40	45	50	60
Work load Vertical [kg]∗2	2	4	7.5	15	10	20	-	23
Speed∗2 [mm/s	10 to 500	5 to 500	12 to 500	6 to 500	16 to 500	8 to 800	20 to 500	10 to 500
Max. acceleration/deceleration [mm/s2]	3000
Positioning repeatability [mm]	±0.02
Lead [mm]	10	5	12	6	16	8	20	10
*Impact/Vibration resistance [m/s2]4**	50/20
Execution type	Screw
Guide type	Straight guide
Operating temperature range [°C]	5 to 40
Operating humidity range [%RH]	90 or less (non-condensing)
Motor size	28		42		56.4
Motor type	Stepper Motor (Servo/24 VDC)
Encoder	Phase A/B (800 pulses/rev)
Rated voltage [V]	24 VDC ±10%
*Power consumption [W]5**	22		38		50		100
*Standby power consumption when operating [W]6**	18		16		44		43
*Max. instantaneous power consumption [W]7**	51		57		123		141
*Type8**	Non-magnetizing lock
Holding force [N]	20	39	78	157	108	216	113	225
*Power consumption [W]9**	2.9		5
Rated voltage [V]	24 VDC ±10%
