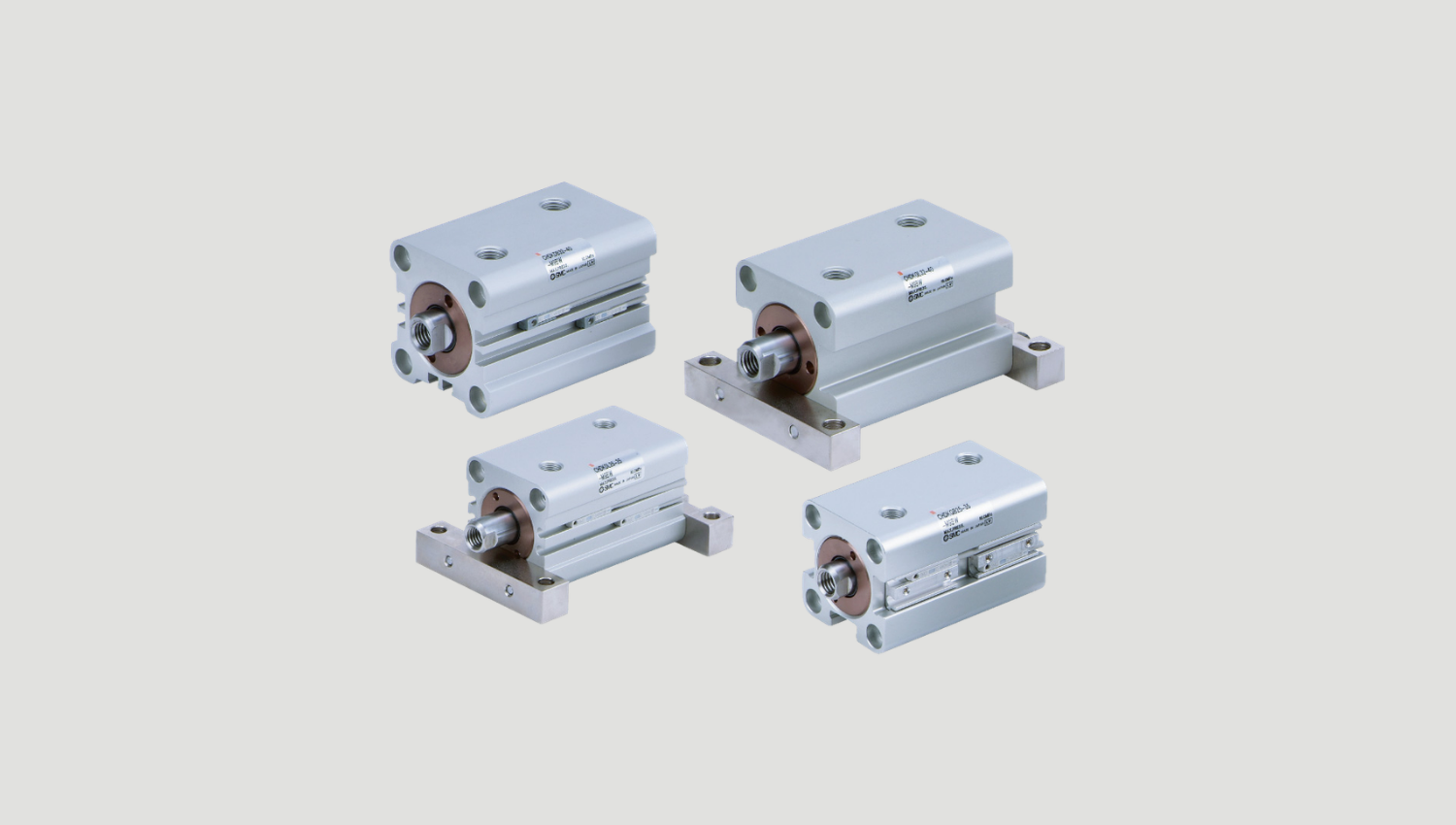

HYDRAULIC CYLINDER SMC CHK, CHDK

JIS Standard Compact Hydraulic Cylinder CHK, CHDK

Technical Information

Series Nominal pressure (MPa) Body material Action Bore Size (mm)
CHKD 10 Aluminum Double acting, Single rod 20, 25, 32, 40, 50
63, 80, 100
CHKG 16 Aluminum Double acting, Single rod 20, 25, 32, 40, 50
63, 80, 100
Specifications CHQ
Bore size (mm) 20 25 32 40 50 63 80 100
Action Double acting/Single rod
Fluid Hydraulic fluid
Nominal pressure 10 MPa
Proof pressure 15 MPa
Maximum allowable pressure 13 MPa
Minimum operating pressure 0.3 MPa
Ambient and fluid temperature Without auto switch: –10° to 80°C
With auto switch: –10° to 60°C
Piston speed 8 to 100 mm/s
Cushion None
Rod end thread Female thread, Male thread
Stroke length tolerance +1.0 mm
Mounting type Basic type (through hole), Foot type
