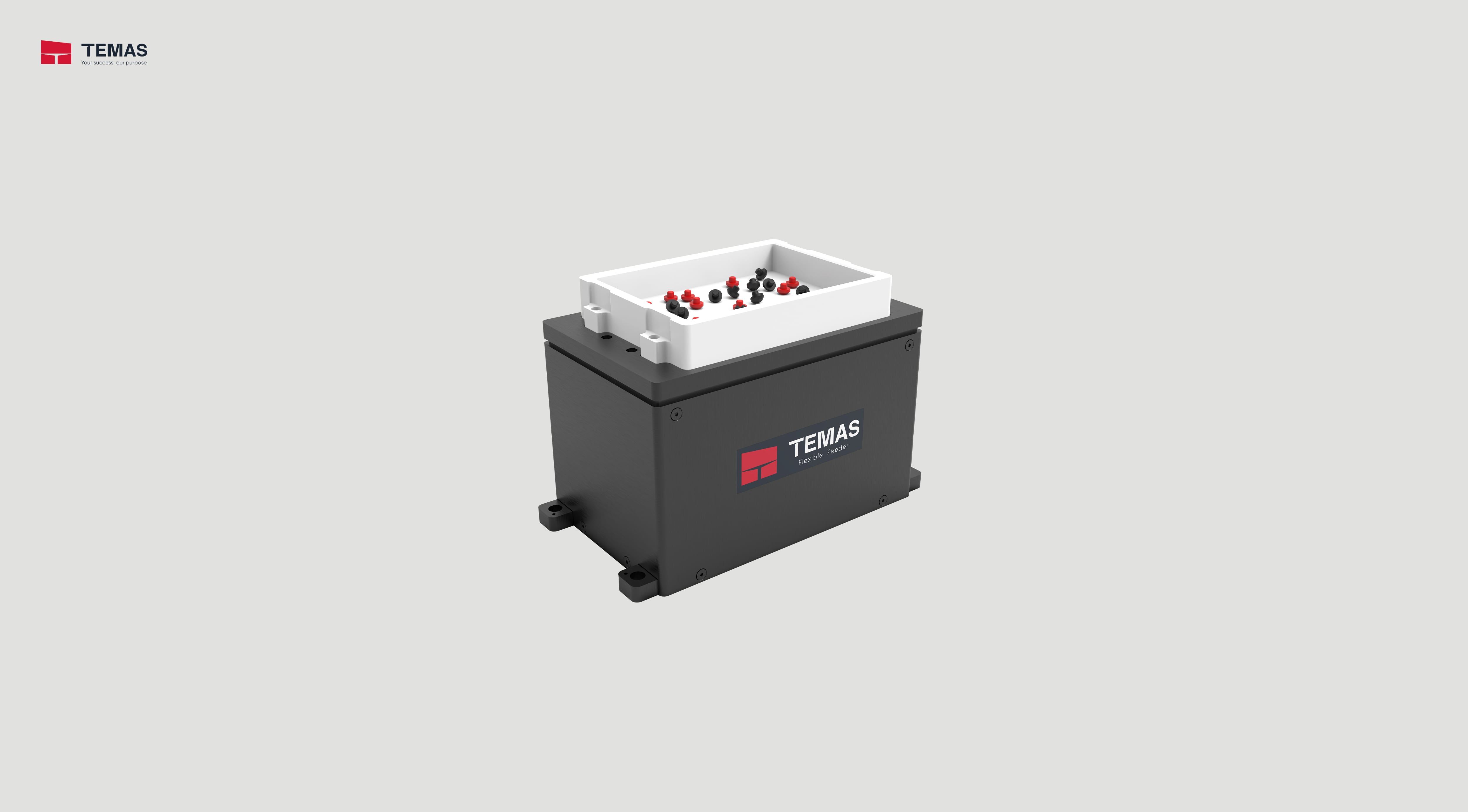

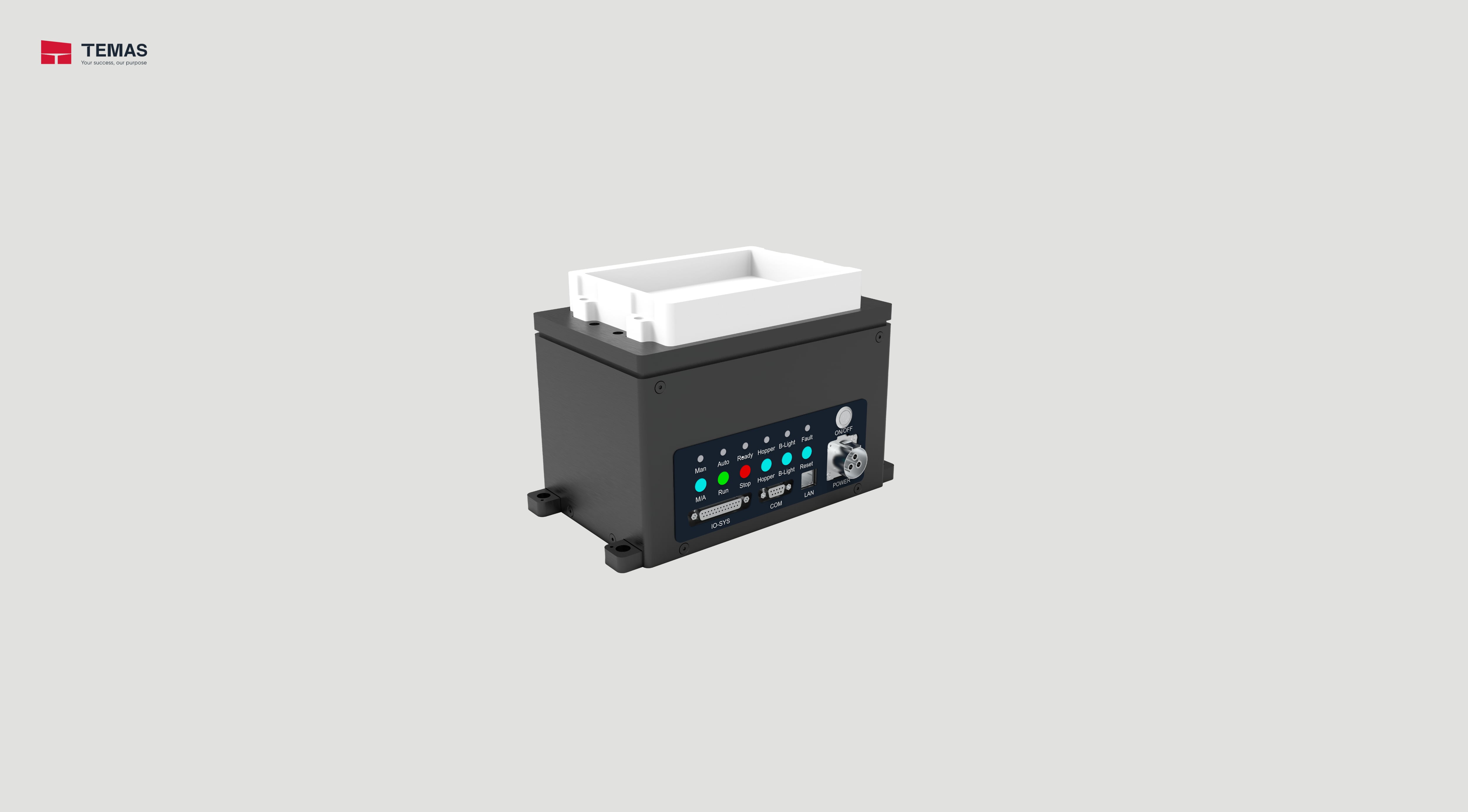

FLEXIBLE PART FEEDER TEMAS TMF-150

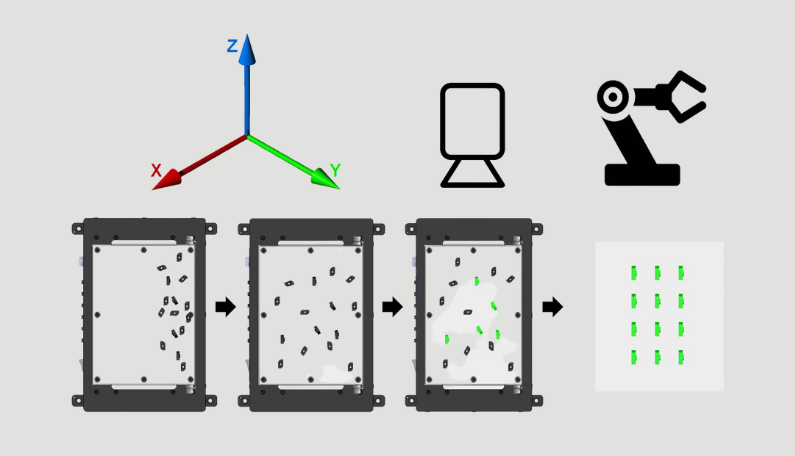

The most advanced part feeding system is based on 3D vibration technology.

Model : TMF-150, TMF-150-B

Technical Information

Item Specifications
Power Supply 24VDC/6A
Communication Interface 1xLAN ( Ethernet TCP/IP), 1xCOM, 1xDB25, (14xDigital Input, 8xDigital Output, IO NPN isolated type)
Vibration (Frequency, Stroke) Frequency range: 10~100Hz, Stroke: 0.1~5mm
Platform size 117 x 163 mm
Workpiece size 1~25 (mm)
Program Capacity 32
Library / Software .Net Framework (API)

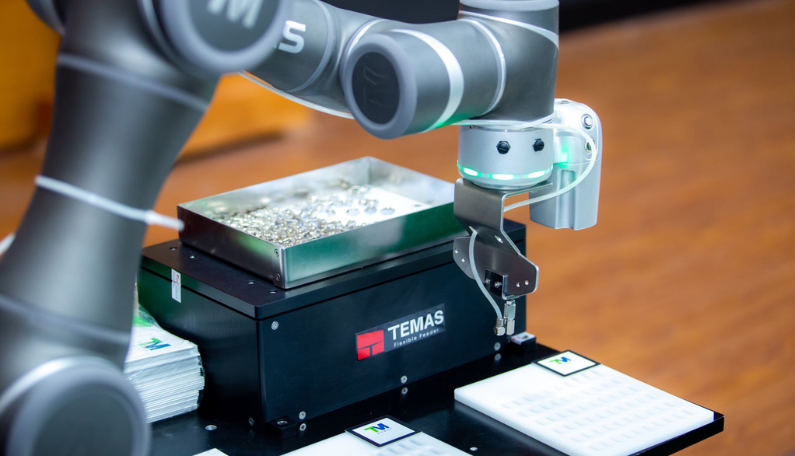

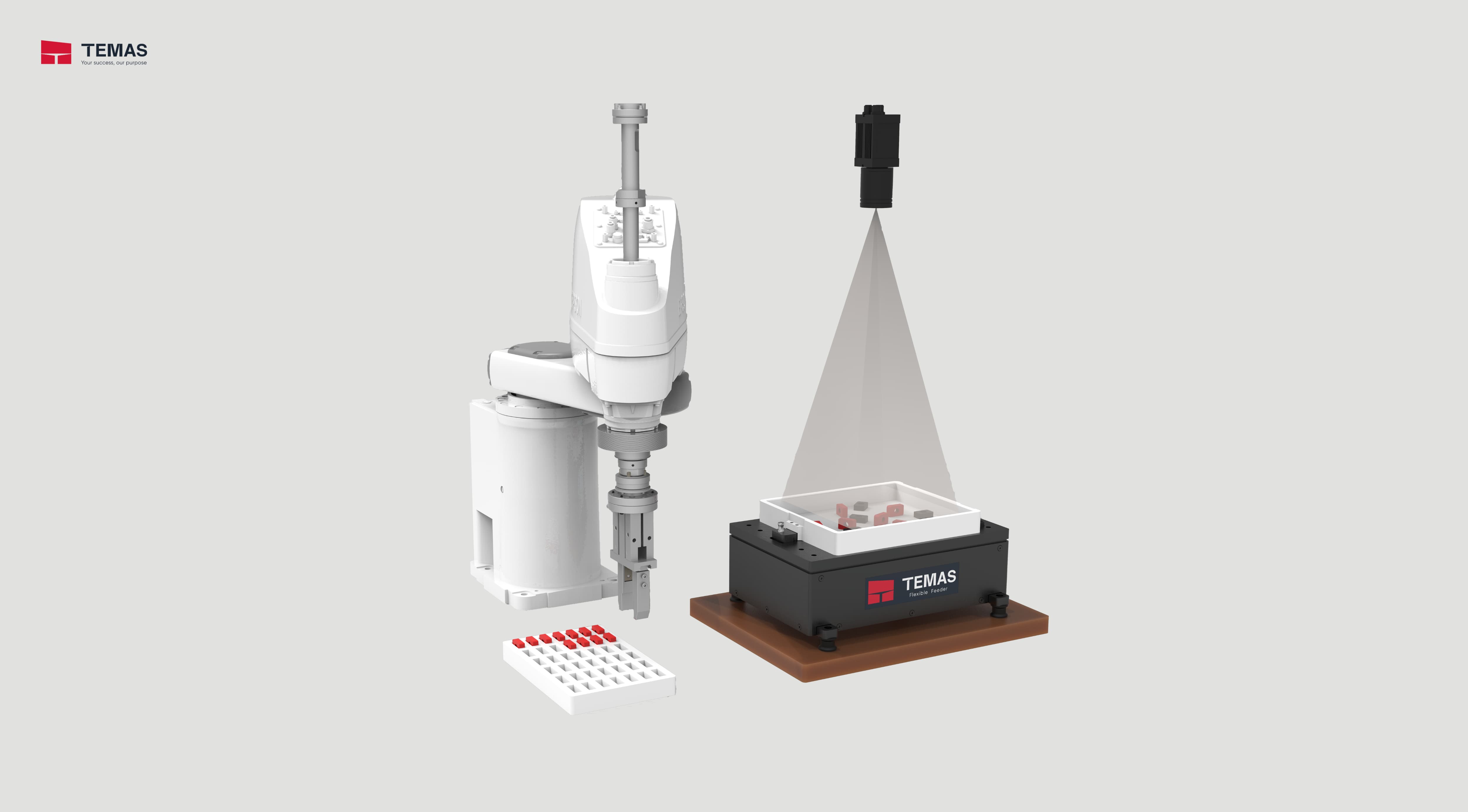

Support robot types Scara robot, 4-axis/6-axis robot and other robot types
Weight 4.5 kg

Overall Dimension

WxDxH (mm)

  149 x 236 x 182.5 (mm)

Options

LED backlight

Integrated RGB color LEDs (Red, Green, Blue, White)

Vibration plate

Flat / Holes / Grooves / Nets / etc.

Various materials

Hopper

Various hopper sizes, integrated maximum 2 x hoppers
