FR ONE-TOUCH FITTINGS MANIFOLD SMC KRM

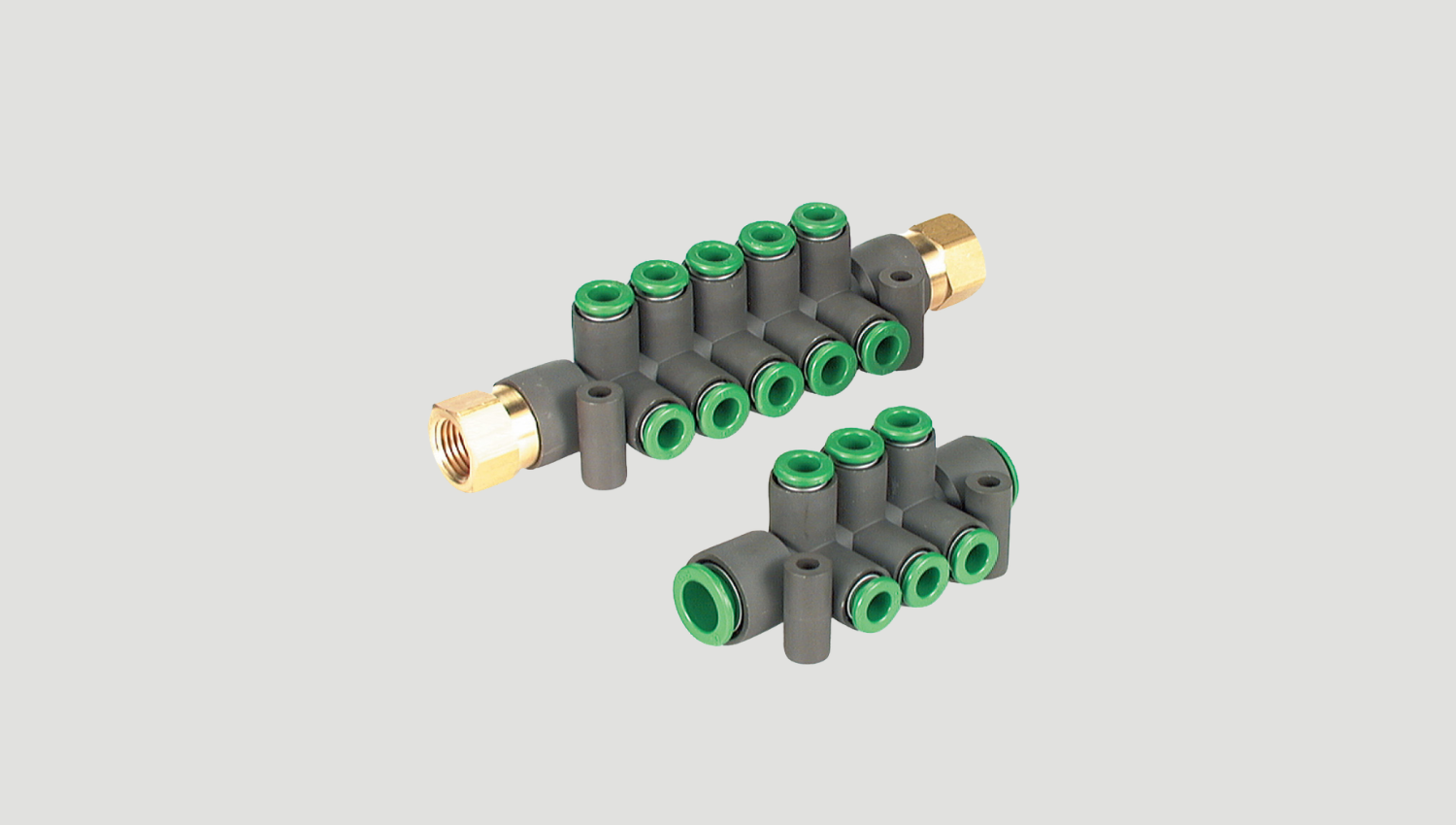

Flame Resistant (Equivalent to UL-94 Standard V-0) FR One-touch Fittings Manifold SMC KRM Series

Technical Information

Series No. of connecting tubes Applicable tubing O.D.
KRM φ6，φ8，φ10，φ12 1/4，3/8
Model KRM11 KRM12
Fluid Air/Water (1,2)
Maximum operating pressure 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature -5 to 60°C (Water: 0 to 60°C) (No freezing)
Thread -
JIS B 0203 (Taper threads for piping)
Accessory -
Hexagon socket head blank plug with sealant: 1 pc.
