Technical Information

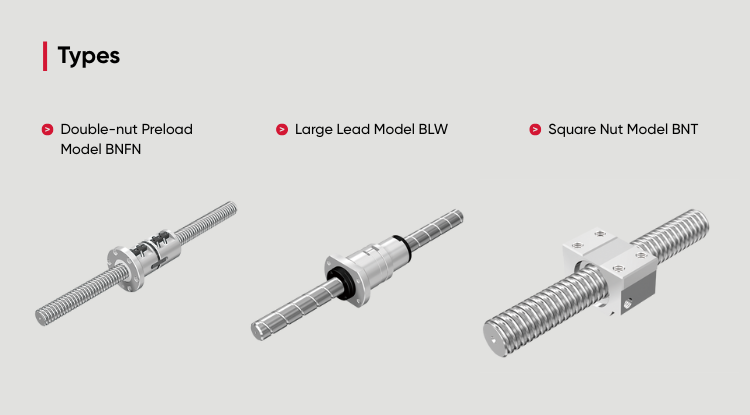

Types

  • High-Speed Ball Screw for Machine Tools Model BSM
  • Model BIF-V
  • Slim nut Model DIK
  • Model BNFN-V
  • Double-nut Preload Model BNFN
  • Slim nut Model DKN
  • Large Lead Model BLW
  • Model BNF-V
  • Single nut Model BNF
  • Slim nut Model DK
  • Large-lead High-speed Model WHF
  • Super Lead Model WGF
  • Miniature Model MDK
  • Square Nut Model BNT
  • Model MBF
  • Large Lead Model BLK

Structure and Features

Combinations of Various Shaft Diameters and Leads

You can select the combination of a shaft diameter and a lead that meets the intended use from the various nut types and the screw shaft leads. Those nut types include the return-pipe nuts, which represent the most extensive variations among the series, the compact simple nuts, and the large-lead end cap nuts.

Screw Shaft Standard Products (Unfinished Shaft Ends/Finished Shaft Ends) Available

The unfinished shaft end types, which are mass-produced by cutting the standardized screw shafts to fixed lengths, and those with finished shaft ends, for which the screw shaft ends are machined to match the corresponding support units, are available as standard.

Accuracy Standards Compliant with JIS (ISO)

The precision of the ball screw is controlled in accordance with JIS B 1192 (ISO 3408).

  Precision Ball Screw
  Rolled Ball Screw
Accuracy grades C0 C1 C2 C3 C5 C7 C8 C10



Type Series code Grade Remarks
For positioning C 0, 1, 3, 5 JIS series
Cp 1, 3, 5 ISO compliant
For transport Ct 1, 3, 5, 7, 10

Accessories that Match the Operating Environment are Available

Accessories are available, including a lubricator (QZ), which enables the maintenance interval to be significantly extended, and a wiper ring (W), which improves the ability to remove foreign materials in adverse environments.
