IN-LINE PANEL MOUNT TYPE SMC AS

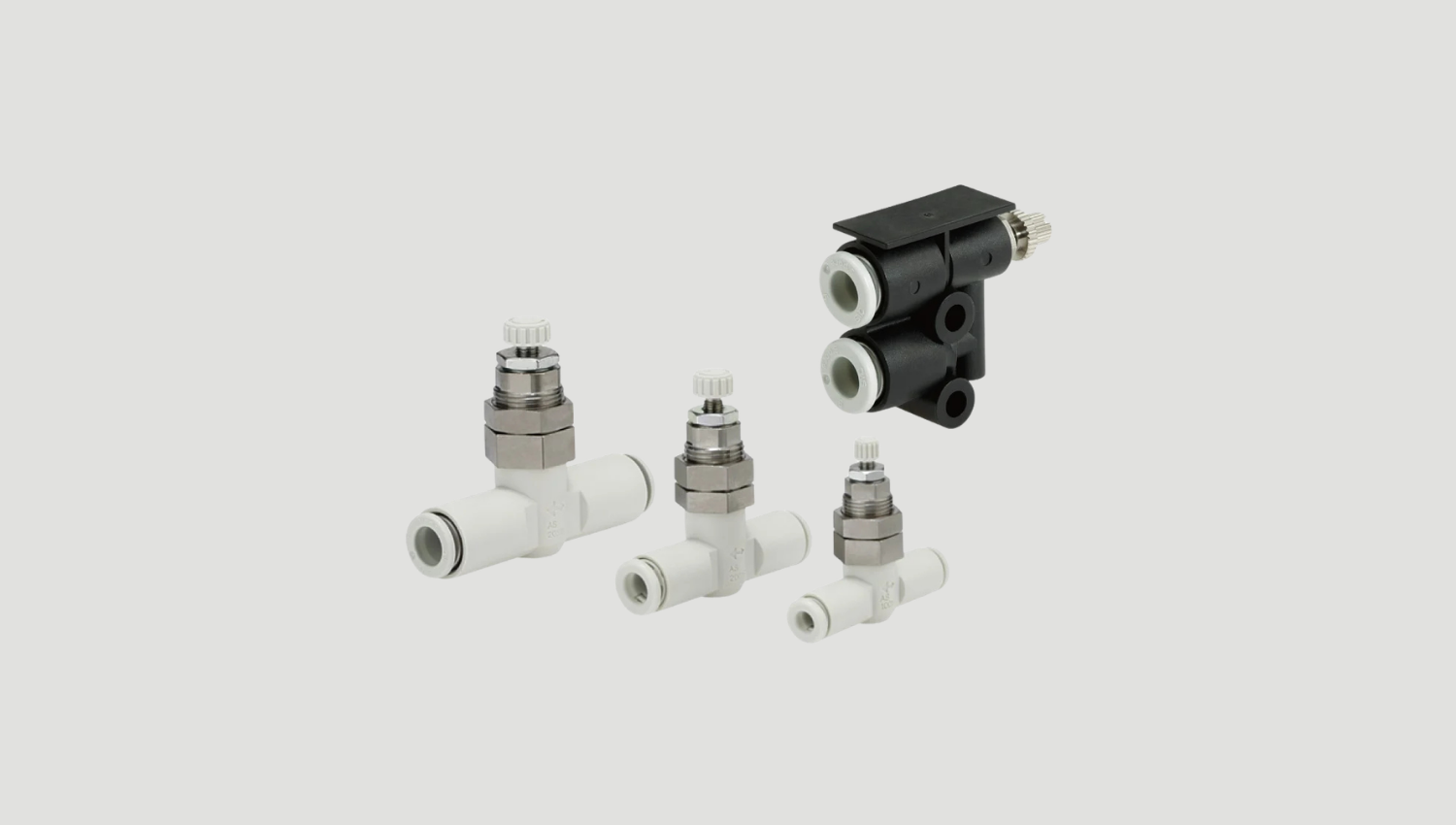

In-line Panel Mount Type AS

Technical Information

Type Series Applicable tubing O.D.
Metric size		 Applicable tubing O.D.
Inch size
Panel mount type AS□□□1F-3 φ3.2 to φ12 φ1/8'' to φ1/2''
Centralized piping type AS-DPP00092/00093 φ4，φ6 -
AS
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperatures -5 to 60°C (No freezing)
Applicable tubing material Nylon, Soft nylon, Polyurethane
