Standard AC motors are used generally as power sources for automated devices because these motors can be operated easily through connection to an AC power supply.
Temas offers Oriental Motor standard AC motors incorporating various operating functions. A standard AC motor can be combined with a brake pack or speed control circuit product and also combined with mechanical component such as a gearhead or linear head. Various applications can be supported.

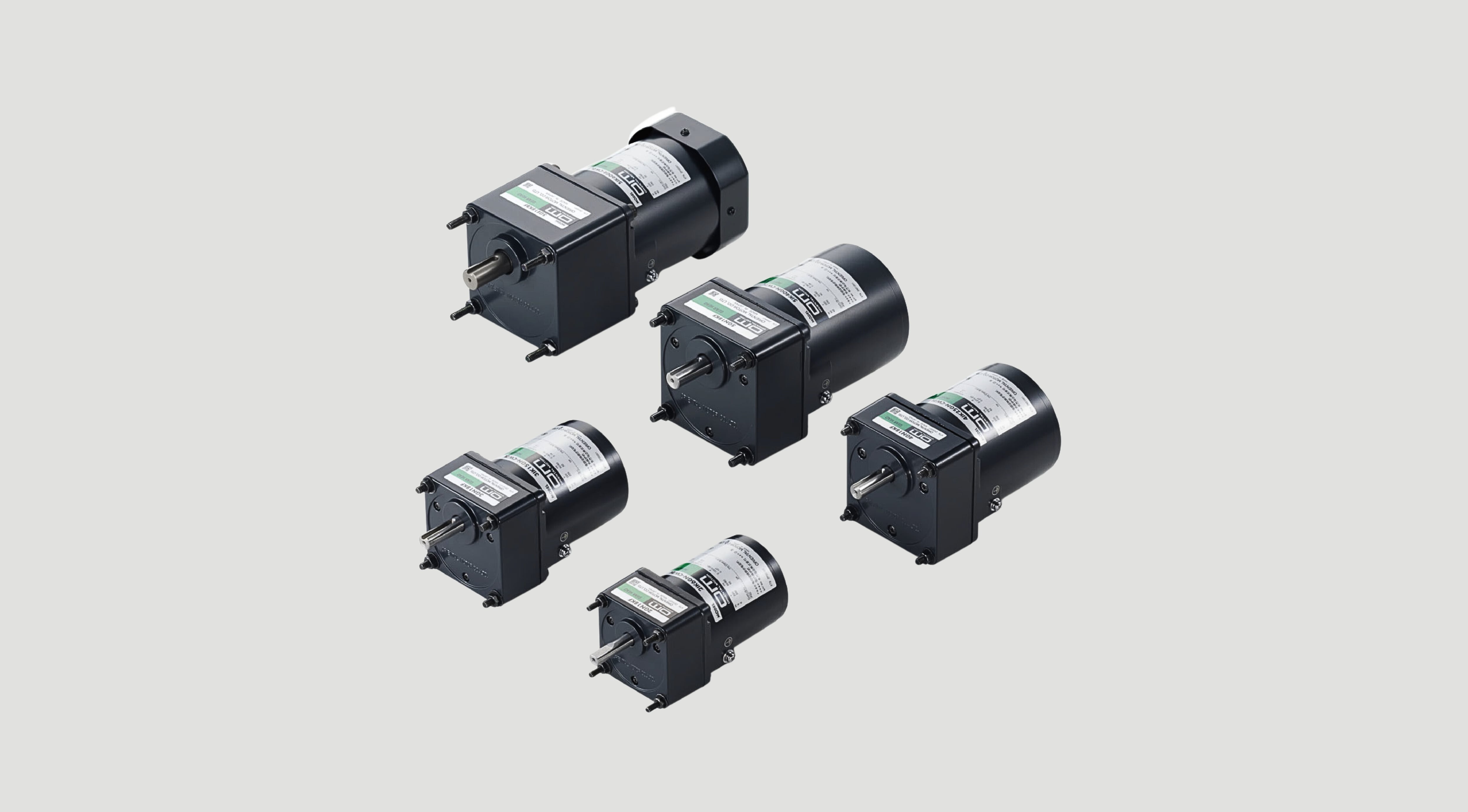

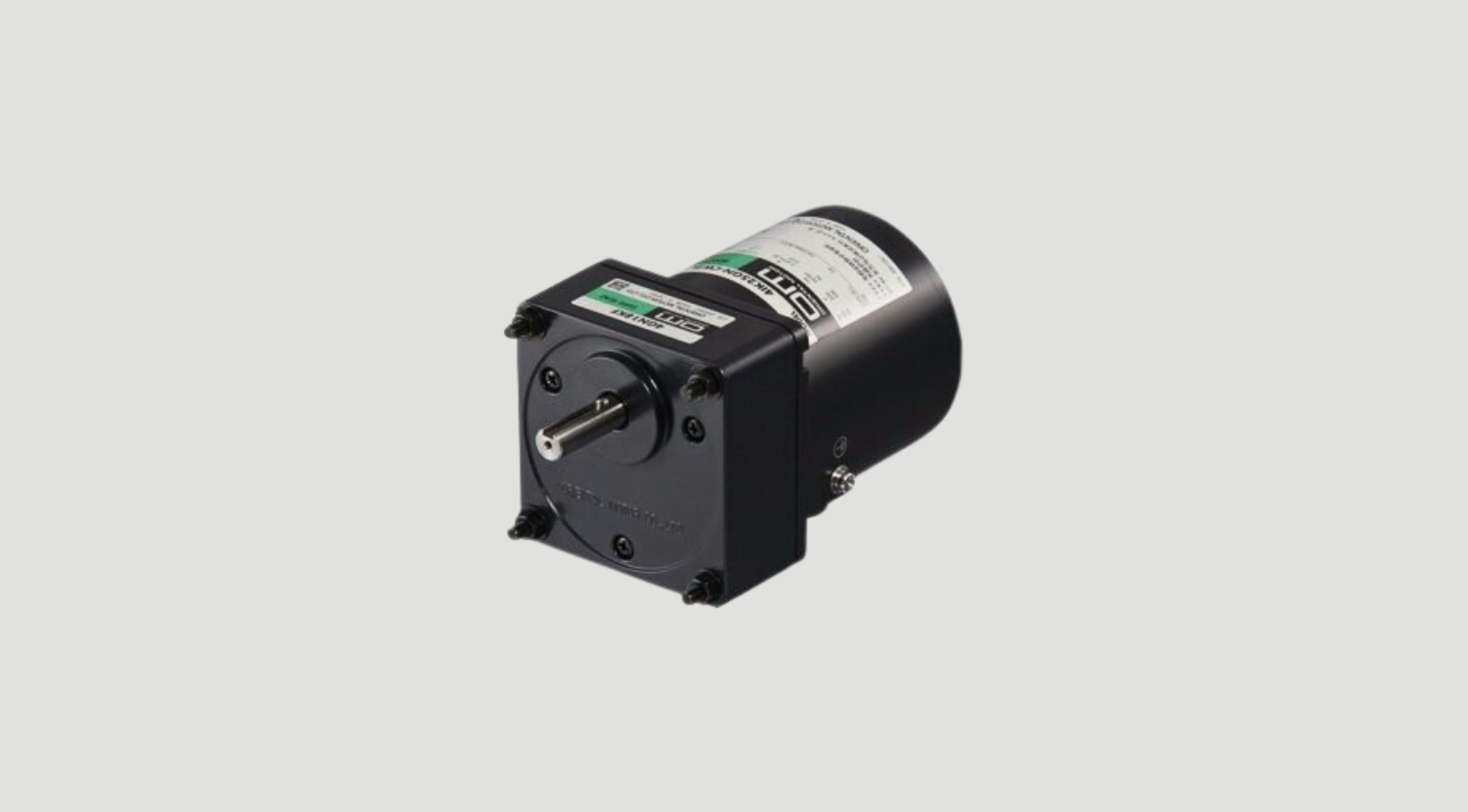

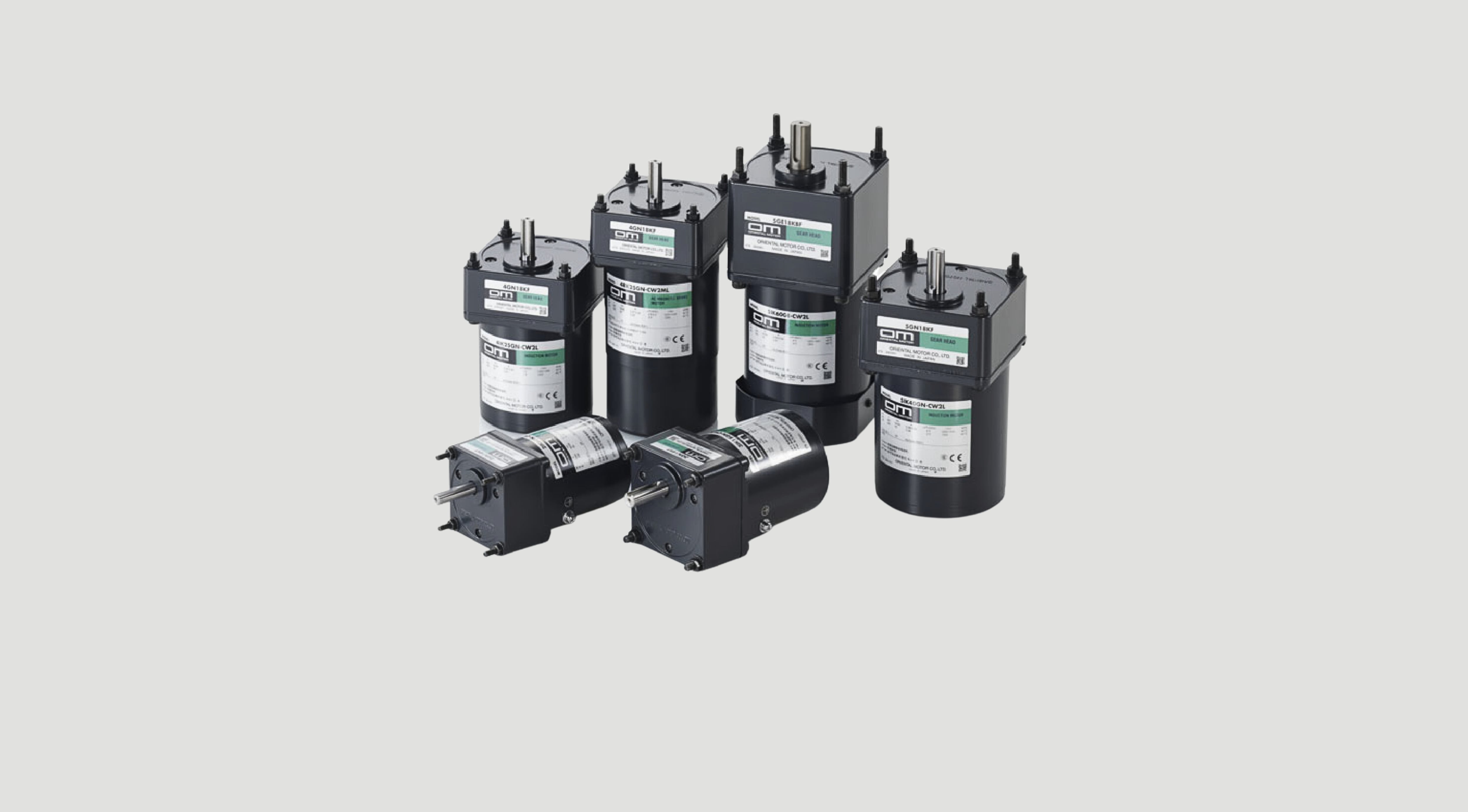

World K Series models that conform to power supply voltages in Asia are certified under the CCC System and have built-in overheat protection devices.
These models provide high cost performance with the same functions as World K Series models that conform to global power supply voltages.
The product lineup includes models with output power from 6 W to 90 W.
| Series | Power Supply Voltage [VAC] |
Upper Level: Frame Size [mm] /Lower Level: Output Power [W] |
||||||
| Type | 60 | 70 | 80 | 90 | ||||
| 6 | 15 | 25 | 40 | 60 | 90 | |||
| Induction Motors World K Series | Single-Phase 110 | Lead Wire | ● | ● | ● | ● | ● | ● |
| Single-Phase 220/230 | ||||||||
| Three-Phase 200/220 | ||||||||
List of Oriental Induction motors (classified by Power supply voltage and Output):
| Power Supply Voltage (VAC) | Output Power [W] | |||||
| Single-Phase 110V | 6 | 15 | 25 | 40 | 60 | 90 |
| Single-Phase 110VAC | - | - | 25 | 40 | 60 | 90 |
| Single-Phase 220/230VAC | 6 | 15 | 25 | 40 | 60 | 90 |
| Three-Phase 200/220V | 6 | 15 | 25 | 40 | 60 | 90 |
| Product Name | Voltage | Rated Torque | Speed | Permissible Torque | Frame Size | Shaft/Gear Type | Gear Ratio | Type | Output |
|---|---|---|---|---|---|---|---|---|---|
| 2IK6A-AW2L2 | Single-Phase 110V | 41mN･m | 1800r/min | - | 60mm | Round Shaft Type | - | Lead Wire Type | 6W |
| 2IK6A-CW2L2 | Single-Phase 220/230VAC | 49mN･m (50Hz) | 1500r/min (50Hz) | - | 60mm | Round Shaft Type | - | Lead Wire Type | 6W |
| 2IK6A-EW2G | Single-Phase 220/230VAC | 49mN･m | 1800r/min | - | 60mm | Round Shaft Type | - | Lead Wire Type | 6W |
| 2IK6A-SW2L | Three-Phase 200/220V | 41mN･m | 1800r/min | - | 60mm | Round Shaft Type | - | Lead Wire Type | 6W |
| 2IK6GN-AW2L2 | Single-Phase 110V | - | - | - | 60mm | Pinion Shaft Type | - | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN100KF | Single-Phase 110V | - | 18r/min | 2.7N･m | 60mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN12.5KF | Single-Phase 110V | - | 144r/min | 0.42N･m | 60mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN120KF | Single-Phase 110V | - | 15r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN150KF | Single-Phase 110V | - | 12r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN15KF | Single-Phase 110V | - | 120r/min | 0.5N･m | 60mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN180KF | Single-Phase 110V | - | 10r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN18KF | Single-Phase 110V | - | 100r/min | 0.6N･m | 60mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN25KF | Single-Phase 110V | - | 72r/min | 0.75N･m | 60mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN3.6KF | Single-Phase 110V | - | 500r/min | 0.12N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN30KF | Single-Phase 110V | - | 60r/min | 0.9N･m | 60mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN36KF | Single-Phase 110V | - | 50r/min | 1.1N･m | 60mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN3KF | Single-Phase 110V | - | 600r/min | 0.1N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN50KF | Single-Phase 110V | - | 36r/min | 1.4N･m | 60mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN5KF | Single-Phase 110V | - | 360r/min | 0.17N･m | 60mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN60KF | Single-Phase 110V | - | 30r/min | 1.6N･m | 60mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN6KF | Single-Phase 110V | - | 300r/min | 0.2N･m | 60mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN7.5KF | Single-Phase 110V | - | 240r/min | 0.25N･m | 60mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN75KF | Single-Phase 110V | - | 24r/min | 2N･m | 60mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN90KF | Single-Phase 110V | - | 20r/min | 2.4N･m | 60mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 6W |
| 2IK6GN-AW2L2+2GN9KF | Single-Phase 110V | - | 200r/min | 0.3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2 | Single-Phase 220/230VAC | - | - | - | 60mm | Pinion Shaft Type | - | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN100KF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN12.5KF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 0.5N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN120KF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN150KF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN15KF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 0.6N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN180KF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN18KF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 0.71N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN25KF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 0.89N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN3.6KF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.14N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN30KF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 1.1N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN36KF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 1.3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN3KF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.12N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN50KF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 1.6N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN5KF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 0.2N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN60KF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 1.9N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN6KF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 0.24N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN7.5KF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 0.3N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN75KF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 2.4N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN90KF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 2.9N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 6W |
| 2IK6GN-CW2L2+2GN9KF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 0.36N･m (50Hz) | 60mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 6W |
| 2IK6GN-EW2G | Single-Phase 220/230VAC | - | - | - | 60mm | Pinion Shaft Type | - | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN100KF | Single-Phase 220/230VAC | - | 15r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN12.5KF | Single-Phase 220/230VAC | - | 120r/min | 0.50N･m | 60mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN120KF | Single-Phase 220/230VAC | - | 12.5r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN150KF | Single-Phase 220/230VAC | - | 10r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN15KF | Single-Phase 220/230VAC | - | 100r/min | 0.60N･m | 60mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN180KF | Single-Phase 220/230VAC | - | 8.3r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN18KF | Single-Phase 220/230VAC | - | 83r/min | 0.71N･m | 60mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN25KF | Single-Phase 220/230VAC | - | 60r/min | 0.89N･m | 60mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN3.6KF | Single-Phase 220/230VAC | - | 417r/min | 0.14N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN30KF | Single-Phase 220/230VAC | - | 50r/min | 1.1N･m | 60mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN36KF | Single-Phase 220/230VAC | - | 42r/min | 1.3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN3KF | Single-Phase 220/230VAC | - | 500r/min | 0.12N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN50KF | Single-Phase 220/230VAC | - | 30r/min | 1.6N･m | 60mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN5KF | Single-Phase 220/230VAC | - | 300r/min | 0.20N･m | 60mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN60KF | Single-Phase 220/230VAC | - | 25r/min | 1.9N･m | 60mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN6KF | Single-Phase 220/230VAC | - | 250r/min | 0.24N･m | 60mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN7.5KF | Single-Phase 220/230VAC | - | 200r/min | 0.30N･m | 60mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN75KF | Single-Phase 220/230VAC | - | 20r/min | 2.4N･m | 60mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN90KF | Single-Phase 220/230VAC | - | 17r/min | 2.9N･m | 60mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 6W |
| 2IK6GN-EW2G+2GN9KF | Single-Phase 220/230VAC | - | 167r/min | 0.36N･m | 60mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 6W |
| 2IK6GN-SW2L | Three-Phase 200/220V | - | - | - | 60mm | Pinion Shaft Type | - | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN100KF | Three-Phase 200/220V | - | 18r/min | 2.7N･m | 60mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN12.5KF | Three-Phase 200/220V | - | 144r/min | 0.42N･m | 60mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN120KF | Three-Phase 200/220V | - | 15r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN150KF | Three-Phase 200/220V | - | 12r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN15KF | Three-Phase 200/220V | - | 120r/min | 0.5N･m | 60mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN180KF | Three-Phase 200/220V | - | 10r/min | 3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN18KF | Three-Phase 200/220V | - | 100r/min | 0.6N･m | 60mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN25KF | Three-Phase 200/220V | - | 72r/min | 0.75N･m | 60mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN3.6KF | Three-Phase 200/220V | - | 500r/min | 0.12N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN30KF | Three-Phase 200/220V | - | 60r/min | 0.9N･m | 60mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN36KF | Three-Phase 200/220V | - | 50r/min | 1.1N･m | 60mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN3KF | Three-Phase 200/220V | - | 600r/min | 0.1N･m | 60mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN50KF | Three-Phase 200/220V | - | 36r/min | 1.4N･m | 60mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN5KF | Three-Phase 200/220V | - | 360r/min | 0.17N･m | 60mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN60KF | Three-Phase 200/220V | - | 30r/min | 1.6N･m | 60mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN6KF | Three-Phase 200/220V | - | 300r/min | 0.2N･m | 60mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN7.5KF | Three-Phase 200/220V | - | 240r/min | 0.25N･m | 60mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN75KF | Three-Phase 200/220V | - | 24r/min | 2N･m | 60mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN90KF | Three-Phase 200/220V | - | 20r/min | 2.4N･m | 60mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 6W |
| 2IK6GN-SW2L+2GN9KF | Three-Phase 200/220V | - | 200r/min | 0.3N･m | 60mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 6W |
| 3IK15A-AW2L2 | Single-Phase 110V | 105mN･m | 1800r/min | - | 70mm | Round Shaft Type | - | Lead Wire Type | 15W |
| 3IK15A-CW2L2 | Single-Phase 220/230VAC | 125mN･m (50Hz) | 1500r/min (50Hz) | - | 70mm | Round Shaft Type | - | Lead Wire Type | 15W |
| 3IK15A-EW2G | Single-Phase 220/230VAC | 125mN･m | 1800r/min | - | 70mm | Round Shaft Type | - | Lead Wire Type | 15W |
| 3IK15A-SW2L | Three-Phase 200/220V | 100mN･m | 1800r/min | - | 70mm | Round Shaft Type | - | Lead Wire Type | 15W |
| 3IK15GN-AW2L2 | Single-Phase 110V | - | - | - | 70mm | Pinion Shaft Type | - | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN100KF | Single-Phase 110V | - | 18r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN12.5KF | Single-Phase 110V | - | 144r/min | 1.1N･m | 70mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN120KF | Single-Phase 110V | - | 15r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN150KF | Single-Phase 110V | - | 12r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN15KF | Single-Phase 110V | - | 120r/min | 1.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN180KF | Single-Phase 110V | - | 10r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN18KF | Single-Phase 110V | - | 100r/min | 1.5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN25KF | Single-Phase 110V | - | 72r/min | 1.9N･m | 70mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN3.6KF | Single-Phase 110V | - | 500r/min | 0.31N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN30KF | Single-Phase 110V | - | 60r/min | 2.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN36KF | Single-Phase 110V | - | 50r/min | 2.8N･m | 70mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN3KF | Single-Phase 110V | - | 600r/min | 0.26N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN50KF | Single-Phase 110V | - | 36r/min | 3.5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN5KF | Single-Phase 110V | - | 360r/min | 0.43N･m | 70mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN60KF | Single-Phase 110V | - | 30r/min | 4.2N･m | 70mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN6KF | Single-Phase 110V | - | 300r/min | 0.51N･m | 70mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN7.5KF | Single-Phase 110V | - | 240r/min | 0.64N･m | 70mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN75KF | Single-Phase 110V | - | 24r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN90KF | Single-Phase 110V | - | 20r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 15W |
| 3IK15GN-AW2L2+3GN9KF | Single-Phase 110V | - | 200r/min | 0.77N･m | 70mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2 | Single-Phase 220/230VAC | - | - | - | 70mm | Pinion Shaft Type | - | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN100KF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN12.5KF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 1.3N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN120KF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN150KF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN15KF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 1.5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN180KF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN18KF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 1.8N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN25KF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 2.3N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN3.6KF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.36N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN30KF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 2.7N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN36KF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 3.3N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN3KF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.3N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN50KF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 4.1N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN5KF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 0.51N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN60KF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN6KF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 0.61N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN7.5KF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 0.76N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN75KF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN90KF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 5N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 15W |
| 3IK15GN-CW2L2+3GN9KF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 0.91N･m (50Hz) | 70mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 15W |
| 3IK15GN-EW2G | Single-Phase 220/230VAC | - | - | - | 70mm | Pinion Shaft Type | - | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN100KF | Single-Phase 220/230VAC | - | 15r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN12.5KF | Single-Phase 220/230VAC | - | 120r/min | 1.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN120KF | Single-Phase 220/230VAC | - | 12.5r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN150KF | Single-Phase 220/230VAC | - | 10r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN15KF | Single-Phase 220/230VAC | - | 100r/min | 1.5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN180KF | Single-Phase 220/230VAC | - | 8.3r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN18KF | Single-Phase 220/230VAC | - | 83r/min | 1.8N･m | 70mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN25KF | Single-Phase 220/230VAC | - | 60r/min | 2.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN3.6KF | Single-Phase 220/230VAC | - | 417r/min | 0.36N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN30KF | Single-Phase 220/230VAC | - | 50r/min | 2.7N･m | 70mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN36KF | Single-Phase 220/230VAC | - | 42r/min | 3.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN3KF | Single-Phase 220/230VAC | - | 500r/min | 0.30N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN50KF | Single-Phase 220/230VAC | - | 30r/min | 4.1N･m | 70mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN5KF | Single-Phase 220/230VAC | - | 300r/min | 0.51N･m | 70mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN60KF | Single-Phase 220/230VAC | - | 25r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN6KF | Single-Phase 220/230VAC | - | 250r/min | 0.61N･m | 70mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN7.5KF | Single-Phase 220/230VAC | - | 200r/min | 0.76N･m | 70mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN75KF | Single-Phase 220/230VAC | - | 20r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN90KF | Single-Phase 220/230VAC | - | 17r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 15W |
| 3IK15GN-EW2G+3GN9KF | Single-Phase 220/230VAC | - | 167r/min | 0.91N･m | 70mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 15W |
| 3IK15GN-SW2L | Three-Phase 200/220V | - | - | - | 70mm | Pinion Shaft Type | - | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN100KF | Three-Phase 200/220V | - | 18r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN12.5KF | Three-Phase 200/220V | - | 144r/min | 1.0N･m | 70mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN120KF | Three-Phase 200/220V | - | 15r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN150KF | Three-Phase 200/220V | - | 12r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN15KF | Three-Phase 200/220V | - | 120r/min | 1.2N･m | 70mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN180KF | Three-Phase 200/220V | - | 10r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN18KF | Three-Phase 200/220V | - | 100r/min | 1.5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN25KF | Three-Phase 200/220V | - | 72r/min | 1.8N･m | 70mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN3.6KF | Three-Phase 200/220V | - | 500r/min | 0.29N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN30KF | Three-Phase 200/220V | - | 60r/min | 2.2N･m | 70mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN36KF | Three-Phase 200/220V | - | 50r/min | 2.6N･m | 70mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN3KF | Three-Phase 200/220V | - | 600r/min | 0.24N･m | 70mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN50KF | Three-Phase 200/220V | - | 36r/min | 3.3N･m | 70mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN5KF | Three-Phase 200/220V | - | 360r/min | 0.41N･m | 70mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN60KF | Three-Phase 200/220V | - | 30r/min | 4.0N･m | 70mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN6KF | Three-Phase 200/220V | - | 300r/min | 0.49N･m | 70mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN7.5KF | Three-Phase 200/220V | - | 240r/min | 0.61N･m | 70mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN75KF | Three-Phase 200/220V | - | 24r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN90KF | Three-Phase 200/220V | - | 20r/min | 5N･m | 70mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 15W |
| 3IK15GN-SW2L+3GN9KF | Three-Phase 200/220V | - | 200r/min | 0.73N･m | 70mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 15W |
| 4IK25A-AW2L2 | Single-Phase 110V | 170mN･m | 1800r/min | - | 80mm | Round Shaft Type | - | Lead Wire Type | 25W |
| 4IK25A-CW2L2 | Single-Phase 220/230VAC | 205mN･m (50Hz) | 1500r/min (50Hz) | - | 80mm | Round Shaft Type | - | Lead Wire Type | 25W |
| 4IK25A-EW2G | Single-Phase 220/230VAC | 205mN･m | 1800r/min | - | 80mm | Round Shaft Type | - | Lead Wire Type | 25W |
| 4IK25A-SW2L | Three-Phase 200/220V | 160mN･m | 1800r/min | - | 80mm | Round Shaft Type | - | Lead Wire Type | 25W |
| 4IK25GN-AW2L2 | Single-Phase 110V | - | - | - | 80mm | Pinion Shaft Type | - | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN100KF | Single-Phase 110V | - | 18r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN100RA | Single-Phase 110VAC | - | 18r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN100RH | Single-Phase 110VAC | - | 18r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN12.5KF | Single-Phase 110V | - | 144r/min | 1.7N･m | 80mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN12.5RA | Single-Phase 110VAC | - | 144r/min | 1.7N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN12.5RH | Single-Phase 110VAC | - | 144r/min | 1.7N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN120KF | Single-Phase 110V | - | 15r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN120RA | Single-Phase 110VAC | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN120RH | Single-Phase 110VAC | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN150KF | Single-Phase 110V | - | 12r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN150RA | Single-Phase 110VAC | - | 12r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN150RH | Single-Phase 110VAC | - | 12r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN15KF | Single-Phase 110V | - | 120r/min | 2.1N･m | 80mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN15RA | Single-Phase 110VAC | - | 120r/min | 2.1N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN15RH | Single-Phase 110VAC | - | 120r/min | 2.1N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN180KF | Single-Phase 110V | - | 10r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN180RA | Single-Phase 110VAC | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN180RH | Single-Phase 110VAC | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN18KF | Single-Phase 110V | - | 100r/min | 2.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN18RA | Single-Phase 110VAC | - | 100r/min | 2.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN18RH | Single-Phase 110VAC | - | 100r/min | 2.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN25KF | Single-Phase 110V | - | 72r/min | 3.1N･m | 80mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN25RA | Single-Phase 110VAC | - | 72r/min | 3.1N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN25RH | Single-Phase 110VAC | - | 72r/min | 3.1N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3.6KF | Single-Phase 110V | - | 500r/min | 0.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3.6RA | Single-Phase 110VAC | - | 500r/min | 0.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3.6RH | Single-Phase 110VAC | - | 500r/min | 0.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN30KF | Single-Phase 110V | - | 60r/min | 3.7N･m | 80mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN30RA | Single-Phase 110VAC | - | 60r/min | 3.7N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN30RH | Single-Phase 110VAC | - | 60r/min | 3.7N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN36KF | Single-Phase 110V | - | 50r/min | 4.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN36RA | Single-Phase 110VAC | - | 50r/min | 4.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN36RH | Single-Phase 110VAC | - | 50r/min | 4.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3KF | Single-Phase 110V | - | 600r/min | 0.41N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3RA | Single-Phase 110VAC | - | 600r/min | 0.41N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN3RH | Single-Phase 110VAC | - | 600r/min | 0.41N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN50KF | Single-Phase 110V | - | 36r/min | 5.6N･m | 80mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN50RA | Single-Phase 110VAC | - | 36r/min | 5.6N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN50RH | Single-Phase 110VAC | - | 36r/min | 5.6N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN5KF | Single-Phase 110V | - | 360r/min | 0.69N･m | 80mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN5RA | Single-Phase 110VAC | - | 360r/min | 0.69N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN5RH | Single-Phase 110VAC | - | 360r/min | 0.69N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN60KF | Single-Phase 110V | - | 30r/min | 6.7N･m | 80mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN60RA | Single-Phase 110VAC | - | 30r/min | 6.7N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN60RH | Single-Phase 110VAC | - | 30r/min | 6.7N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN6KF | Single-Phase 110V | - | 300r/min | 0.83N･m | 80mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN6RA | Single-Phase 110VAC | - | 300r/min | 0.83N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN6RH | Single-Phase 110VAC | - | 300r/min | 0.83N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN7.5KF | Single-Phase 110V | - | 240r/min | 1N･m | 80mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN7.5RA | Single-Phase 110VAC | - | 240r/min | 1N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN7.5RH | Single-Phase 110VAC | - | 240r/min | 1N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN75KF | Single-Phase 110V | - | 24r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN75RA | Single-Phase 110VAC | - | 24r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN75RH | Single-Phase 110VAC | - | 24r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN90KF | Single-Phase 110V | - | 20r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN90RA | Single-Phase 110VAC | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN90RH | Single-Phase 110VAC | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN9KF | Single-Phase 110V | - | 200r/min | 1.2N･m | 80mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN9RA | Single-Phase 110VAC | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-AW2L2+4GN9RH | Single-Phase 110VAC | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2 | Single-Phase 220/230VAC | - | - | - | 80mm | Pinion Shaft Type | - | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN100KF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN100RA | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN100RH | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN12.5KF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 2.1N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN12.5RA | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 2.1N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN12.5RH | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 2.1N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN120KF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN120RA | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN120RH | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN150KF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN150RA | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN150RH | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN15KF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 2.5N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN15RA | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 2.5N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN15RH | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 2.5N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN180KF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN180RA | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN180RH | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN18KF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 3N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN18RA | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 3N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN18RH | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 3N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN25KF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 3.7N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN25RA | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 3.7N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN25RH | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 3.7N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3.6KF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.6N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3.6RA | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.6N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3.6RH | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.6N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN30KF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 4.5N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN30RA | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 4.5N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN30RH | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 4.5N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN36KF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 5.4N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN36RA | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 5.4N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN36RH | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 5.4N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3KF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.5N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3RA | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.5N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN3RH | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.5N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN50KF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 6.8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN50RA | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 6.8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN50RH | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 6.8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN5KF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 0.83N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN5RA | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 0.83N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN5RH | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 0.83N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN60KF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN60RA | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN60RH | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN6KF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN6RA | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN6RH | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN7.5KF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.2N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN7.5RA | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.2N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN7.5RH | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.2N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN75KF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN75RA | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN75RH | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN90KF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 8N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN90RA | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN90RH | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 8N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN9KF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 1.5N･m (50Hz) | 80mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN9RA | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 1.5N･m (50Hz) | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-CW2L2+4GN9RH | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 1.5N･m (50Hz) | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-EW2G | Single-Phase 220/230VAC | - | - | - | 80mm | Pinion Shaft Type | - | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN100KF | Single-Phase 220/230VAC | - | 15r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN100RA | Single-Phase 220/230VAC | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN100RH | Single-Phase 220/230VAC | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN12.5KF | Single-Phase 220/230VAC | - | 120r/min | 2.1N･m | 80mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN12.5RA | Single-Phase 220/230VAC | - | 120r/min | 2.1N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN12.5RH | Single-Phase 220/230VAC | - | 120r/min | 2.1N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN120KF | Single-Phase 220/230VAC | - | 12.5r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN120RA | Single-Phase 220/230VAC | - | 12.5r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN120RH | Single-Phase 220/230VAC | - | 12.5r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN150KF | Single-Phase 220/230VAC | - | 10r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN150RA | Single-Phase 220/230VAC | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN150RH | Single-Phase 220/230VAC | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN15KF | Single-Phase 220/230VAC | - | 100r/min | 2.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN15RA | Single-Phase 220/230VAC | - | 100r/min | 2.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN15RH | Single-Phase 220/230VAC | - | 100r/min | 2.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN180KF | Single-Phase 220/230VAC | - | 8.3r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN180RA | Single-Phase 220/230VAC | - | 8.3r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN180RH | Single-Phase 220/230VAC | - | 8.3r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN18KF | Single-Phase 220/230VAC | - | 83r/min | 3.0N･m | 80mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN18RA | Single-Phase 220/230VAC | - | 83r/min | 3.0N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN18RH | Single-Phase 220/230VAC | - | 83r/min | 3.0N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN25KF | Single-Phase 220/230VAC | - | 60r/min | 3.7N･m | 80mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN25RA | Single-Phase 220/230VAC | - | 60r/min | 3.7N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN25RH | Single-Phase 220/230VAC | - | 60r/min | 3.7N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3.6KF | Single-Phase 220/230VAC | - | 417r/min | 0.60N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3.6RA | Single-Phase 220/230VAC | - | 417r/min | 0.60N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3.6RH | Single-Phase 220/230VAC | - | 417r/min | 0.60N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN30KF | Single-Phase 220/230VAC | - | 50r/min | 4.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN30RA | Single-Phase 220/230VAC | - | 50r/min | 4.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN30RH | Single-Phase 220/230VAC | - | 50r/min | 4.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN36KF | Single-Phase 220/230VAC | - | 42r/min | 5.4N･m | 80mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN36RA | Single-Phase 220/230VAC | - | 42r/min | 5.4N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN36RH | Single-Phase 220/230VAC | - | 42r/min | 5.4N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3KF | Single-Phase 220/230VAC | - | 500r/min | 0.50N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3RA | Single-Phase 220/230VAC | - | 500r/min | 0.50N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN3RH | Single-Phase 220/230VAC | - | 500r/min | 0.50N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN50KF | Single-Phase 220/230VAC | - | 30r/min | 6.8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN50RA | Single-Phase 220/230VAC | - | 30r/min | 6.8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN50RH | Single-Phase 220/230VAC | - | 30r/min | 6.8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN5KF | Single-Phase 220/230VAC | - | 300r/min | 0.83N･m | 80mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN5RA | Single-Phase 220/230VAC | - | 300r/min | 0.83N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN5RH | Single-Phase 220/230VAC | - | 300r/min | 0.83N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN60KF | Single-Phase 220/230VAC | - | 25r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN60RA | Single-Phase 220/230VAC | - | 25r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN60RH | Single-Phase 220/230VAC | - | 25r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN6KF | Single-Phase 220/230VAC | - | 250r/min | 1.0N･m | 80mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN6RA | Single-Phase 220/230VAC | - | 250r/min | 1.0N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN6RH | Single-Phase 220/230VAC | - | 250r/min | 1.0N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN7.5KF | Single-Phase 220/230VAC | - | 200r/min | 1.2N･m | 80mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN7.5RA | Single-Phase 220/230VAC | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN7.5RH | Single-Phase 220/230VAC | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN75KF | Single-Phase 220/230VAC | - | 20r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN75RA | Single-Phase 220/230VAC | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN75RH | Single-Phase 220/230VAC | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN90KF | Single-Phase 220/230VAC | - | 17r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN90RA | Single-Phase 220/230VAC | - | 17r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN90RH | Single-Phase 220/230VAC | - | 17r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN9KF | Single-Phase 220/230VAC | - | 167r/min | 1.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN9RA | Single-Phase 220/230VAC | - | 167r/min | 1.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-EW2G+4GN9RH | Single-Phase 220/230VAC | - | 167r/min | 1.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-SW2L | Three-Phase 200/220V | - | - | - | 80mm | Pinion Shaft Type | - | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN100KF | Three-Phase 200/220V | - | 18r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN100RA | Three-Phase 200/220V | - | 18r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN100RH | Three-Phase 200/220V | - | 18r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN12.5KF | Three-Phase 200/220V | - | 144r/min | 1.6N･m | 80mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN12.5RA | Three-Phase 200/220V | - | 144r/min | 1.6N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN12.5RH | Three-Phase 200/220V | - | 144r/min | 1.6N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN120KF | Three-Phase 200/220V | - | 15r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN120RA | Three-Phase 200/220V | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN120RH | Three-Phase 200/220V | - | 15r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN150KF | Three-Phase 200/220V | - | 12r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN150RA | Three-Phase 200/220V | - | 12r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN150RH | Three-Phase 200/220V | - | 12r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN15KF | Three-Phase 200/220V | - | 120r/min | 1.9N･m | 80mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN15RA | Three-Phase 200/220V | - | 120r/min | 1.9N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN15RH | Three-Phase 200/220V | - | 120r/min | 1.9N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN180KF | Three-Phase 200/220V | - | 10r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN180RA | Three-Phase 200/220V | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN180RH | Three-Phase 200/220V | - | 10r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN18KF | Three-Phase 200/220V | - | 100r/min | 2.3N･m | 80mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN18RA | Three-Phase 200/220V | - | 100r/min | 2.3N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN18RH | Three-Phase 200/220V | - | 100r/min | 2.3N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN25KF | Three-Phase 200/220V | - | 72r/min | 2.9N･m | 80mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN25RA | Three-Phase 200/220V | - | 72r/min | 2.9N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN25RH | Three-Phase 200/220V | - | 72r/min | 2.9N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3.6KF | Three-Phase 200/220V | - | 500r/min | 0.47N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3.6RA | Three-Phase 200/220V | - | 500r/min | 0.47N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3.6RH | Three-Phase 200/220V | - | 500r/min | 0.47N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN30KF | Three-Phase 200/220V | - | 60r/min | 3.5N･m | 80mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN30RA | Three-Phase 200/220V | - | 60r/min | 3.5N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN30RH | Three-Phase 200/220V | - | 60r/min | 3.5N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN36KF | Three-Phase 200/220V | - | 50r/min | 4.2N･m | 80mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN36RA | Three-Phase 200/220V | - | 50r/min | 4.2N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN36RH | Three-Phase 200/220V | - | 50r/min | 4.2N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3KF | Three-Phase 200/220V | - | 600r/min | 0.39N･m | 80mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3RA | Three-Phase 200/220V | - | 600r/min | 0.39N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN3RH | Three-Phase 200/220V | - | 600r/min | 0.39N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN50KF | Three-Phase 200/220V | - | 36r/min | 5.3N･m | 80mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN50RA | Three-Phase 200/220V | - | 36r/min | 5.3N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN50RH | Three-Phase 200/220V | - | 36r/min | 5.3N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN5KF | Three-Phase 200/220V | - | 360r/min | 0.65N･m | 80mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN5RA | Three-Phase 200/220V | - | 360r/min | 0.65N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN5RH | Three-Phase 200/220V | - | 360r/min | 0.65N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN60KF | Three-Phase 200/220V | - | 30r/min | 6.3N･m | 80mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN60RA | Three-Phase 200/220V | - | 30r/min | 6.3N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN60RH | Three-Phase 200/220V | - | 30r/min | 6.3N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN6KF | Three-Phase 200/220V | - | 300r/min | 0.78N･m | 80mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN6RA | Three-Phase 200/220V | - | 300r/min | 0.78N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN6RH | Three-Phase 200/220V | - | 300r/min | 0.78N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN7.5KF | Three-Phase 200/220V | - | 240r/min | 0.97N･m | 80mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN7.5RA | Three-Phase 200/220V | - | 240r/min | 0.97N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN7.5RH | Three-Phase 200/220V | - | 240r/min | 0.97N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN75KF | Three-Phase 200/220V | - | 24r/min | 7.9N･m | 80mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN75RA | Three-Phase 200/220V | - | 24r/min | 7.9N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN75RH | Three-Phase 200/220V | - | 24r/min | 7.9N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN90KF | Three-Phase 200/220V | - | 20r/min | 8N･m | 80mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN90RA | Three-Phase 200/220V | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN90RH | Three-Phase 200/220V | - | 20r/min | 8N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN9KF | Three-Phase 200/220V | - | 200r/min | 1.2N･m | 80mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN9RA | Three-Phase 200/220V | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 4IK25GN-SW2L+4GN9RH | Three-Phase 200/220V | - | 200r/min | 1.2N･m | 80mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 25W |
| 5IK40A-AW2L2 | Single-Phase 110V | 260mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 40W |
| 5IK40A-CW2L2 | Single-Phase 220/230VAC | 300mN･m (50Hz) | 1500r/min (50Hz) | - | 90mm | Round Shaft Type | - | Lead Wire Type | 40W |
| 5IK40A-EW2G | Single-Phase 220/230VAC | 315mN･m （220V） | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 40W |
| 5IK40A-SW2L | Three-Phase 200/220V | 260mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 40W |
| 5IK40GN-AW2L2 | Single-Phase 110V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN100KF | Single-Phase 110V | - | 18r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN100RA | Single-Phase 110VAC | - | 18r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN100RH | Single-Phase 110VAC | - | 18r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN12.5KF | Single-Phase 110V | - | 144r/min | 2.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN12.5RA | Single-Phase 110VAC | - | 144r/min | 2.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN12.5RH | Single-Phase 110VAC | - | 144r/min | 2.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN120KF | Single-Phase 110V | - | 15r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN120RA | Single-Phase 110VAC | - | 15r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN120RH | Single-Phase 110VAC | - | 15r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN150KF | Single-Phase 110V | - | 12r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN150RA | Single-Phase 110VAC | - | 12r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN150RH | Single-Phase 110VAC | - | 12r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN15KF | Single-Phase 110V | - | 120r/min | 3.2N･m | 90mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN15RA | Single-Phase 110VAC | - | 120r/min | 3.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN15RH | Single-Phase 110VAC | - | 120r/min | 3.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN180KF | Single-Phase 110V | - | 10r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN180RA | Single-Phase 110VAC | - | 10r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN180RH | Single-Phase 110VAC | - | 10r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN18KF | Single-Phase 110V | - | 100r/min | 3.8N･m | 90mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN18RA | Single-Phase 110VAC | - | 100r/min | 3.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN18RH | Single-Phase 110VAC | - | 100r/min | 3.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN25KF | Single-Phase 110V | - | 72r/min | 4.7N･m | 90mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN25RA | Single-Phase 110VAC | - | 72r/min | 4.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN25RH | Single-Phase 110VAC | - | 72r/min | 4.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3.6KF | Single-Phase 110V | - | 500r/min | 0.76N･m | 90mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3.6RA | Single-Phase 110VAC | - | 500r/min | 0.76N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3.6RH | Single-Phase 110VAC | - | 500r/min | 0.76N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN30KF | Single-Phase 110V | - | 60r/min | 5.7N･m | 90mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN30RA | Single-Phase 110VAC | - | 60r/min | 5.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN30RH | Single-Phase 110VAC | - | 60r/min | 5.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN36KF | Single-Phase 110V | - | 50r/min | 6.8N･m | 90mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN36RA | Single-Phase 110VAC | - | 50r/min | 6.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN36RH | Single-Phase 110VAC | - | 50r/min | 6.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3KF | Single-Phase 110V | - | 600r/min | 0.63N･m | 90mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3RA | Single-Phase 110VAC | - | 600r/min | 0.63N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN3RH | Single-Phase 110VAC | - | 600r/min | 0.63N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN50KF | Single-Phase 110V | - | 36r/min | 8.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN50RA | Single-Phase 110VAC | - | 36r/min | 8.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN50RH | Single-Phase 110VAC | - | 36r/min | 8.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN5KF | Single-Phase 110V | - | 360r/min | 1.1N･m | 90mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN5RA | Single-Phase 110VAC | - | 360r/min | 1.1N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN5RH | Single-Phase 110VAC | - | 360r/min | 1.1N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN60KF | Single-Phase 110V | - | 30r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN60RA | Single-Phase 110VAC | - | 30r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN60RH | Single-Phase 110VAC | - | 30r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN6KF | Single-Phase 110V | - | 300r/min | 1.3N･m | 90mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN6RA | Single-Phase 110VAC | - | 300r/min | 1.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN6RH | Single-Phase 110VAC | - | 300r/min | 1.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN7.5KF | Single-Phase 110V | - | 240r/min | 1.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN7.5RA | Single-Phase 110VAC | - | 240r/min | 1.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN7.5RH | Single-Phase 110VAC | - | 240r/min | 1.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN75KF | Single-Phase 110V | - | 24r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN75RA | Single-Phase 110VAC | - | 24r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN75RH | Single-Phase 110VAC | - | 24r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN90KF | Single-Phase 110V | - | 20r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN90RA | Single-Phase 110VAC | - | 20r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN90RH | Single-Phase 110VAC | - | 20r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN9KF | Single-Phase 110V | - | 200r/min | 1.9N･m | 90mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN9RA | Single-Phase 110VAC | - | 200r/min | 1.9N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-AW2L2+5GN9RH | Single-Phase 110VAC | - | 200r/min | 1.9N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2 | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN100KF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN100RA | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN100RH | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN12.5KF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 3N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN12.5RA | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN12.5RH | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN120KF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN120RA | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN120RH | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN150KF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN150RA | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN150RH | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN15KF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN15RA | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN15RH | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN180KF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN180RA | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN180RH | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN18KF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN18RA | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN18RH | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN25KF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 5.5N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN25RA | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 5.5N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN25RH | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 5.5N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3.6KF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.87N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3.6RA | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.87N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3.6RH | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 0.87N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN30KF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 6.6N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN30RA | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 6.6N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN30RH | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 6.6N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN36KF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 7.9N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN36RA | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 7.9N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN36RH | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 7.9N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3KF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.73N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3RA | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.73N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN3RH | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 0.73N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN50KF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 9.9N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN50RA | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 9.9N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN50RH | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 9.9N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN5KF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN5RA | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN5RH | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN60KF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN60RA | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN60RH | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN6KF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1.5N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN6RA | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1.5N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN6RH | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 1.5N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN7.5KF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN7.5RA | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN7.5RH | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN75KF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN75RA | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN75RH | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN90KF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 10N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN90RA | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN90RH | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 10N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN9KF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 2.2N･m (50Hz) | 90mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN9RA | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 2.2N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-CW2L2+5GN9RH | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 2.2N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-EW2G | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN100KF | Single-Phase 220/230VAC | - | 15r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN100RA | Single-Phase 220/230VAC | - | 15r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN100RH | Single-Phase 220/230VAC | - | 15r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN12.5KF | Single-Phase 220/230VAC | - | 120r/min | 3.2N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN12.5RA | Single-Phase 220/230VAC | - | 120r/min | 3.2N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN12.5RH | Single-Phase 220/230VAC | - | 120r/min | 3.2N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN120KF | Single-Phase 220/230VAC | - | 12.5r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN120RA | Single-Phase 220/230VAC | - | 12.5r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN120RH | Single-Phase 220/230VAC | - | 12.5r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN150KF | Single-Phase 220/230VAC | - | 10r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN150RA | Single-Phase 220/230VAC | - | 10r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN150RH | Single-Phase 220/230VAC | - | 10r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN15KF | Single-Phase 220/230VAC | - | 100r/min | 3.8N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN15RA | Single-Phase 220/230VAC | - | 100r/min | 3.8N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN15RH | Single-Phase 220/230VAC | - | 100r/min | 3.8N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN180KF | Single-Phase 220/230VAC | - | 8.3r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN180RA | Single-Phase 220/230VAC | - | 8.3r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN180RH | Single-Phase 220/230VAC | - | 8.3r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN18KF | Single-Phase 220/230VAC | - | 83r/min | 4.6N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN18RA | Single-Phase 220/230VAC | - | 83r/min | 4.6N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN18RH | Single-Phase 220/230VAC | - | 83r/min | 4.6N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN25KF | Single-Phase 220/230VAC | - | 60r/min | 5.7N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN25RA | Single-Phase 220/230VAC | - | 60r/min | 5.7N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN25RH | Single-Phase 220/230VAC | - | 60r/min | 5.7N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3.6KF | Single-Phase 220/230VAC | - | 417r/min | 0.92N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3.6RA | Single-Phase 220/230VAC | - | 417r/min | 0.92N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3.6RH | Single-Phase 220/230VAC | - | 417r/min | 0.92N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN30KF | Single-Phase 220/230VAC | - | 50r/min | 6.9N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN30RA | Single-Phase 220/230VAC | - | 50r/min | 6.9N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN30RH | Single-Phase 220/230VAC | - | 50r/min | 6.9N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN36KF | Single-Phase 220/230VAC | - | 42r/min | 8.3N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN36RA | Single-Phase 220/230VAC | - | 42r/min | 8.3N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN36RH | Single-Phase 220/230VAC | - | 42r/min | 8.3N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3KF | Single-Phase 220/230VAC | - | 500r/min | 0.77N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3RA | Single-Phase 220/230VAC | - | 500r/min | 0.77N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN3RH | Single-Phase 220/230VAC | - | 500r/min | 0.77N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN50KF | Single-Phase 220/230VAC | - | 30r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN50RA | Single-Phase 220/230VAC | - | 30r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN50RH | Single-Phase 220/230VAC | - | 30r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN5KF | Single-Phase 220/230VAC | - | 300r/min | 1.3N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN5RA | Single-Phase 220/230VAC | - | 300r/min | 1.3N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN5RH | Single-Phase 220/230VAC | - | 300r/min | 1.3N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN60KF | Single-Phase 220/230VAC | - | 25r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN60RA | Single-Phase 220/230VAC | - | 25r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN60RH | Single-Phase 220/230VAC | - | 25r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN6KF | Single-Phase 220/230VAC | - | 250r/min | 1.5N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN6RA | Single-Phase 220/230VAC | - | 250r/min | 1.5N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN6RH | Single-Phase 220/230VAC | - | 250r/min | 1.5N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN7.5KF | Single-Phase 220/230VAC | - | 200r/min | 1.9N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN7.5RA | Single-Phase 220/230VAC | - | 200r/min | 1.9N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN7.5RH | Single-Phase 220/230VAC | - | 200r/min | 1.9N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN75KF | Single-Phase 220/230VAC | - | 20r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN75RA | Single-Phase 220/230VAC | - | 20r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN75RH | Single-Phase 220/230VAC | - | 20r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN90KF | Single-Phase 220/230VAC | - | 17r/min | 10N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN90RA | Single-Phase 220/230VAC | - | 17r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN90RH | Single-Phase 220/230VAC | - | 17r/min | 10N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN9KF | Single-Phase 220/230VAC | - | 167r/min | 2.3N･m（220V） | 90mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN9RA | Single-Phase 220/230VAC | - | 167r/min | 2.3N･m（220V） | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-EW2G+5GN9RH | Single-Phase 220/230VAC | - | 167r/min | 2.3N･m（220V） | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-SW2L | Three-Phase 200/220V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN100KF | Three-Phase 200/220V | - | 18r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN100RA | Three-Phase 200/220V | - | 18r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN100RH | Three-Phase 200/220V | - | 18r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN12.5KF | Three-Phase 200/220V | - | 144r/min | 2.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN12.5RA | Three-Phase 200/220V | - | 144r/min | 2.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN12.5RH | Three-Phase 200/220V | - | 144r/min | 2.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN120KF | Three-Phase 200/220V | - | 15r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN120RA | Three-Phase 200/220V | - | 15r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN120RH | Three-Phase 200/220V | - | 15r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN150KF | Three-Phase 200/220V | - | 12r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN150RA | Three-Phase 200/220V | - | 12r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN150RH | Three-Phase 200/220V | - | 12r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN15KF | Three-Phase 200/220V | - | 120r/min | 3.2N･m | 90mm | Parallel Shaft GN-KF Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN15RA | Three-Phase 200/220V | - | 120r/min | 3.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN15RH | Three-Phase 200/220V | - | 120r/min | 3.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN180KF | Three-Phase 200/220V | - | 10r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN180RA | Three-Phase 200/220V | - | 10r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN180RH | Three-Phase 200/220V | - | 10r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN18KF | Three-Phase 200/220V | - | 100r/min | 3.8N･m | 90mm | Parallel Shaft GN-KF Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN18RA | Three-Phase 200/220V | - | 100r/min | 3.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN18RH | Three-Phase 200/220V | - | 100r/min | 3.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN25KF | Three-Phase 200/220V | - | 72r/min | 4.7N･m | 90mm | Parallel Shaft GN-KF Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN25RA | Three-Phase 200/220V | - | 72r/min | 4.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN25RH | Three-Phase 200/220V | - | 72r/min | 4.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3.6KF | Three-Phase 200/220V | - | 500r/min | 0.76N･m | 90mm | Parallel Shaft GN-KF Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3.6RA | Three-Phase 200/220V | - | 500r/min | 0.76N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3.6RH | Three-Phase 200/220V | - | 500r/min | 0.76N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN30KF | Three-Phase 200/220V | - | 60r/min | 5.7N･m | 90mm | Parallel Shaft GN-KF Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN30RA | Three-Phase 200/220V | - | 60r/min | 5.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN30RH | Three-Phase 200/220V | - | 60r/min | 5.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN36KF | Three-Phase 200/220V | - | 50r/min | 6.8N･m | 90mm | Parallel Shaft GN-KF Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN36RA | Three-Phase 200/220V | - | 50r/min | 6.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN36RH | Three-Phase 200/220V | - | 50r/min | 6.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3KF | Three-Phase 200/220V | - | 600r/min | 0.63N･m | 90mm | Parallel Shaft GN-KF Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3RA | Three-Phase 200/220V | - | 600r/min | 0.63N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN3RH | Three-Phase 200/220V | - | 600r/min | 0.63N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN50KF | Three-Phase 200/220V | - | 36r/min | 8.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN50RA | Three-Phase 200/220V | - | 36r/min | 8.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN50RH | Three-Phase 200/220V | - | 36r/min | 8.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN5KF | Three-Phase 200/220V | - | 360r/min | 1.1N･m | 90mm | Parallel Shaft GN-KF Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN5RA | Three-Phase 200/220V | - | 360r/min | 1.1N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN5RH | Three-Phase 200/220V | - | 360r/min | 1.1N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN60KF | Three-Phase 200/220V | - | 30r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN60RA | Three-Phase 200/220V | - | 30r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN60RH | Three-Phase 200/220V | - | 30r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN6KF | Three-Phase 200/220V | - | 300r/min | 1.3N･m | 90mm | Parallel Shaft GN-KF Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN6RA | Three-Phase 200/220V | - | 300r/min | 1.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN6RH | Three-Phase 200/220V | - | 300r/min | 1.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN7.5KF | Three-Phase 200/220V | - | 240r/min | 1.6N･m | 90mm | Parallel Shaft GN-KF Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN7.5RA | Three-Phase 200/220V | - | 240r/min | 1.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN7.5RH | Three-Phase 200/220V | - | 240r/min | 1.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN75KF | Three-Phase 200/220V | - | 24r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN75RA | Three-Phase 200/220V | - | 24r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN75RH | Three-Phase 200/220V | - | 24r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN90KF | Three-Phase 200/220V | - | 20r/min | 10N･m | 90mm | Parallel Shaft GN-KF Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN90RA | Three-Phase 200/220V | - | 20r/min | 10N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN90RH | Three-Phase 200/220V | - | 20r/min | 10N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN9KF | Three-Phase 200/220V | - | 200r/min | 1.9N･m | 90mm | Parallel Shaft GN-KF Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN9RA | Three-Phase 200/220V | - | 200r/min | 1.9N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK40GN-SW2L+5GN9RH | Three-Phase 200/220V | - | 200r/min | 1.9N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 40W |
| 5IK60A-AW2L2 | Single-Phase 110V | 405mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 60W |
| 5IK60A-CW2L2 | Single-Phase 220/230VAC | 490mN･m (50Hz) | 1500r/min (50Hz) | - | 90mm | Round Shaft Type | - | Lead Wire Type | 60W |
| 5IK60A-EW2G | Single-Phase 220/230VAC | 490mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 60W |
| 5IK60A-SW2L | Three-Phase 200/220V | 380mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 60W |
| 5IK60GE-AW2L2 | Single-Phase 110V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE100KBF | Single-Phase 110V | - | 18r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE100RA | Single-Phase 110VAC | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE100RH | Single-Phase 110VAC | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE12.5KBF | Single-Phase 110V | - | 144r/min | 3.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE12.5RA | Single-Phase 110VAC | - | 144r/min | 3.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE12.5RH | Single-Phase 110VAC | - | 144r/min | 3.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE120KBF | Single-Phase 110V | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE120RA | Single-Phase 110VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE120RH | Single-Phase 110VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE150KBF | Single-Phase 110V | - | 12r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE150RA | Single-Phase 110VAC | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE150RH | Single-Phase 110VAC | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE15KBF | Single-Phase 110V | - | 120r/min | 4.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE15RA | Single-Phase 110VAC | - | 120r/min | 4.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE15RH | Single-Phase 110VAC | - | 120r/min | 4.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE180KBF | Single-Phase 110V | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE180RA | Single-Phase 110VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE180RH | Single-Phase 110VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE18KBF | Single-Phase 110V | - | 100r/min | 5.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE18RA | Single-Phase 110VAC | - | 100r/min | 5.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE18RH | Single-Phase 110VAC | - | 100r/min | 5.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE25KBF | Single-Phase 110V | - | 72r/min | 6.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE25RA | Single-Phase 110VAC | - | 72r/min | 6.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE25RH | Single-Phase 110VAC | - | 72r/min | 6.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3.6KBF | Single-Phase 110V | - | 500r/min | 1.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3.6RA | Single-Phase 110VAC | - | 500r/min | 1.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3.6RH | Single-Phase 110VAC | - | 500r/min | 1.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE30KBF | Single-Phase 110V | - | 60r/min | 8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE30RA | Single-Phase 110VAC | - | 60r/min | 8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE30RH | Single-Phase 110VAC | - | 60r/min | 8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE36KBF | Single-Phase 110V | - | 50r/min | 9.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE36RA | Single-Phase 110VAC | - | 50r/min | 9.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE36RH | Single-Phase 110VAC | - | 50r/min | 9.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3KBF | Single-Phase 110V | - | 600r/min | 0.98N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3RA | Single-Phase 110VAC | - | 600r/min | 0.98N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE3RH | Single-Phase 110VAC | - | 600r/min | 0.98N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE50KBF | Single-Phase 110V | - | 36r/min | 13.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE50RA | Single-Phase 110VAC | - | 36r/min | 13.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE50RH | Single-Phase 110VAC | - | 36r/min | 13.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE5KBF | Single-Phase 110V | - | 360r/min | 1.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE5RA | Single-Phase 110VAC | - | 360r/min | 1.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE5RH | Single-Phase 110VAC | - | 360r/min | 1.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE60KBF | Single-Phase 110V | - | 30r/min | 16N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE60RA | Single-Phase 110VAC | - | 30r/min | 16N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE60RH | Single-Phase 110VAC | - | 30r/min | 16N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE6KBF | Single-Phase 110V | - | 300r/min | 2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE6RA | Single-Phase 110VAC | - | 300r/min | 2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE6RH | Single-Phase 110VAC | - | 300r/min | 2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE7.5KBF | Single-Phase 110V | - | 240r/min | 2.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE7.5RA | Single-Phase 110VAC | - | 240r/min | 2.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE7.5RH | Single-Phase 110VAC | - | 240r/min | 2.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE75KBF | Single-Phase 110V | - | 24r/min | 17.9N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE75RA | Single-Phase 110VAC | - | 24r/min | 17.9N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE75RH | Single-Phase 110VAC | - | 24r/min | 17.9N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE90KBF | Single-Phase 110V | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE90RA | Single-Phase 110VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE90RH | Single-Phase 110VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE9KBF | Single-Phase 110V | - | 200r/min | 3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE9RA | Single-Phase 110VAC | - | 200r/min | 3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-AW2L2+5GE9RH | Single-Phase 110VAC | - | 200r/min | 3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2 | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE100KBF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE100RA | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE100RH | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE12.5KBF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 4.5N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE12.5RA | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 4.5N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE12.5RH | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 4.5N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE120KBF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE120RA | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE120RH | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE150KBF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE150RA | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE150RH | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE15KBF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 5.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE15RA | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 5.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE15RH | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 5.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE180KBF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE180RA | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE180RH | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE18KBF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 6.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE18RA | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 6.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE18RH | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 6.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE25KBF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 8.1N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE25RA | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 8.1N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE25RH | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 8.1N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3.6KBF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 1.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3.6RA | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 1.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3.6RH | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 1.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE30KBF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 9.7N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE30RA | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 9.7N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE30RH | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 9.7N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE36KBF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 11.6N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE36RA | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 11.6N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE36RH | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 11.6N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3KBF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3RA | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE3RH | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.2N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE50KBF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 16.2N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE50RA | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 16.2N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE50RH | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 16.2N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE5KBF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 2N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE5RA | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 2N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE5RH | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 2N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE60KBF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 19.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE60RA | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 19.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE60RH | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 19.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE6KBF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 2.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE6RA | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 2.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE6RH | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 2.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE7.5KBF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 3N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE7.5RA | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE7.5RH | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE75KBF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE75RA | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE75RH | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE90KBF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE90RA | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE90RH | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE9KBF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE9RA | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-CW2L2+5GE9RH | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 3.6N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-EW2G | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE100KBF | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE100RA | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE100RH | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE12.5KBF | Single-Phase 220/230VAC | - | 120r/min | 4.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE12.5RA | Single-Phase 220/230VAC | - | 120r/min | 4.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE12.5RH | Single-Phase 220/230VAC | - | 120r/min | 4.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE120KBF | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE120RA | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE120RH | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE150KBF | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE150RA | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE150RH | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE15KBF | Single-Phase 220/230VAC | - | 100r/min | 5.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE15RA | Single-Phase 220/230VAC | - | 100r/min | 5.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE15RH | Single-Phase 220/230VAC | - | 100r/min | 5.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE180KBF | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE180RA | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE180RH | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE18KBF | Single-Phase 220/230VAC | - | 83r/min | 6.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE18RA | Single-Phase 220/230VAC | - | 83r/min | 6.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE18RH | Single-Phase 220/230VAC | - | 83r/min | 6.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE25KBF | Single-Phase 220/230VAC | - | 60r/min | 8.1N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE25RA | Single-Phase 220/230VAC | - | 60r/min | 8.1N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE25RH | Single-Phase 220/230VAC | - | 60r/min | 8.1N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3.6KBF | Single-Phase 220/230VAC | - | 417r/min | 1.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3.6RA | Single-Phase 220/230VAC | - | 417r/min | 1.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3.6RH | Single-Phase 220/230VAC | - | 417r/min | 1.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE30KBF | Single-Phase 220/230VAC | - | 50r/min | 9.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE30RA | Single-Phase 220/230VAC | - | 50r/min | 9.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE30RH | Single-Phase 220/230VAC | - | 50r/min | 9.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE36KBF | Single-Phase 220/230VAC | - | 42r/min | 11.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE36RA | Single-Phase 220/230VAC | - | 42r/min | 11.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE36RH | Single-Phase 220/230VAC | - | 42r/min | 11.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3KBF | Single-Phase 220/230VAC | - | 500r/min | 1.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3RA | Single-Phase 220/230VAC | - | 500r/min | 1.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE3RH | Single-Phase 220/230VAC | - | 500r/min | 1.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE50KBF | Single-Phase 220/230VAC | - | 30r/min | 16.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE50RA | Single-Phase 220/230VAC | - | 30r/min | 16.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE50RH | Single-Phase 220/230VAC | - | 30r/min | 16.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE5KBF | Single-Phase 220/230VAC | - | 300r/min | 2.0N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE5RA | Single-Phase 220/230VAC | - | 300r/min | 2.0N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE5RH | Single-Phase 220/230VAC | - | 300r/min | 2.0N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE60KBF | Single-Phase 220/230VAC | - | 25r/min | 19.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE60RA | Single-Phase 220/230VAC | - | 25r/min | 19.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE60RH | Single-Phase 220/230VAC | - | 25r/min | 19.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE6KBF | Single-Phase 220/230VAC | - | 250r/min | 2.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE6RA | Single-Phase 220/230VAC | - | 250r/min | 2.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE6RH | Single-Phase 220/230VAC | - | 250r/min | 2.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE7.5KBF | Single-Phase 220/230VAC | - | 200r/min | 3.0N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE7.5RA | Single-Phase 220/230VAC | - | 200r/min | 3.0N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE7.5RH | Single-Phase 220/230VAC | - | 200r/min | 3.0N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE75KBF | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE75RA | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE75RH | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE90KBF | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE90RA | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE90RH | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE9KBF | Single-Phase 220/230VAC | - | 167r/min | 3.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE9RA | Single-Phase 220/230VAC | - | 167r/min | 3.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-EW2G+5GE9RH | Single-Phase 220/230VAC | - | 167r/min | 3.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-SW2L | Three-Phase 200/220V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE100KBF | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE100RA | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE100RH | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE12.5KBF | Three-Phase 200/220V | - | 144r/min | 3.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE12.5RA | Three-Phase 200/220V | - | 144r/min | 3.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE12.5RH | Three-Phase 200/220V | - | 144r/min | 3.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE120KBF | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE120RA | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE120RH | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE150KBF | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE150RA | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE150RH | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE15KBF | Three-Phase 200/220V | - | 120r/min | 4.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE15RA | Three-Phase 200/220V | - | 120r/min | 4.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE15RH | Three-Phase 200/220V | - | 120r/min | 4.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE180KBF | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE180RA | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE180RH | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE18KBF | Three-Phase 200/220V | - | 100r/min | 5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE18RA | Three-Phase 200/220V | - | 100r/min | 5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE18RH | Three-Phase 200/220V | - | 100r/min | 5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE25KBF | Three-Phase 200/220V | - | 72r/min | 6.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE25RA | Three-Phase 200/220V | - | 72r/min | 6.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE25RH | Three-Phase 200/220V | - | 72r/min | 6.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3.6KBF | Three-Phase 200/220V | - | 500r/min | 1.1N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3.6RA | Three-Phase 200/220V | - | 500r/min | 1.1N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3.6RH | Three-Phase 200/220V | - | 500r/min | 1.1N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE30KBF | Three-Phase 200/220V | - | 60r/min | 7.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE30RA | Three-Phase 200/220V | - | 60r/min | 7.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE30RH | Three-Phase 200/220V | - | 60r/min | 7.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE36KBF | Three-Phase 200/220V | - | 50r/min | 9N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE36RA | Three-Phase 200/220V | - | 50r/min | 9N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE36RH | Three-Phase 200/220V | - | 50r/min | 9N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3KBF | Three-Phase 200/220V | - | 600r/min | 0.92N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3RA | Three-Phase 200/220V | - | 600r/min | 0.92N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE3RH | Three-Phase 200/220V | - | 600r/min | 0.92N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE50KBF | Three-Phase 200/220V | - | 36r/min | 12.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE50RA | Three-Phase 200/220V | - | 36r/min | 12.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE50RH | Three-Phase 200/220V | - | 36r/min | 12.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE5KBF | Three-Phase 200/220V | - | 360r/min | 1.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE5RA | Three-Phase 200/220V | - | 360r/min | 1.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE5RH | Three-Phase 200/220V | - | 360r/min | 1.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE60KBF | Three-Phase 200/220V | - | 30r/min | 15N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE60RA | Three-Phase 200/220V | - | 30r/min | 15N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE60RH | Three-Phase 200/220V | - | 30r/min | 15N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE6KBF | Three-Phase 200/220V | - | 300r/min | 1.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE6RA | Three-Phase 200/220V | - | 300r/min | 1.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE6RH | Three-Phase 200/220V | - | 300r/min | 1.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE7.5KBF | Three-Phase 200/220V | - | 240r/min | 2.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE7.5RA | Three-Phase 200/220V | - | 240r/min | 2.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE7.5RH | Three-Phase 200/220V | - | 240r/min | 2.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE75KBF | Three-Phase 200/220V | - | 24r/min | 16.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE75RA | Three-Phase 200/220V | - | 24r/min | 16.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE75RH | Three-Phase 200/220V | - | 24r/min | 16.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE90KBF | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE90RA | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE90RH | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE9KBF | Three-Phase 200/220V | - | 200r/min | 2.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE9RA | Three-Phase 200/220V | - | 200r/min | 2.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK60GE-SW2L+5GE9RH | Three-Phase 200/220V | - | 200r/min | 2.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 60W |
| 5IK90A-AW2L2 | Single-Phase 110V | 585mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 90W |
| 5IK90A-CW2L2 | Single-Phase 220/230VAC | 730mN･m (50Hz) | 1500r/min (50Hz) | - | 90mm | Round Shaft Type | - | Lead Wire Type | 90W |
| 5IK90A-EW2G | Single-Phase 220/230VAC | 730mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 90W |
| 5IK90A-SW2L | Three-Phase 200/220V | 570mN･m | 1800r/min | - | 90mm | Round Shaft Type | - | Lead Wire Type | 90W |
| 5IK90GE-AW2L2 | Single-Phase 110V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE100KBF | Single-Phase 110V | - | 18r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE100RA | Single-Phase 110VAC | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE100RH | Single-Phase 110VAC | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE12.5KBF | Single-Phase 110V | - | 144r/min | 5.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE12.5RA | Single-Phase 110VAC | - | 144r/min | 5.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE12.5RH | Single-Phase 110VAC | - | 144r/min | 5.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE120KBF | Single-Phase 110V | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE120RA | Single-Phase 110VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE120RH | Single-Phase 110VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE150KBF | Single-Phase 110V | - | 12r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE150RA | Single-Phase 110VAC | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE150RH | Single-Phase 110VAC | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE15KBF | Single-Phase 110V | - | 120r/min | 6.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE15RA | Single-Phase 110VAC | - | 120r/min | 6.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE15RH | Single-Phase 110VAC | - | 120r/min | 6.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE180KBF | Single-Phase 110V | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE180RA | Single-Phase 110VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE180RH | Single-Phase 110VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE18KBF | Single-Phase 110V | - | 100r/min | 7.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE18RA | Single-Phase 110VAC | - | 100r/min | 7.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE18RH | Single-Phase 110VAC | - | 100r/min | 7.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE25KBF | Single-Phase 110V | - | 72r/min | 9.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE25RA | Single-Phase 110VAC | - | 72r/min | 9.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE25RH | Single-Phase 110VAC | - | 72r/min | 9.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3.6KBF | Single-Phase 110V | - | 500r/min | 1.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3.6RA | Single-Phase 110VAC | - | 500r/min | 1.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3.6RH | Single-Phase 110VAC | - | 500r/min | 1.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE30KBF | Single-Phase 110V | - | 60r/min | 11.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE30RA | Single-Phase 110VAC | - | 60r/min | 11.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE30RH | Single-Phase 110VAC | - | 60r/min | 11.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE36KBF | Single-Phase 110V | - | 50r/min | 13.9N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE36RA | Single-Phase 110VAC | - | 50r/min | 13.9N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE36RH | Single-Phase 110VAC | - | 50r/min | 13.9N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3KBF | Single-Phase 110V | - | 600r/min | 1.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3RA | Single-Phase 110VAC | - | 600r/min | 1.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE3RH | Single-Phase 110VAC | - | 600r/min | 1.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE50KBF | Single-Phase 110V | - | 36r/min | 19.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE50RA | Single-Phase 110VAC | - | 36r/min | 19.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE50RH | Single-Phase 110VAC | - | 36r/min | 19.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE5KBF | Single-Phase 110V | - | 360r/min | 2.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE5RA | Single-Phase 110VAC | - | 360r/min | 2.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE5RH | Single-Phase 110VAC | - | 360r/min | 2.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE60KBF | Single-Phase 110V | - | 30r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE60RA | Single-Phase 110VAC | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE60RH | Single-Phase 110VAC | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE6KBF | Single-Phase 110V | - | 300r/min | 2.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE6RA | Single-Phase 110VAC | - | 300r/min | 2.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE6RH | Single-Phase 110VAC | - | 300r/min | 2.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE7.5KBF | Single-Phase 110V | - | 240r/min | 3.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE7.5RA | Single-Phase 110VAC | - | 240r/min | 3.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE7.5RH | Single-Phase 110VAC | - | 240r/min | 3.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE75KBF | Single-Phase 110V | - | 24r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE75RA | Single-Phase 110VAC | - | 24r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE75RH | Single-Phase 110VAC | - | 24r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE90KBF | Single-Phase 110V | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE90RA | Single-Phase 110VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE90RH | Single-Phase 110VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE9KBF | Single-Phase 110V | - | 200r/min | 4.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE9RA | Single-Phase 110VAC | - | 200r/min | 4.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-AW2L2+5GE9RH | Single-Phase 110VAC | - | 200r/min | 4.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2 | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE100KBF | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE100RA | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE100RH | Single-Phase 220/230VAC | - | 15r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE12.5KBF | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 6.7N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE12.5RA | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 6.7N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE12.5RH | Single-Phase 220/230VAC | - | 120r/min (50Hz) | 6.7N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE120KBF | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE120RA | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE120RH | Single-Phase 220/230VAC | - | 12.5r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE150KBF | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE150RA | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE150RH | Single-Phase 220/230VAC | - | 10r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE15KBF | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 8N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE15RA | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 8N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE15RH | Single-Phase 220/230VAC | - | 100r/min (50Hz) | 8N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE180KBF | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE180RA | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE180RH | Single-Phase 220/230VAC | - | 8.3r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE18KBF | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 9.6N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE18RA | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 9.6N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE18RH | Single-Phase 220/230VAC | - | 83r/min (50Hz) | 9.6N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE25KBF | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 12N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE25RA | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 12N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE25RH | Single-Phase 220/230VAC | - | 60r/min (50Hz) | 12N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3.6KBF | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 2.1N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3.6RA | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 2.1N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3.6RH | Single-Phase 220/230VAC | - | 417r/min (50Hz) | 2.1N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE30KBF | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 14.5N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE30RA | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 14.5N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE30RH | Single-Phase 220/230VAC | - | 50r/min (50Hz) | 14.5N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE36KBF | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 17.3N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE36RA | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 17.3N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE36RH | Single-Phase 220/230VAC | - | 42r/min (50Hz) | 17.3N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3KBF | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3RA | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE3RH | Single-Phase 220/230VAC | - | 500r/min (50Hz) | 1.8N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE50KBF | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE50RA | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE50RH | Single-Phase 220/230VAC | - | 30r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE5KBF | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 3N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE5RA | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE5RH | Single-Phase 220/230VAC | - | 300r/min (50Hz) | 3N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE60KBF | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE60RA | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE60RH | Single-Phase 220/230VAC | - | 25r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE6KBF | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 3.5N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE6RA | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 3.5N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE6RH | Single-Phase 220/230VAC | - | 250r/min (50Hz) | 3.5N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE7.5KBF | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE7.5RA | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE7.5RH | Single-Phase 220/230VAC | - | 200r/min (50Hz) | 4.4N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE75KBF | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE75RA | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE75RH | Single-Phase 220/230VAC | - | 20r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE90KBF | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE90RA | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE90RH | Single-Phase 220/230VAC | - | 17r/min (50Hz) | 20N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE9KBF | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 5.3N･m (50Hz) | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE9RA | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 5.3N･m (50Hz) | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-CW2L2+5GE9RH | Single-Phase 220/230VAC | - | 167r/min (50Hz) | 5.3N･m (50Hz) | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-EW2G | Single-Phase 220/230VAC | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE100KBF | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE100RA | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE100RH | Single-Phase 220/230VAC | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE12.5KBF | Single-Phase 220/230VAC | - | 120r/min | 6.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE12.5RA | Single-Phase 220/230VAC | - | 120r/min | 6.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE12.5RH | Single-Phase 220/230VAC | - | 120r/min | 6.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE120KBF | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE120RA | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE120RH | Single-Phase 220/230VAC | - | 12.5r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE150KBF | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE150RA | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE150RH | Single-Phase 220/230VAC | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE15KBF | Single-Phase 220/230VAC | - | 100r/min | 8.0N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE15RA | Single-Phase 220/230VAC | - | 100r/min | 8.0N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE15RH | Single-Phase 220/230VAC | - | 100r/min | 8.0N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE180KBF | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE180RA | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE180RH | Single-Phase 220/230VAC | - | 8.3r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE18KBF | Single-Phase 220/230VAC | - | 83r/min | 9.6N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE18RA | Single-Phase 220/230VAC | - | 83r/min | 9.6N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE18RH | Single-Phase 220/230VAC | - | 83r/min | 9.6N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE25KBF | Single-Phase 220/230VAC | - | 60r/min | 12.0N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE25RA | Single-Phase 220/230VAC | - | 60r/min | 12.0N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE25RH | Single-Phase 220/230VAC | - | 60r/min | 12.0N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3.6KBF | Single-Phase 220/230VAC | - | 417r/min | 2.1N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3.6RA | Single-Phase 220/230VAC | - | 417r/min | 2.1N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3.6RH | Single-Phase 220/230VAC | - | 417r/min | 2.1N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE30KBF | Single-Phase 220/230VAC | - | 50r/min | 14.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE30RA | Single-Phase 220/230VAC | - | 50r/min | 14.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE30RH | Single-Phase 220/230VAC | - | 50r/min | 14.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE36KBF | Single-Phase 220/230VAC | - | 42r/min | 17.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE36RA | Single-Phase 220/230VAC | - | 42r/min | 17.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE36RH | Single-Phase 220/230VAC | - | 42r/min | 17.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3KBF | Single-Phase 220/230VAC | - | 500r/min | 1.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3RA | Single-Phase 220/230VAC | - | 500r/min | 1.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE3RH | Single-Phase 220/230VAC | - | 500r/min | 1.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE50KBF | Single-Phase 220/230VAC | - | 30r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE50RA | Single-Phase 220/230VAC | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE50RH | Single-Phase 220/230VAC | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE5KBF | Single-Phase 220/230VAC | - | 300r/min | 3.0N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE5RA | Single-Phase 220/230VAC | - | 300r/min | 3.0N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE5RH | Single-Phase 220/230VAC | - | 300r/min | 3.0N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE60KBF | Single-Phase 220/230VAC | - | 25r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE60RA | Single-Phase 220/230VAC | - | 25r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE60RH | Single-Phase 220/230VAC | - | 25r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE6KBF | Single-Phase 220/230VAC | - | 250r/min | 3.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE6RA | Single-Phase 220/230VAC | - | 250r/min | 3.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE6RH | Single-Phase 220/230VAC | - | 250r/min | 3.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE7.5KBF | Single-Phase 220/230VAC | - | 200r/min | 4.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE7.5RA | Single-Phase 220/230VAC | - | 200r/min | 4.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE7.5RH | Single-Phase 220/230VAC | - | 200r/min | 4.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE75KBF | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE75RA | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE75RH | Single-Phase 220/230VAC | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE90KBF | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE90RA | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE90RH | Single-Phase 220/230VAC | - | 17r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE9KBF | Single-Phase 220/230VAC | - | 167r/min | 5.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE9RA | Single-Phase 220/230VAC | - | 167r/min | 5.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-EW2G+5GE9RH | Single-Phase 220/230VAC | - | 167r/min | 5.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-SW2L | Three-Phase 200/220V | - | - | - | 90mm | Pinion Shaft Type | - | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE100KBF | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE100RA | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE100RH | Three-Phase 200/220V | - | 18r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 100 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE12.5KBF | Three-Phase 200/220V | - | 144r/min | 5.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE12.5RA | Three-Phase 200/220V | - | 144r/min | 5.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE12.5RH | Three-Phase 200/220V | - | 144r/min | 5.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 12.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE120KBF | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE120RA | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE120RH | Three-Phase 200/220V | - | 15r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 120 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE150KBF | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE150RA | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE150RH | Three-Phase 200/220V | - | 12r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 150 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE15KBF | Three-Phase 200/220V | - | 120r/min | 6.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE15RA | Three-Phase 200/220V | - | 120r/min | 6.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE15RH | Three-Phase 200/220V | - | 120r/min | 6.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 15 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE180KBF | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE180RA | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE180RH | Three-Phase 200/220V | - | 10r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 180 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE18KBF | Three-Phase 200/220V | - | 100r/min | 7.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE18RA | Three-Phase 200/220V | - | 100r/min | 7.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE18RH | Three-Phase 200/220V | - | 100r/min | 7.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 18 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE25KBF | Three-Phase 200/220V | - | 72r/min | 9.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE25RA | Three-Phase 200/220V | - | 72r/min | 9.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE25RH | Three-Phase 200/220V | - | 72r/min | 9.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 25 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3.6KBF | Three-Phase 200/220V | - | 500r/min | 1.7N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3.6RA | Three-Phase 200/220V | - | 500r/min | 1.7N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3.6RH | Three-Phase 200/220V | - | 500r/min | 1.7N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3.6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE30KBF | Three-Phase 200/220V | - | 60r/min | 11.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE30RA | Three-Phase 200/220V | - | 60r/min | 11.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE30RH | Three-Phase 200/220V | - | 60r/min | 11.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 30 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE36KBF | Three-Phase 200/220V | - | 50r/min | 13.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE36RA | Three-Phase 200/220V | - | 50r/min | 13.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE36RH | Three-Phase 200/220V | - | 50r/min | 13.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 36 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3KBF | Three-Phase 200/220V | - | 600r/min | 1.4N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3RA | Three-Phase 200/220V | - | 600r/min | 1.4N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE3RH | Three-Phase 200/220V | - | 600r/min | 1.4N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 3 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE50KBF | Three-Phase 200/220V | - | 36r/min | 18.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE50RA | Three-Phase 200/220V | - | 36r/min | 18.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE50RH | Three-Phase 200/220V | - | 36r/min | 18.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 50 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE5KBF | Three-Phase 200/220V | - | 360r/min | 2.3N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE5RA | Three-Phase 200/220V | - | 360r/min | 2.3N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE5RH | Three-Phase 200/220V | - | 360r/min | 2.3N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE60KBF | Three-Phase 200/220V | - | 30r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE60RA | Three-Phase 200/220V | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE60RH | Three-Phase 200/220V | - | 30r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 60 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE6KBF | Three-Phase 200/220V | - | 300r/min | 2.8N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE6RA | Three-Phase 200/220V | - | 300r/min | 2.8N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE6RH | Three-Phase 200/220V | - | 300r/min | 2.8N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 6 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE7.5KBF | Three-Phase 200/220V | - | 240r/min | 3.5N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE7.5RA | Three-Phase 200/220V | - | 240r/min | 3.5N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE7.5RH | Three-Phase 200/220V | - | 240r/min | 3.5N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 7.5 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE75KBF | Three-Phase 200/220V | - | 24r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE75RA | Three-Phase 200/220V | - | 24r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE75RH | Three-Phase 200/220V | - | 24r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 75 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE90KBF | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE90RA | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE90RH | Three-Phase 200/220V | - | 20r/min | 20N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 90 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE9KBF | Three-Phase 200/220V | - | 200r/min | 4.2N･m | 90mm | Parallel Shaft GE-KBF Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE9RA | Three-Phase 200/220V | - | 200r/min | 4.2N･m | 90mm | Right-Angle Shaft Solid Shaft Gearhead | 9 | Lead Wire Type | 90W |
| 5IK90GE-SW2L+5GE9RH | Three-Phase 200/220V | - | 200r/min | 4.2N･m | 90mm | Right-Angle Shaft Hollow Shaft Gearhead | 9 | Lead Wire Type | 90W |
