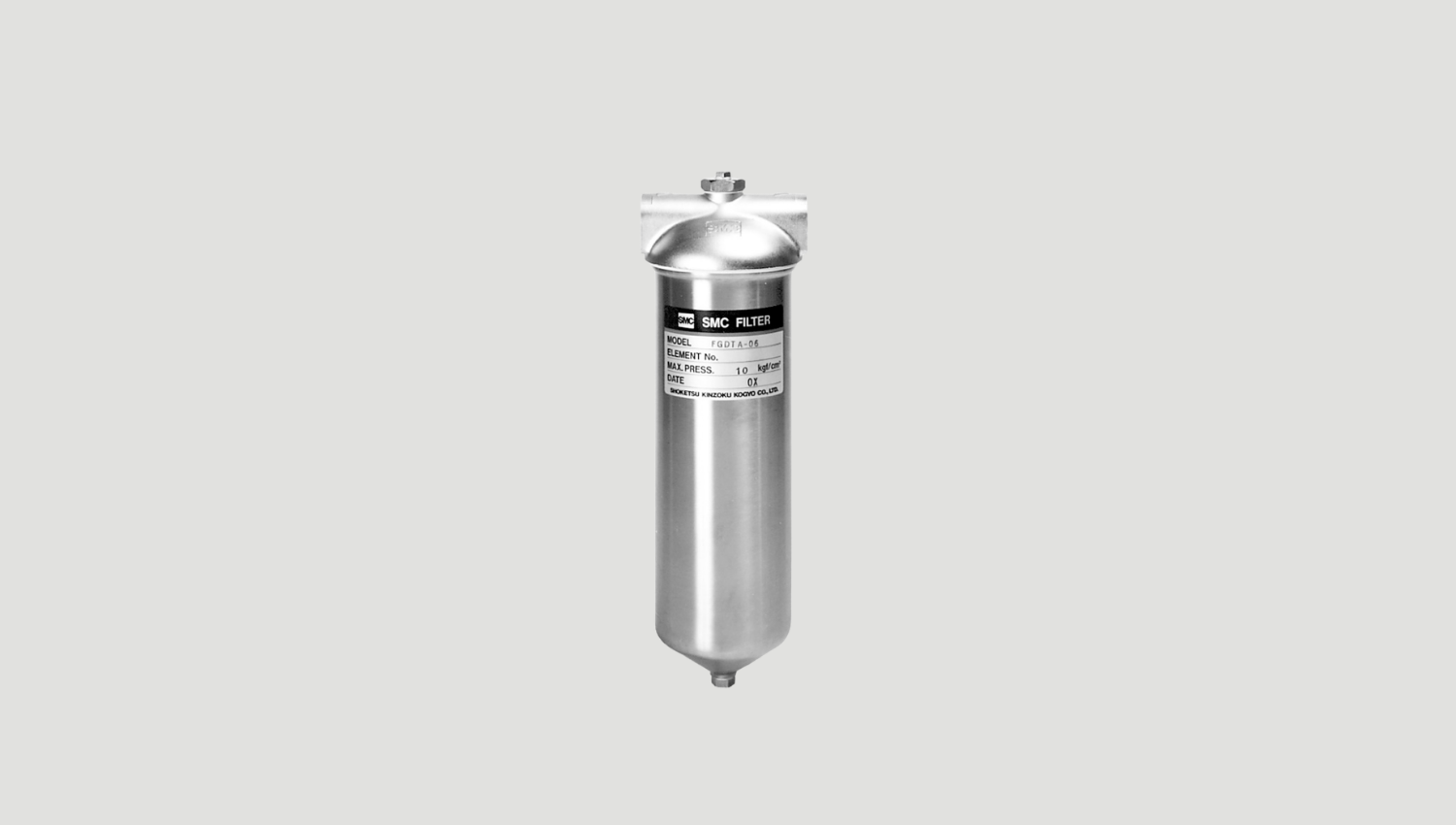

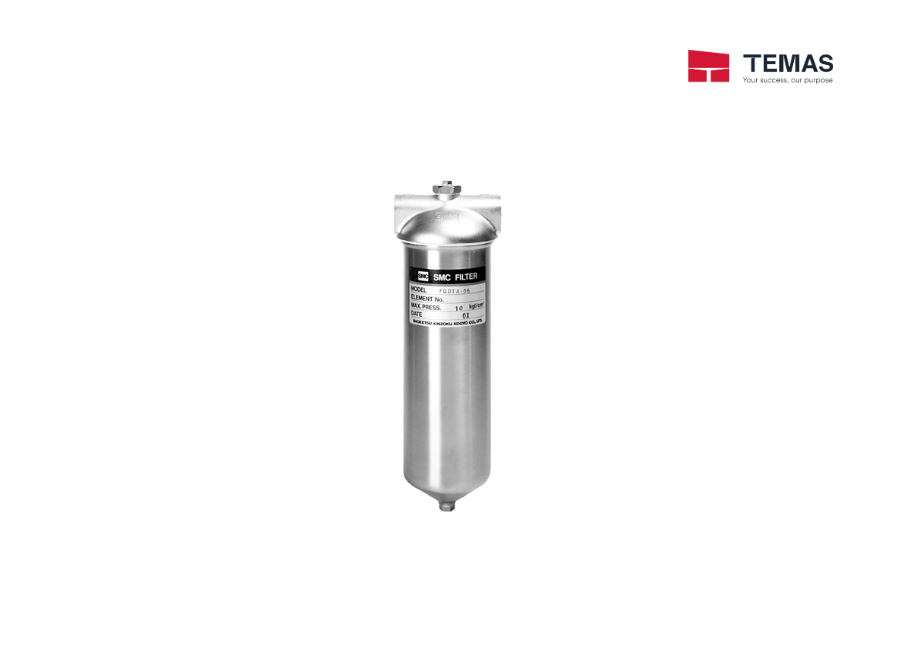

INDUSTRIAL FILTER VESSEL SERIES SMC FGD

Industrial filter vessel series SMC FGD

Technical Information

Series Port size Max. operating pressure Operating temperature (℃)
FGD Rc3/8，1/2，3/4 0.7, 1 MPa MAX. 80
Model FGDCA FGDCB FGDEA FGDEB FGDTA FGDTB FGDFA FGDFB
Port size (Rc) 3/8, 1/2, 3/4
Max. operating pressure (MPa) 0.7 1
Operating temperature (°C) 0 to 80
Number of elements 1 2 1 2 1 2 1 2
Element size ø65 to 70 x L250 ø65 to 70 x L500
(L250 x 2)		 ø65 to 70 x L250 ø65 to 70 x L500
(L250 x 2)		 ø65 to 70 x L250 ø65 to 70 x L500
(L250 x 2)		 ø65 to 70 x L250 ø65 to 70 x L500
(L250 x 2)
Main materials Cover Aluminum SCS14
Case SPCE Stainless steel 316
Gasket/O-ring NBR Fluororesin
Seal Nylon Nylon/Fluororesin Fluororesin
Weight (kg) 1.3 2.2 1.3 2.2 2.3 3.8 2.3 3.8
Internal capacity (L) 1.7 3.4 1.7 3.4 1.7 3.4 1.7 3.4
