Industrial printer s84-ex and s86-ex

INDUSTRIAL PRINTER S84-EX AND S86-EX

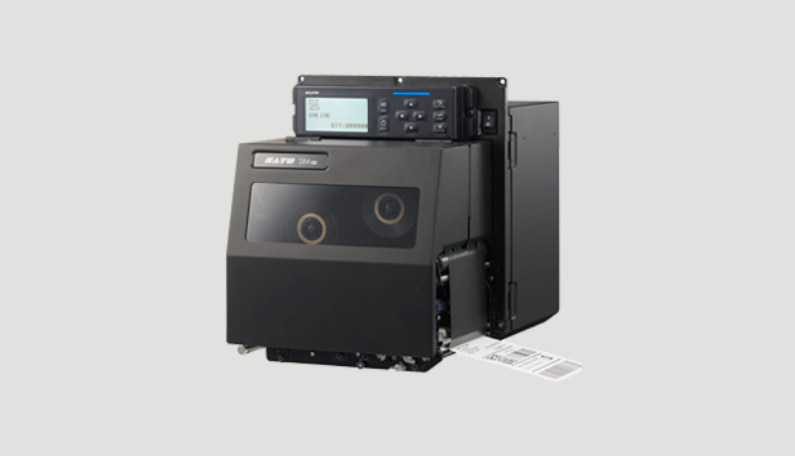

Industrial printer S84-EX and S86-EX for printing labels

INDUSTRIAL PRINTER S84-EX AND S86-EX

SATO’s new generation of high-performance S84-ex industrial printer and S86-ex industrial printer are ideal for case carton, pallet and individual product identification, print & apply many applications: part and products labels, GHS labels, GS1 labels, FDA labels, shipping labels, pallet labels, etc.

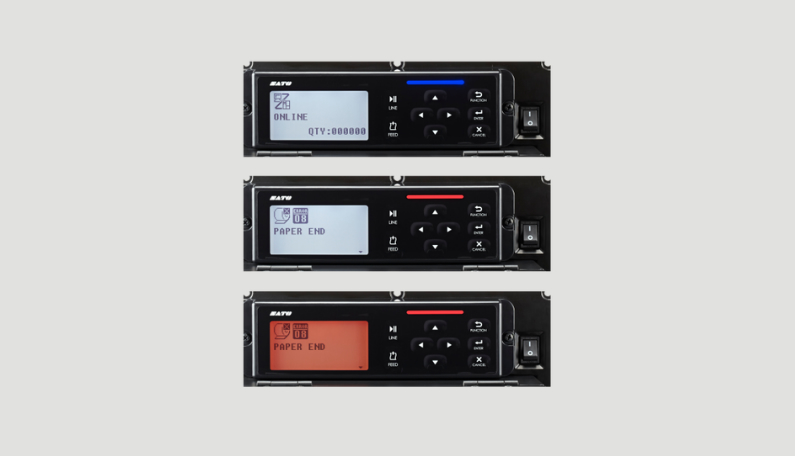

Easy to use: 2-color status LED, downloadable/uploadable printer setting, log data via SD and USB.

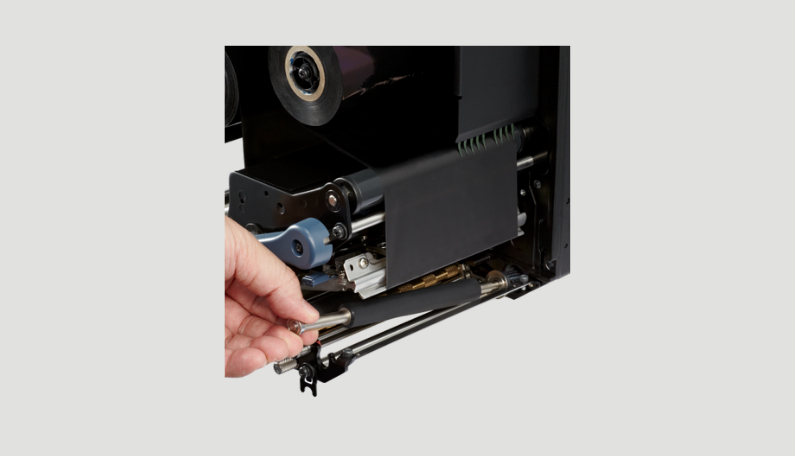

Quick maintenance: Easy roller replacement and tool-less print head and sensor cover replacement.
Enhanced connectivity: Multiple standard interfaces and emulations onboard, multiple language display language support.

download Request a quotation

Technical Information

Options:

S84: UHF RFID kit, W-LAN, Bluetooth

S86: W-LAN, Bluetooth

Printing Specification		S84-ex	S86-ex
Printing Method		Direct thermal/thermal transfer
Print Mode		Dispense, Continuos
Print Resolution		8 dots/mm (203 dpi) 12 dots/mm (305 dpi) 24 dots/mm (609 dpi)	8 dots/mm (203 dpi) 12 dots/mm (305 dpi)
Print Speed		16 ips (̣406.4 mm/sec) 14 ips (355.6 mm/sec) 6 ips (152.4 mm/sec)	14 ips (355.6 mm/sec) 12 ips (304.8 mm/sec)
Print Area	Width (mm/inch)	104.0mm (4.1")	167.5mm (6.6'')
	Length (mm/inch)	2500.0mm (98.43")	1249.0mm (49.2")
Memory		48MB ROM 64MB RAM
