Technical Information

Series No. of connecting tubes Applicable tubing O.D.
DMK 6,12 φ3.2,φ4

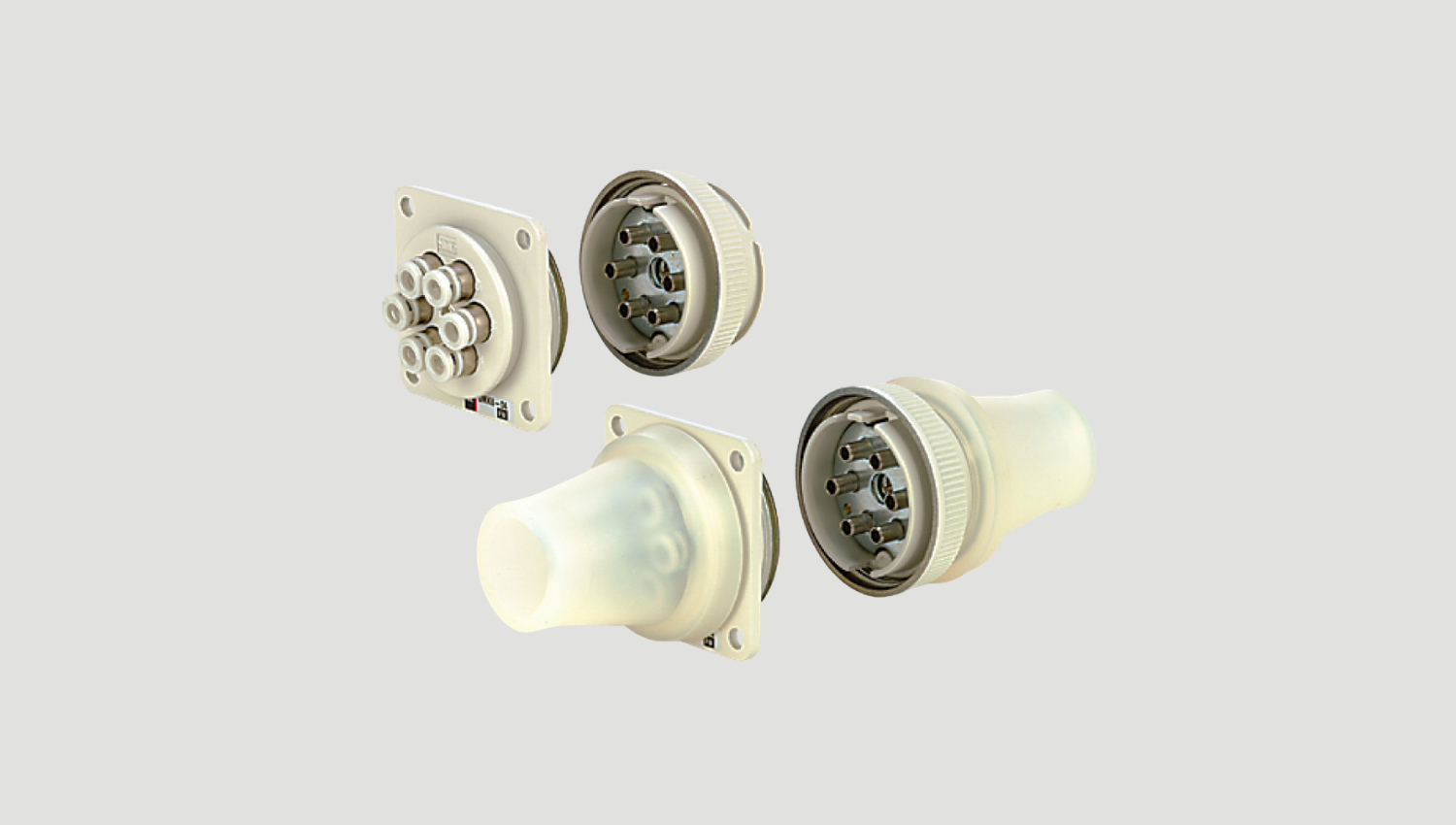

Specifications DMK
Applicable tubing materials
Nylon, Soft nylon, Polyurethane
Applicable tubing O.D. (mm) Ø3.2, Ø4
Fluid Air
Operating pressure range 0 to 1 MPa
Ambient and fluid temperature
-5 to 60°C (No freezing)
