PIPING MODULE SMC KB

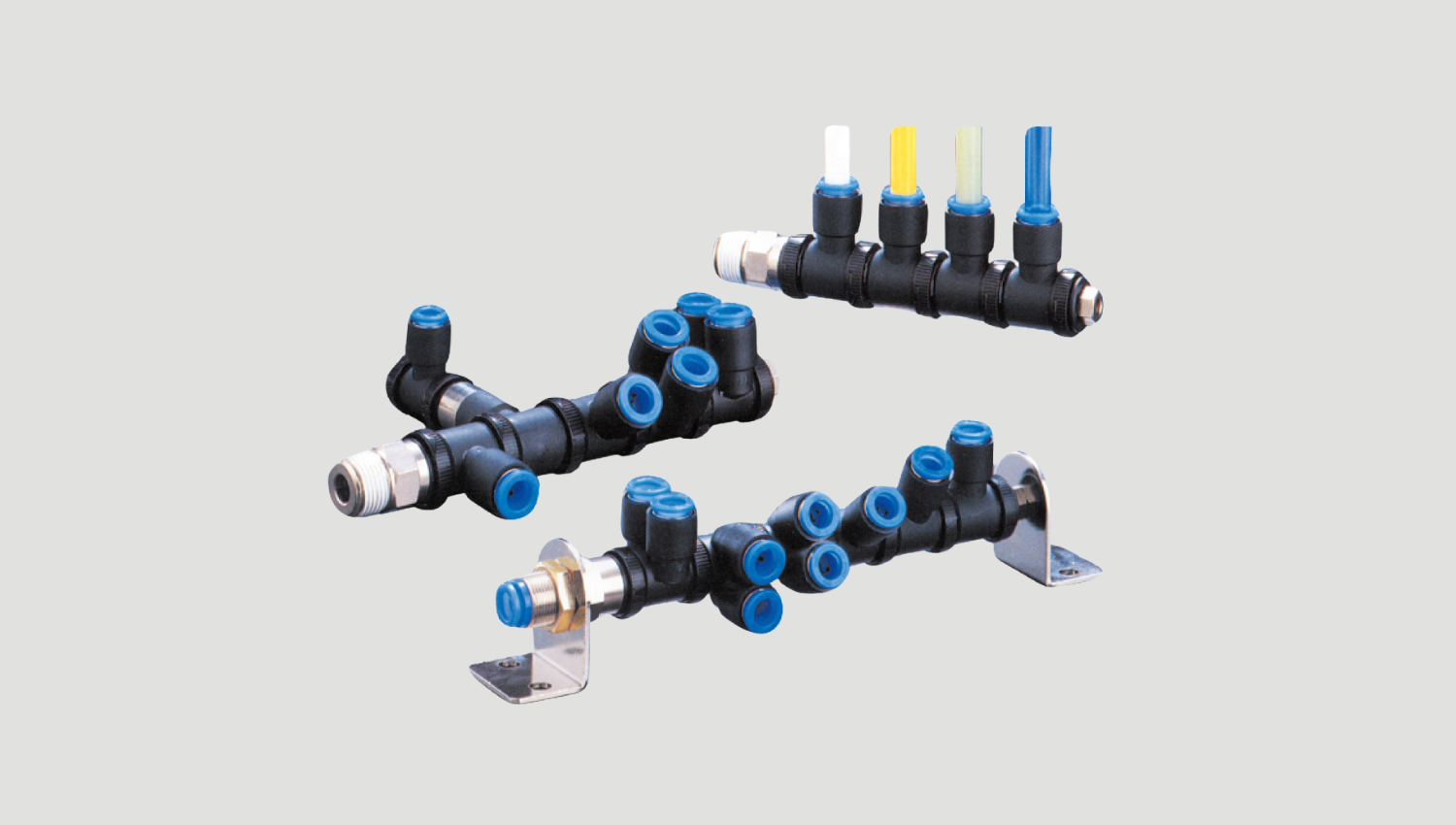

Piping Module SMC KB Series

Technical Information

Series No. of connecting tubes Applicable tubing O.D.
KB φ4，φ6，φ8，φ10，φ12，φ16 1/8，1/4，3/8，1/2
Specifications
 KB
Fluid Air
Operating pressure range
-100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature
-5 to 60°C (No freezing)
Thread Mounting section
JIS B 0203 (Taper thread for piping)
JIS B 0205 (Metric coarse thread)
Nut section
JIS B 0205 (Metric fine thread)
Seal on the threads (Standard)
With 1 thread sealant
Copper-free (Standard)
Brass parts are all electroless nickel plated
