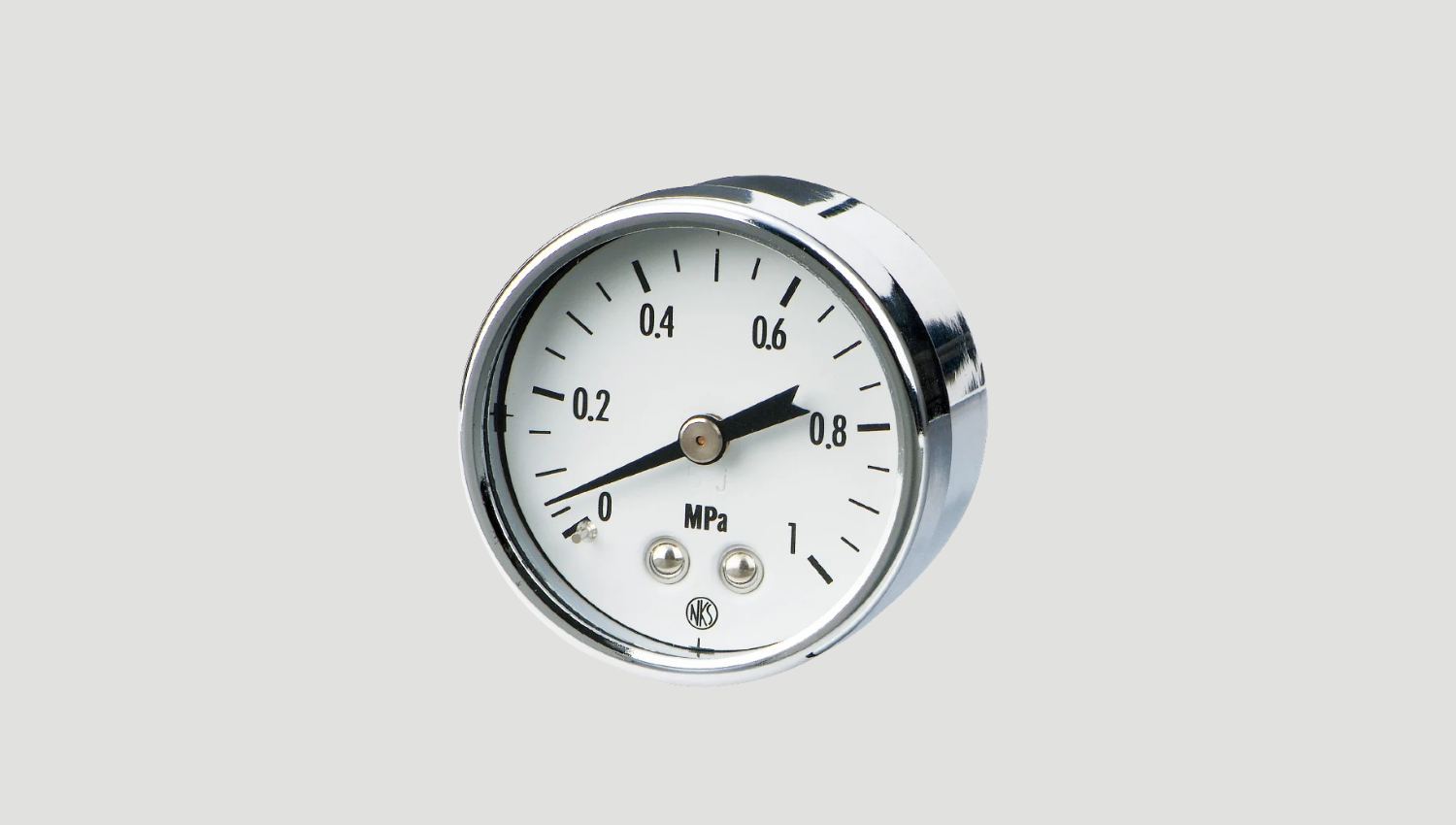

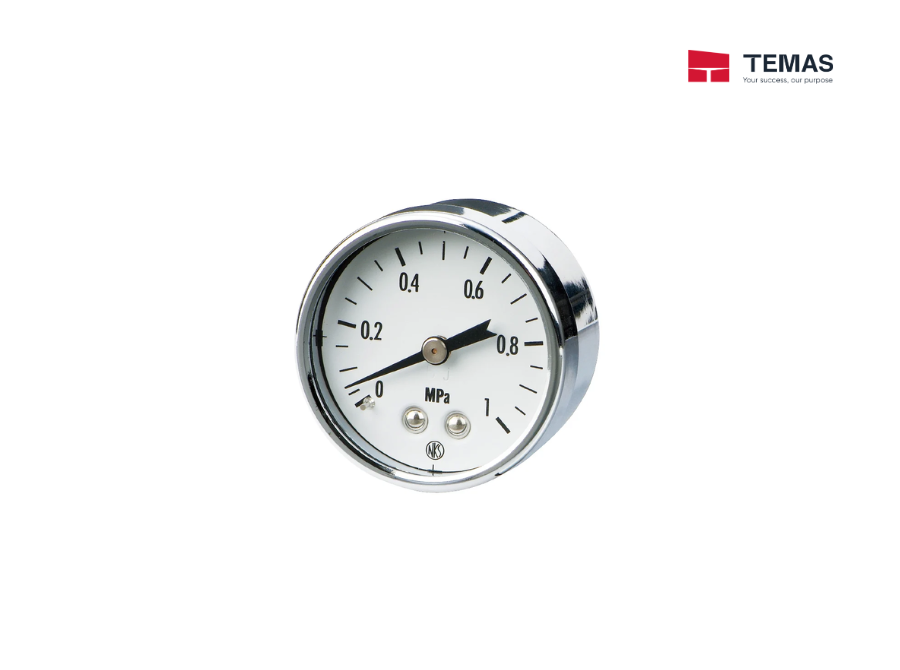

Pressure gauge for clean series smc g49 series

PRESSURE GAUGE FOR CLEAN SERIES SMC G49 SERIES

Pressure Gauge for Clean Series (10- Series) G49

Technical Information

Series	Size (O.D.)	Connection thread
G49	φ44	R1/4

Model		G49
Type		Back side thread
Port size		R1/8, 1/4
Fluid		Air
Indication precision		±3% F.S. (Full span)
Material	Case (Surface treatment)	Zinc die-casted (Chromate plated)
	Clear cover	Glass
	Stud (Surface treatment)	Brass (Nickel plated for external parts only)
	Bourdon tube	Brass
Weight (kg)		0.095
