PRESSURE GAUGE FOR GENERAL PURPOSES G□

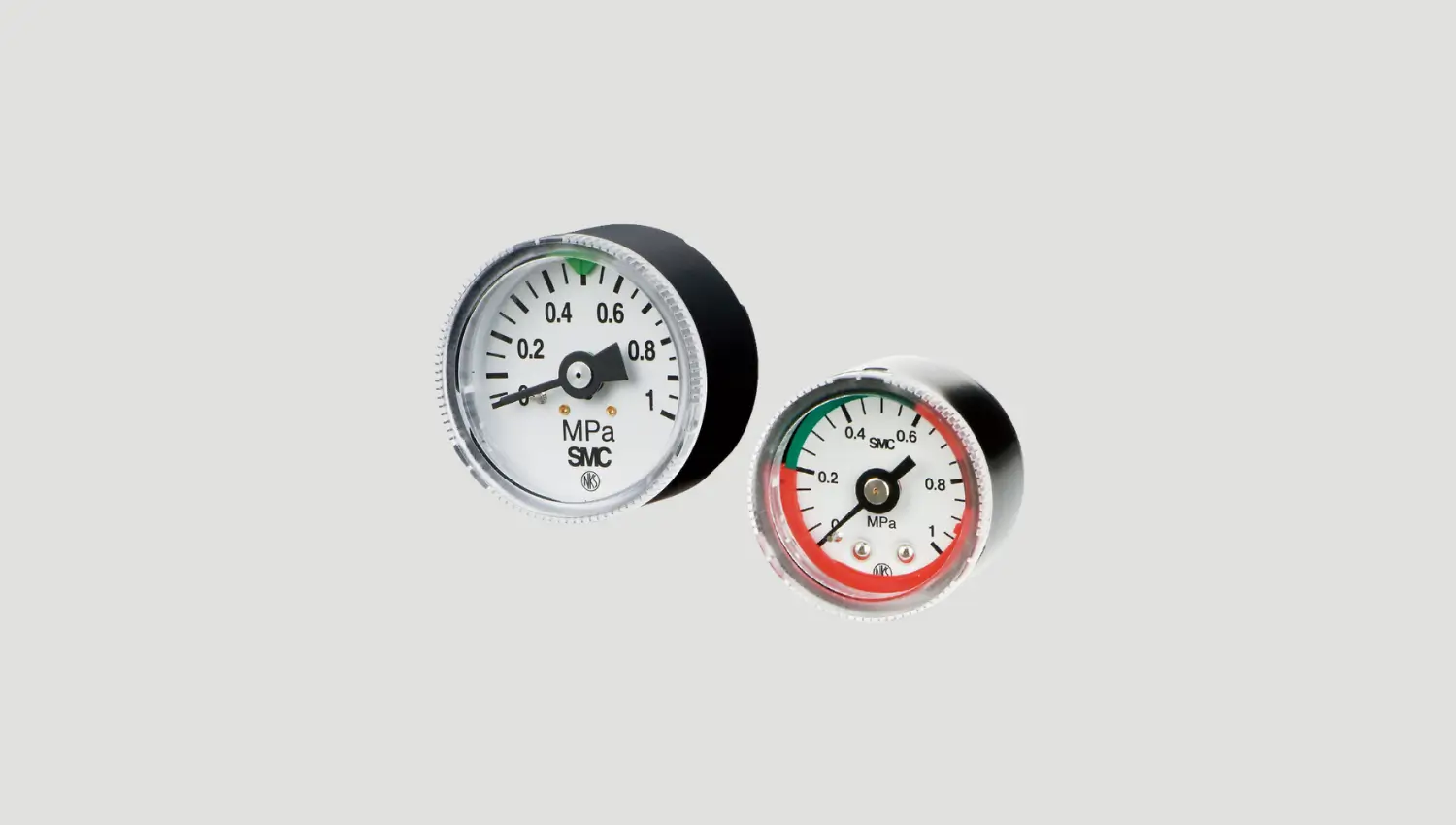

Pressure Gauge for General Purposes SMC G series

Model: G15, G27, G36, GA36, G46, GA46, G33, GA33, G43, G36-L, G46-L, G53-L, G63-L

Technical Information

Series Size (O.D.) Connection thread
G15 φ15 R1/8, M5 (Female thread)
G27 φ27 R1/8, 1/16
G36 φ37.5 R1/8, M5 (Female thread)
GA36 φ37.5 R1/8
G46 φ42.5 R1/8, 1/4, M5 (Female thread)
GA46 φ42.5 R1/8, 1/4
G33 φ30 R1/8
GA33 φ30 R1/8
G43 φ43 R1/8, 1/4
G36-L φ37.5 R1/8
G46-L φ42.5 R1/8,1/4
G53-L φ51.4 R1/8,1/4
G63-L φ63.4 R1/8,1/4
Model G15  G27
Type Back side thread
Port size (1) R 1/8 : M5 (Female thread) R 1/16
Fluid (2) (3) Air
Indication precision (4) ±5% F.S. (Full span)
Material Case (Surface treatment) Zinc die-casted (Black graphite coated)
Clear cover Polycarbonate
Stud (Surface treatment) Zinc die-casted (Black graphite coated)
Bourdon tube Brass
Weight (kg) 0.01 0.015
