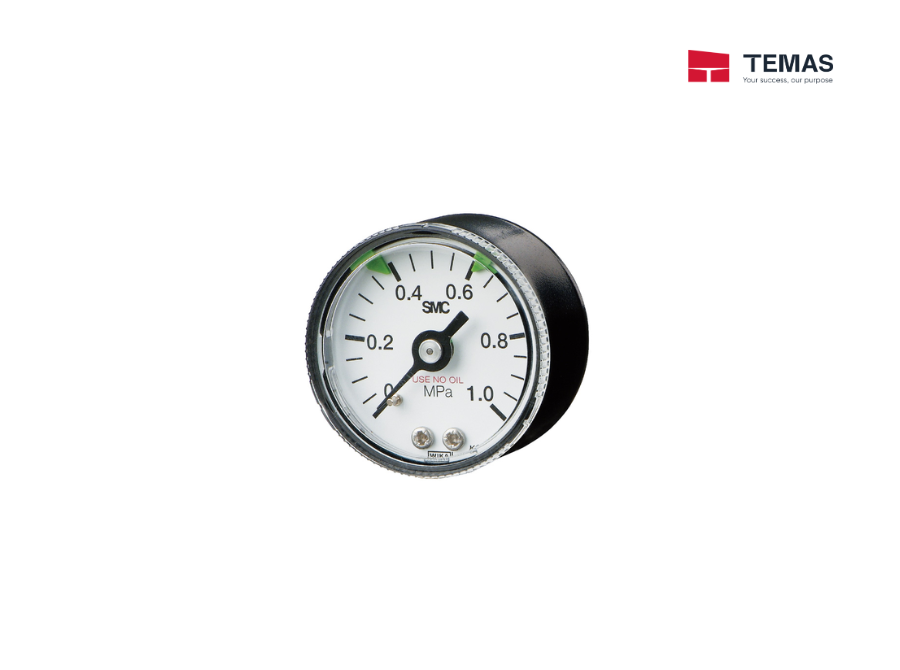

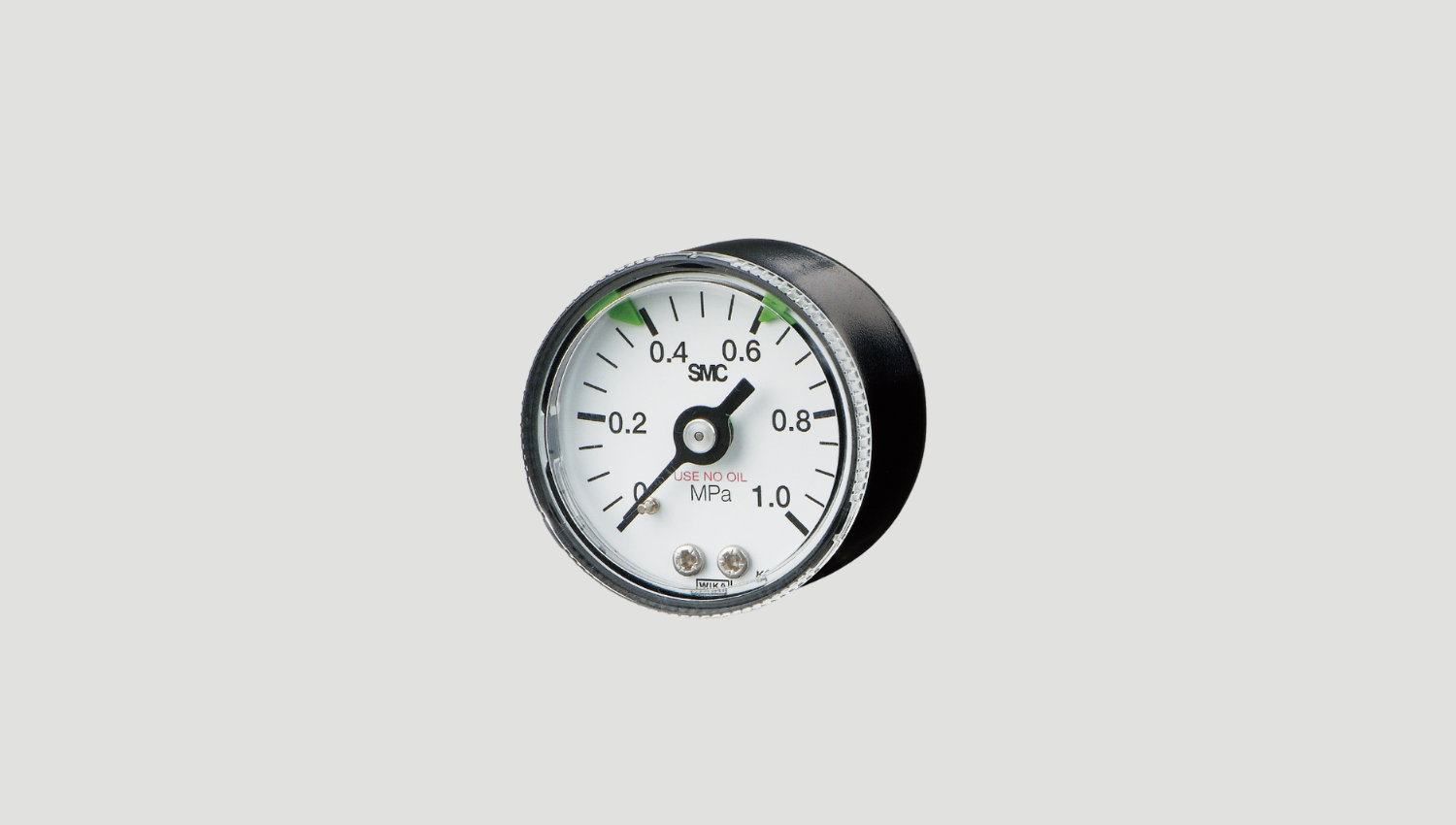

| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G46-□-□-SRA,B | φ42.5 | R1/8，1/4 |
| Specifications | G46-□-SRA | G46-□-SRB | |
|---|---|---|---|
| Type | Back side thread | ||
| Port size | R 1/8 , R 1/4 | ||
| Fluid | Air, Water | Air, Water | |
| Indication precision | ±3% F.S. (Full span) | ||
| Fluid contact part cleaning | Precision cleaning | General degreasing | |
| Assembly/environment | Clean room M5.5 (Class 10000) |
General production line | |
| Oil/Water free | Oil/Water free | ||
| Material | Case | Stainless steel 304 (Black melamine painted) |
|
| Clear cover (Surface treatment) |
Polycarbonate (Hard coated) Part no.: G46-00-00-2 | ||
| Stud | Stainless steel 316 | ||
| Bourdon tube | Stainless steel 316 | ||
| Attachment: With cover ring assembly |
C | Part no.: 1305104-6A | |
| C2 | Part no.: 1305104-12A | ||
| Packaging | • Polyethylene cap for stud parts. • Airtight polyethylene bag |
• Polyethylene cap for stud parts. • Polyethylene bag |
|
| Weight (kg) | 0.085 | 0.085 | |
