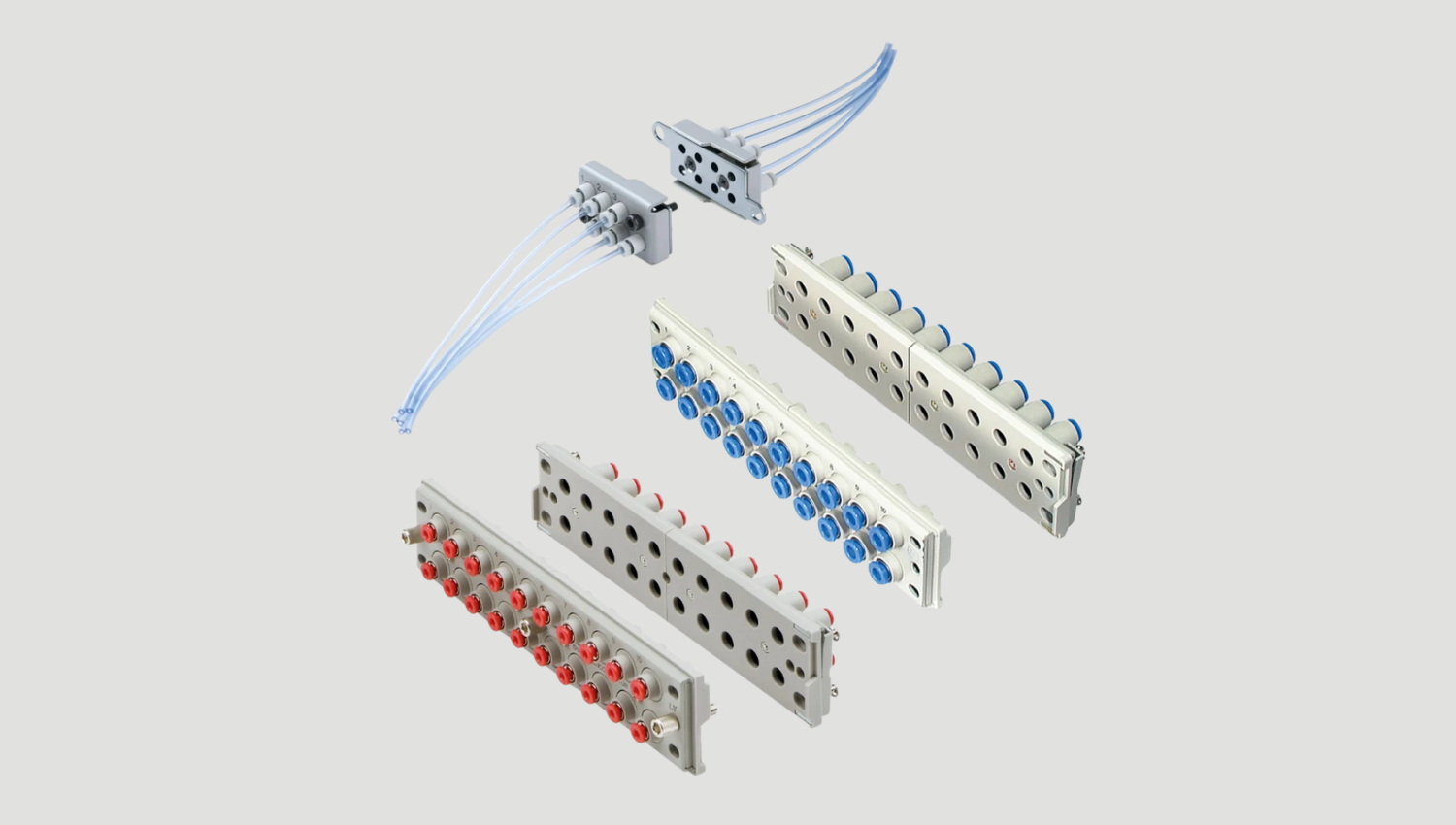

RECTANGULAR MULTI-CONNECTOR SMC KDM

Rectangular Multi-connector SMC KDM Series No. of Connecting Tubes: 10, 20

Technical Information

Series No. of connecting tubes Size Applicable tubing O.D.
KDM6 (-X955) 6 Metric φ2
KDM 10，20 Metric φ3.2，φ4，φ6，φ8
KDM 10，20 Inch φ1/8，φ5/32，φ1/4，φ5/16
Specifications KDM
Fluid Air
Operating pressure range –100 kPa to 1 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature
-5 to 60°C (No freezing)
