S COUPLERS SMC KK130

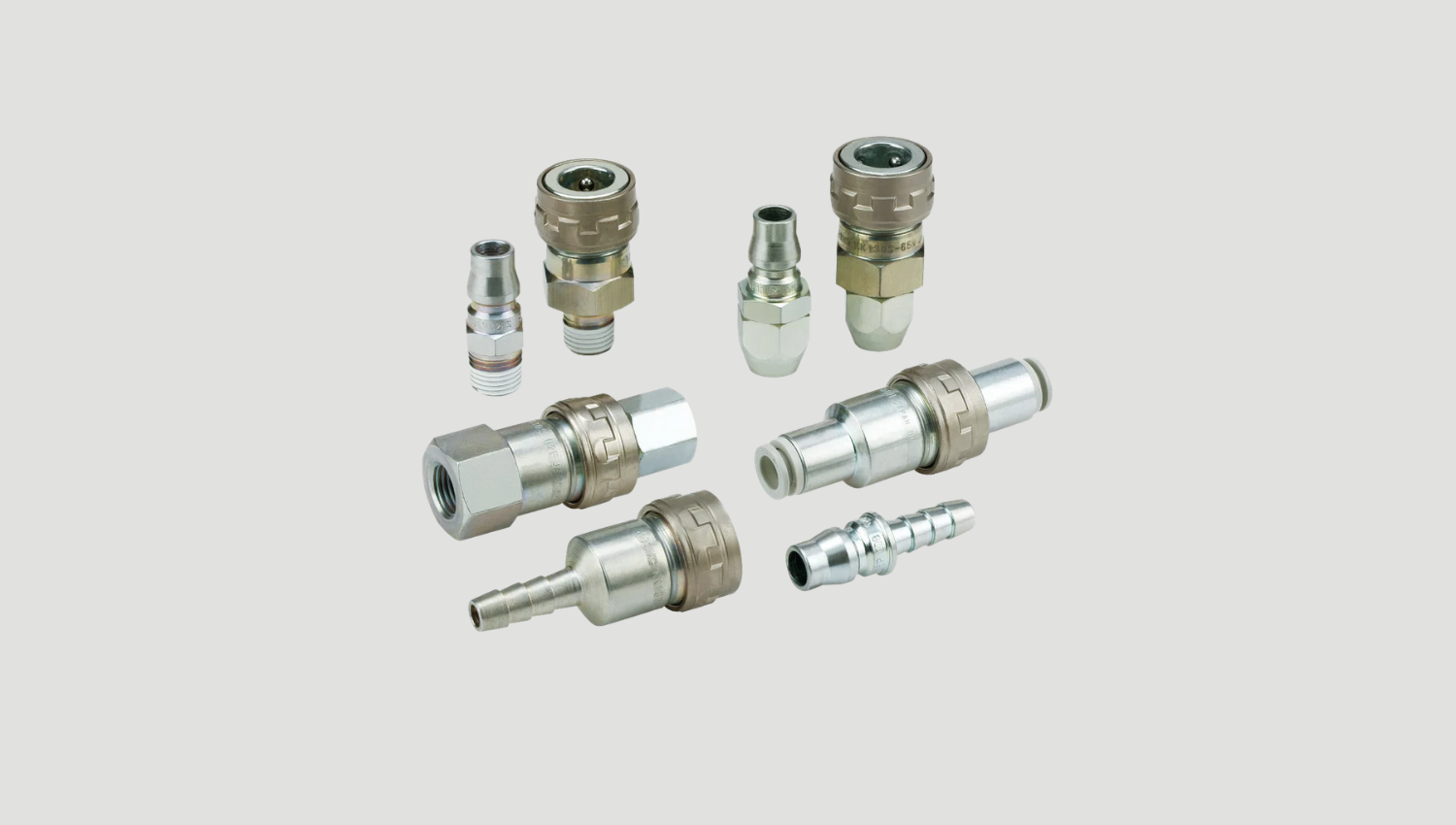

S Couplers SMC KK130 Series

Technical Information

Series Applicable tubing O.D. Connection thread
KK130 φ4，φ6，φ8，φ10，φ12 M5×0.8，1/8，1/4，3/8，1/2
Specifications KK130
Fluid Air
Operating pressure range 0 to 1.5 MPa
One-touch fitting type: 0 to 1.0 MPa
Proof pressure 2.0 MPa
Ambient and fluid temperature −20 to 80°C (No freezing)
One-touch fitting type: −5 to 60°C (No freezing)
Plating Sleeve: Electroless nickel plated
Other external metal parts: Zinc chromated
Sealant Male thread with sealant
