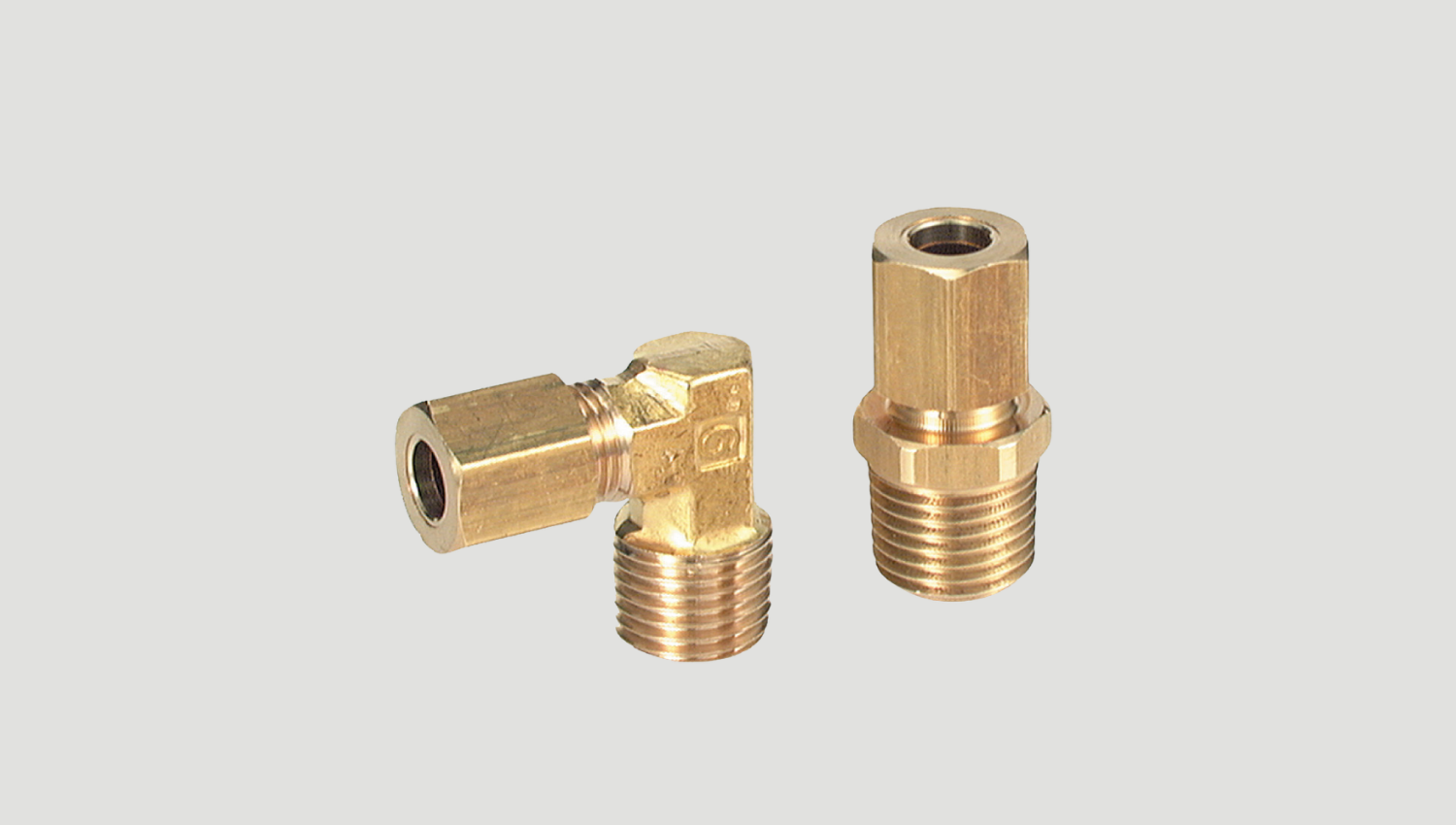

SELF-ALIGN FITTINGS SMC H, DL, L, LL

Self-align Fittings SMC H, DL, L, LL

Technical Information

Series Applicable tubing O.D. Connection thread
H φ4，φ6，φ8，φ10，φ12 1/8，1/4，3/8，1/2
DL φ4，φ6，φ8，φ10，φ12 1/8，1/4，3/8，1/2
L φ4，φ6，φ8，φ10，φ12 1/8，1/4，3/8，1/2
LL φ4，φ6，φ8，φ10，φ12 1/8，1/4，3/8，1/2
Specifications

H DL L LL
Applicable tubing material
 Nylon, Soft nylon
Polyurethane (Mounting the inner sleeve) Note 1)
Soft copper steel pipe (C1220T-0)
Applicable tubing (O.D. / I.D.)
 ø4, ø6, ø8, ø10, ø12
Max. operating pressure
 1 MPa
Proof pressure 10 MPa
Ambient and fluid temperature
 –5 to 60°C (No freezing)
Thread Mounting section JIS B 0203 (Taper thread for piping)
Nut section JIS B 0205 (Metric fine thread)
Seal on the threads
 None or with sealant
