SPEED CONTROLLER WITH UNI ONE-TOUCH FITTINGS SMC AS

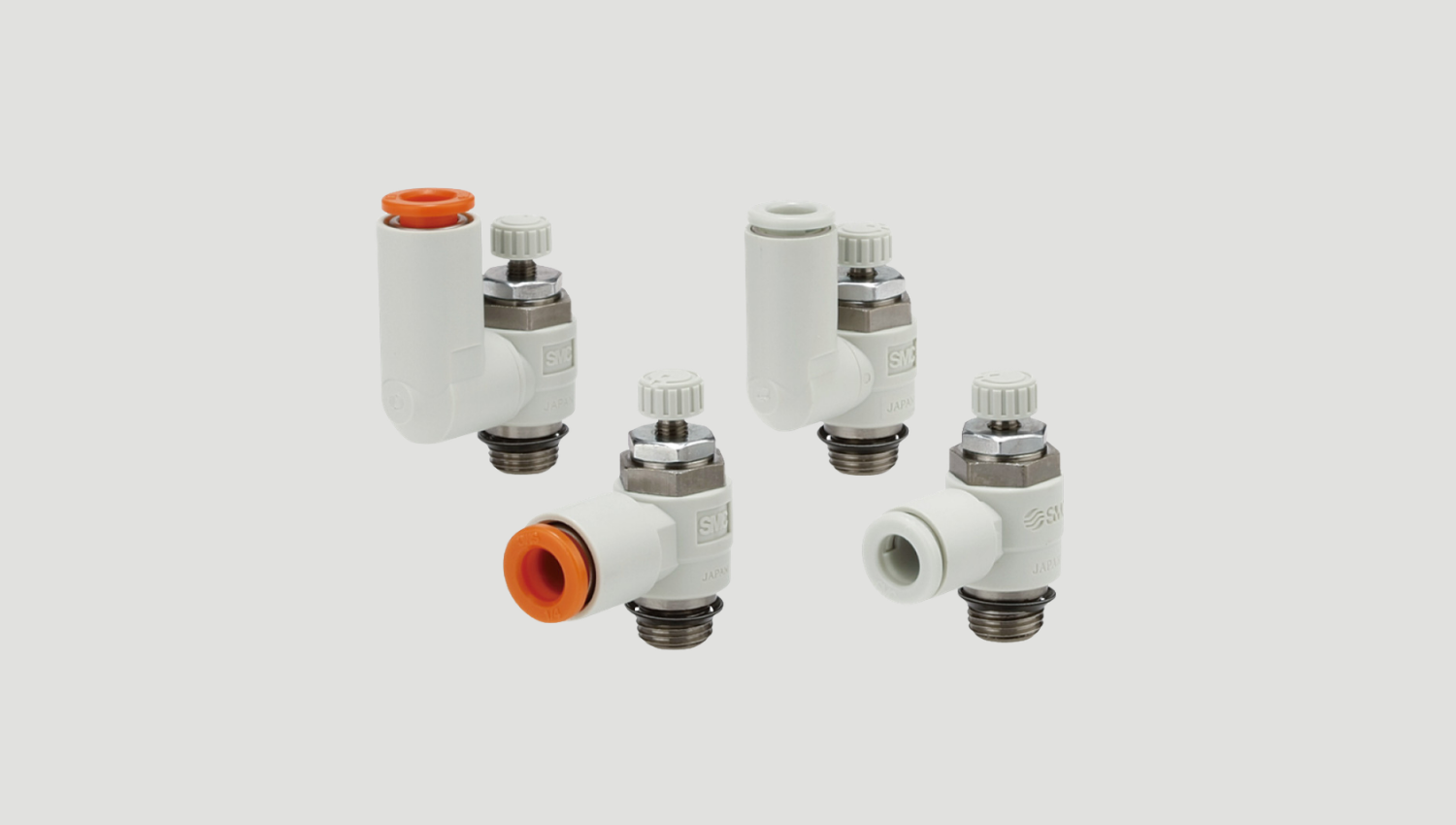

Speed Controller with Uni One-touch Fittings AS

Technical Information

Type Series Port size
on the
cylinder side		 Applicable tubing O.D.
Metric size		 Applicable tubing O.D.
Inch size
With
Uni One-touch
fitting		 AS□□□1F-U□ 1/8 to 1/2 φ3.2 to φ12 φ1/8'' to φ1/2''
AS-FS
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperatures -5 to 60°C (No freezing)
Applicable tubing material Nylon, Soft nylon, Polyurethane
Mounting thread
 Uni-thread
Thread seal Gasket
Option Round lock nut, Electroless nickel plated
