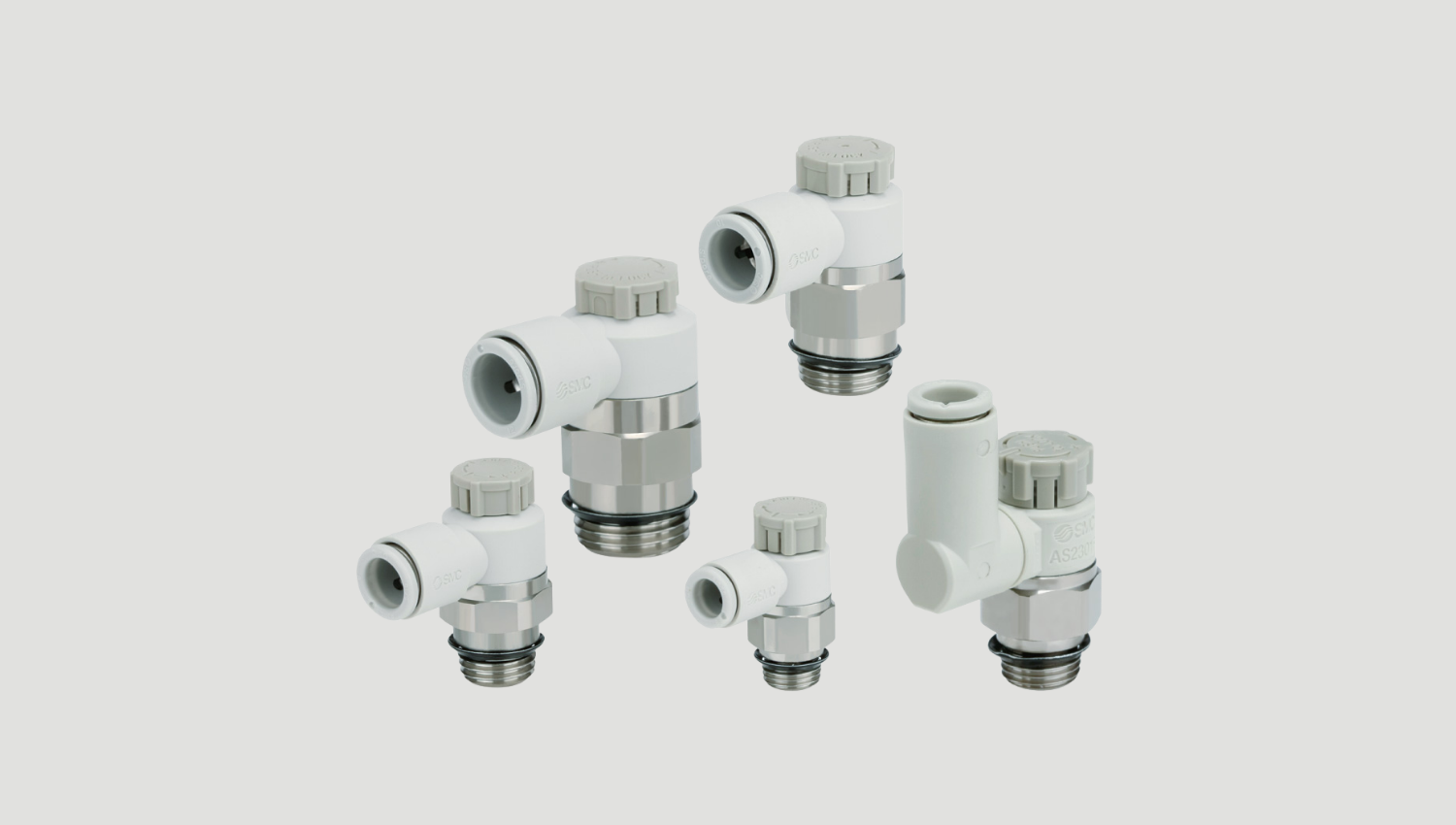

SPEED CONTROLLERS ELBOW TYPE UNIVERSAL TYPE PUSH-LOCK TYPE SMC AS

Uni Elbow Type, Universal Type, Push-lock Type AS

Technical Information

Type Series Port size
on the
cylinder side		 Applicable tubing O.D.
Metric size		 Applicable tubing O.D.
Inch size
Elbow type
Uni thread		 AS22□1F to 42□1F Uni 1/8 to 1/2 φ3.2 to φ16 φ1/8'' to φ1/2''
Universal type
Uni thread		 AS23□1F to 43□1F Uni 1/8 to 1/2 φ3.2 to φ12 φ1/8'' to φ1/2''
AS
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperatures -5 to 60°C (No freezing)
Applicable tubing material Nylon, Soft nylon, Polyurethane
