STAINLESS STEEL 316 ONE-TOUCH FITTINGS SMC KQG2

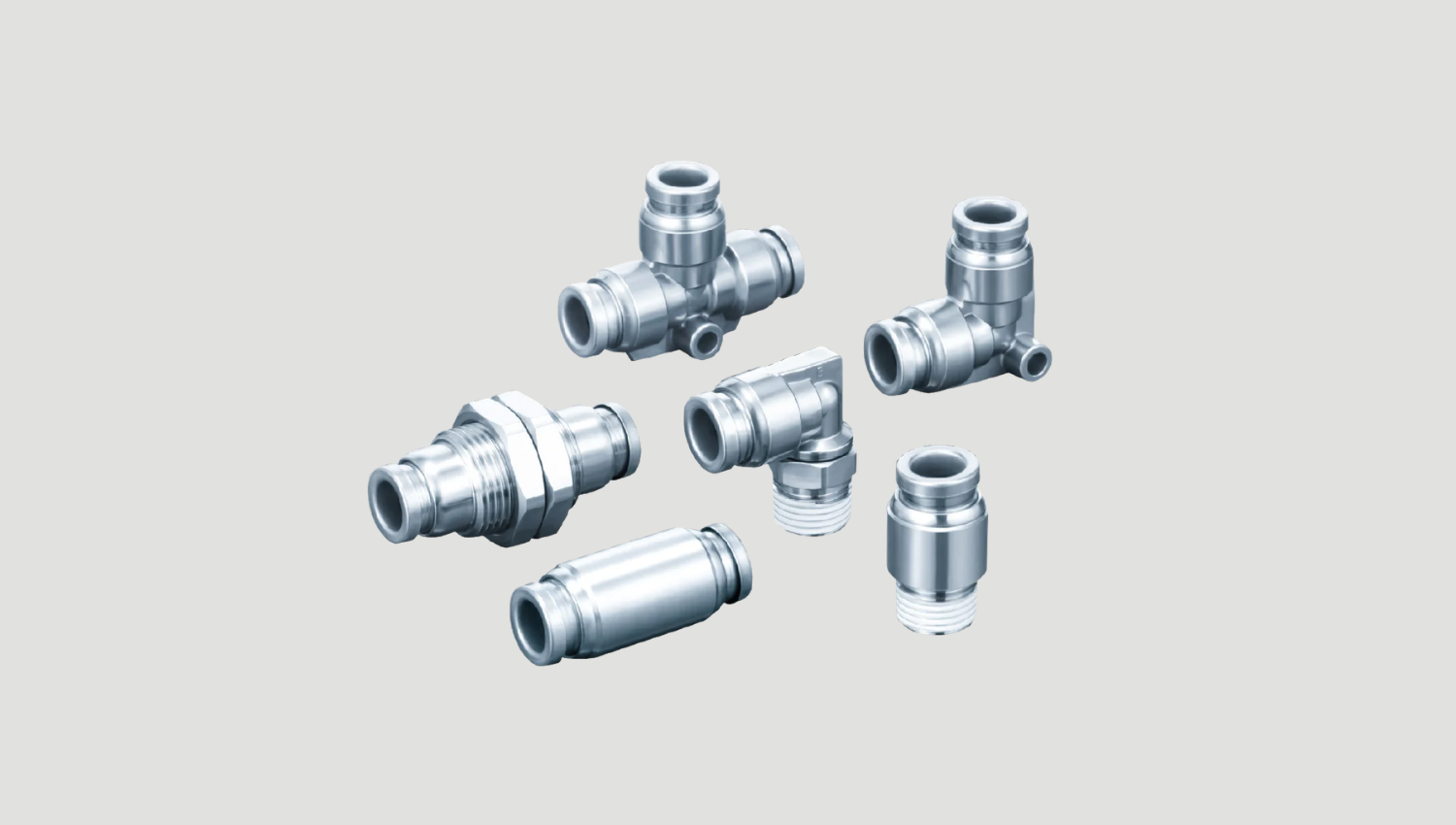

Stainless Steel 316 One-touch Fittings SMC KQG2 Series

Technical Information

Series Size Applicable tubing O.D. Connection thread
KQG2 Metric φ3.2，φ4，φ6，φ8，φ10，
φ12，φ16		 M5
R，Rc 1/8，1/4，3/8，1/2
KQG2 Inch φ1/8''，φ5/32''，φ1/4''，φ5/16''，
φ3/8''，φ1/2''		 UNF10-32
NPT1/8，1/4，3/8，1/2
Specifications KQG2
Fluid
Air, N2, Water, Steam
Operating pressure range
-100 kPa to 1 MPa
Proof pressure 3.0 MPa
Ambient and fluid temperature
-5 to 150°C (No freezing)
Lubricant
Grease-free specification
Seal on the threads With sealant
