Technical Information

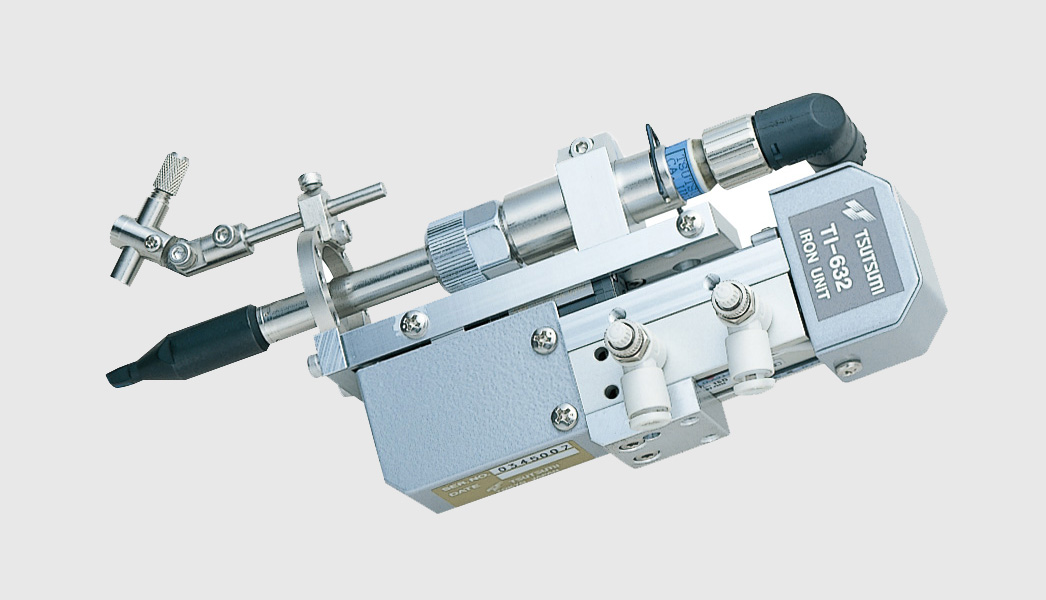

Model No. TI-632
Weight 0.4Kg(Excludes soldering tip and Heater)
Drive method Direct dynamic cylinder
Stroke 15mm stroke
Soldering tip used TKN or TKH type
Heater used TH-6-70-100 ( Ceramic heater)
Optional parts IRON Holding Arm
· for point soldering TR-621
Ruby nozzle(TNZ3-□□□)*It is a nozzle with being highly efficient for carrying out wire solder to the tip
(Note) Since Heater/TH-6-70-100 and CA unit (Thermo-couple)/TCA-16 are not attached to the "IRON UNIT", it is necessary to purchase separately.
